Modular Gyms
Four-Module Single-Storey Modular Gym

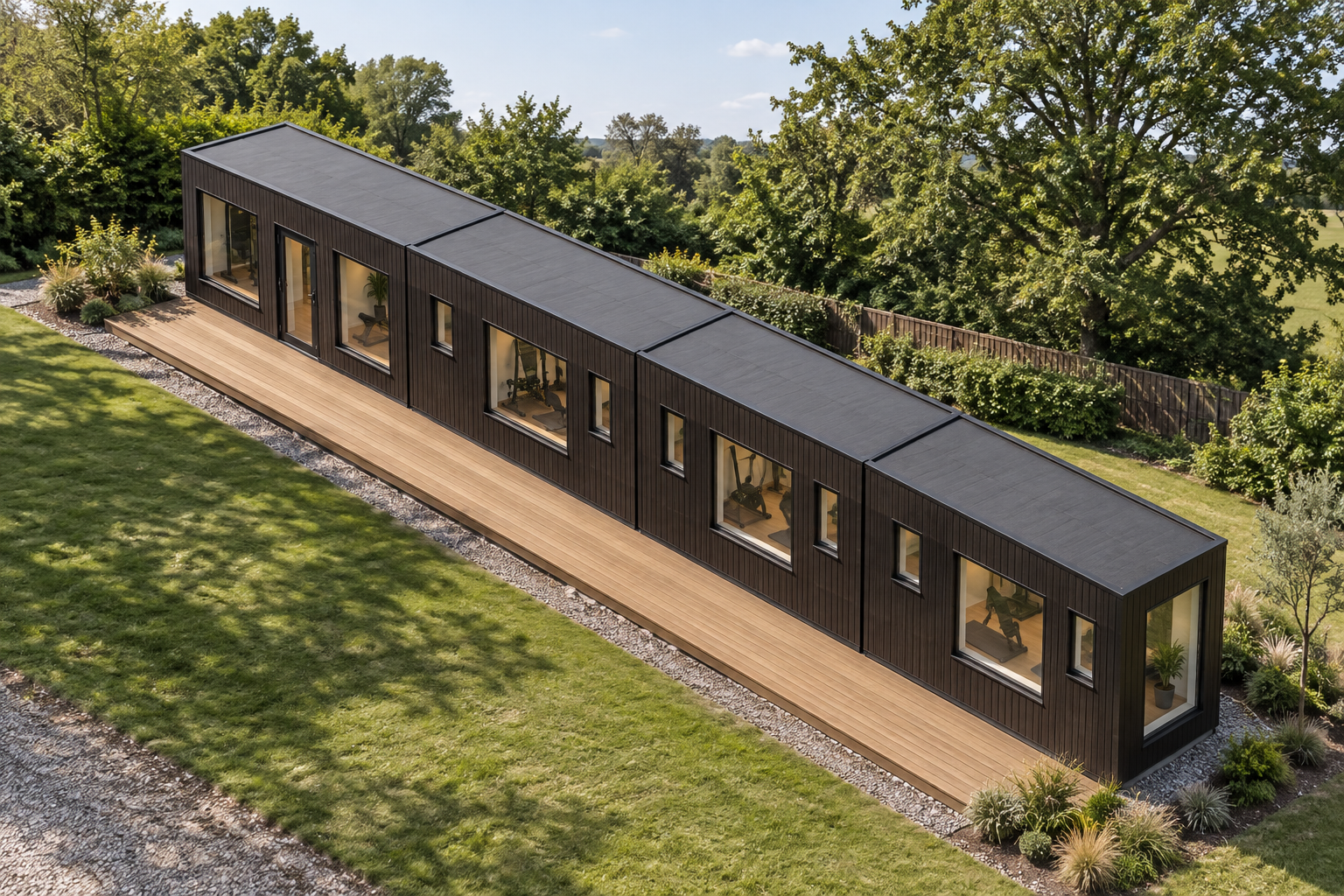

This single-storey modular gym combines four linked P600 modules in a 23.6m-long run with a covered timber terrace. It suits home gym owners and small personal-training studios seeking a dedicated training space with a requested WC and shower.
£57,360ex VAT
£68,832 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Approx. usable internal area
- 45.6 m² before partitions
- External dimensions
- 23.6m x 2.2m footprint
Design highlights
- Four linked P600 modules in a single-storey run
- 23.6m x 2.2m external footprint
- Approx. 45.6 m² usable internal area before partitions
- Venge ARLINE AR14514 vertical fine-ribbed cladding
- Multiple small, large and full-size windows
- Single glazed entrance door and covered timber terrace
- Requested WC and shower fit-out
Four linked modules in a linear layout
This P600 configuration uses four steel-framed modules linked end to end in a single-storey run. Each module measures 5.9m x 2.2m, creating an overall external footprint of 23.6m x 2.2m. The modules are 2.40m high externally, with an internal ceiling height of 2.16m. Each has an approximate usable interior of 5.7m x 2.0m.
The building provides approximately 45.6 m² of usable internal area before partitions, based on a conservative per-module allowance. A connected open layout may provide more usable space, depending on the final internal arrangement. Designed for the Sport & Leisure sector, this configuration is suited to the requirements described for modular gyms, including private home gyms and compact personal-training studios.
Window and door arrangement
Module 1 forms the western end of the run. Its north wall has a small window, a large window and a second small window. The south wall has two large windows positioned with a single glazed door, while the west end wall has a full-size window.
- Module 2: small, large and small windows on both the north and south walls.
- Module 3: small, large and small windows on both the north and south walls.
- Module 4: small, large and small windows on both long walls, plus a full-size window on the east end.
A covered, ground-level timber terrace deck runs alongside the building, providing an external area adjacent to the gym. Its relationship with the glazed door and final site levels is confirmed as part of the project layout and quotation.
Venge cladding and flat roof
All exposed outside walls selected in this configuration use ARLINE AR14514 fine-ribbed cladding in Venge. The vertical boards are applied between the steel frame. This finish covers the north and south walls of all four modules, the west end wall of Module 1 and the east end wall of Module 4.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified. Final colours, interfaces and visible finishing details are confirmed by quotation rather than assumed from illustrations. The stored arrangement can be reviewed through the building configurator.
Requested WC and shower fit-out
A WC and shower are requested, but their positions and partition layout remain subject to confirmation in the final plan. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels available as an optional finish. The shower area uses wet-room PVC flooring. If selected, plaster is applied outside the bathroom walls.
Elsewhere, insulated sandwich panels are the included internal wall finish. Any other wall or floor finishes are selected to suit the confirmed room layout and quotation; illustrated finishes should not be treated as guaranteed components of this configuration.
Estimate and site requirements
The indicative configured estimate is £57,360 excluding VAT, or £68,832 including VAT, subject to quotation. Transport is priced separately according to the destination postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Positioning, access, levels and site conditions remain subject to survey. The survey and quotation establish the practical siting requirements for the 23.6m x 2.2m footprint, the covered terrace and any project-specific works.
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 45.6 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR14514 fine-ribbed applied to exposed walls between the frame in Venge. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 South wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 West wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 North wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 South wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 North wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 South wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 4 North wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 4 East wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 4 South wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; south (5.9m side): Large window + Glazed door (single) + Large window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; south (5.9m side): Small window + Large window + Small window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; south (5.9m side): Small window + Large window + Small window. Module 4 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; east (2.2m end): Full-size window; south (5.9m side): Small window + Large window + Small window. Covered ground-level timber terrace deck alongside the building. Requested fit-out to confirm in the final layout: WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
