Five-Module P600 Modular Gym

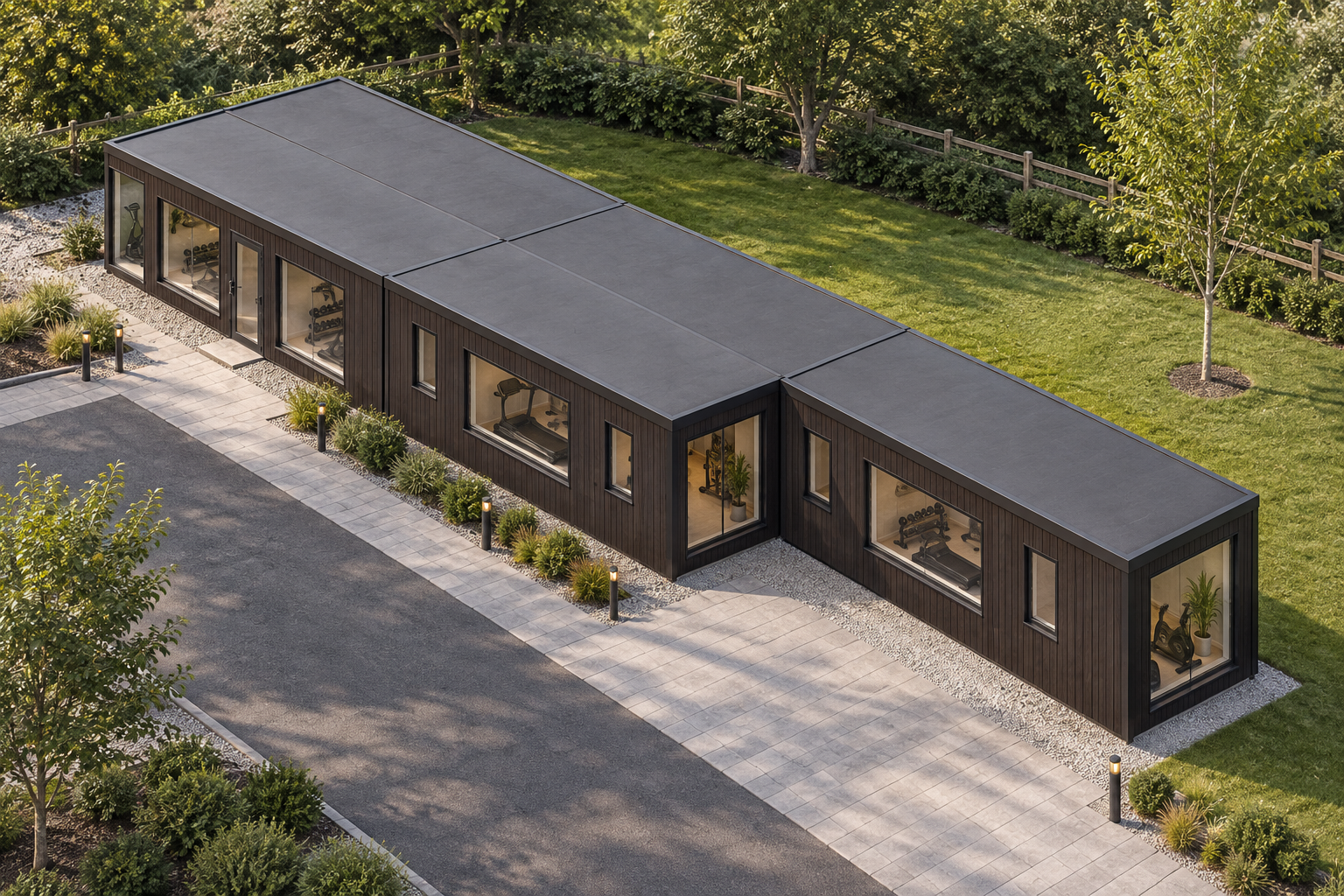

This single-storey modular gym combines five P600 modules in a grid layout with a 17.7m x 4.4m external footprint. It is designed for home gym owners and small personal-training studios seeking a dedicated training space with a requested WC and shower.
£67,700ex VAT
£81,240 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 5
- Storeys
- 1
- Approx. usable internal area
- 57 m² before partitions
- External dimensions
- 17.7m x 4.4m footprint
Design highlights
- Five P600 steel-framed modules over one storey
- 17.7m x 4.4m external grid footprint
- Approximately 57 m² usable internal area before partitions
- Multiple large, small and full-size windows
- Single glazed entrance door to Module 1
- Venge ARLINE AR14514 fine-ribbed external cladding
- Requested WC and wet-room shower fit-out
Five-module grid configuration
This P600 configuration uses five steel-framed modules arranged over a single storey within a 17.7m x 4.4m external footprint. Each module measures 5.9m x 2.2m, is 2.40m high externally and has a 2.16m internal ceiling. The approximate usable interior of each module is 5.7m x 2.0m.
Using a conservative per-module allowance, the building provides approximately 57 m² of usable internal area before partitions. Connected open layouts may provide more usable space, depending on the final internal arrangement. The design is intended as a modular gym for home training or a small personal-training studio.
Windows and entrance
Module 1 has two large windows and a single glazed door on its north side, plus a full-size window on its west end. Module 2 has a small, large and small window sequence on its north side. Module 3 repeats that sequence on both its north and south sides and includes a full-size window on its east end.
Module 4 has a small, large and small window sequence on its south side, together with a full-size window on its west end. Module 5 also uses the small, large and small window sequence on its south side and has a full-size window on its east end. These openings form part of this stored configuration rather than a generic P600 specification.
Selected exterior
The exposed external walls are finished with ARLINE AR14514 fine-ribbed cladding in Venge, applied between the steel frame. The selected full-wall cladding uses vertical boards on the specified north, south, east and west elevations of the five-module arrangement. Cladding costs are confirmed within the project quotation and are not separately itemised here.
Above, the building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is selected for this configuration.
Requested shower and WC fit-out
A WC and shower are requested for confirmation in the final room layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, while hygienic panels are an optional selection. Shower rooms use wet-room PVC flooring. Where selected, plaster can be applied outside the bathroom walls.
Elsewhere, insulated sandwich panels are the included internal wall finish. Any alternative wall treatments, floor finishes or room divisions are selected to suit the confirmed gym layout. Final positions, fixtures and finishes are established through the quotation rather than assumed from illustrations.
Estimate and site requirements
The indicative configured estimate is £67,700 excluding VAT, or £81,240 including VAT, subject to quotation. Transport is priced separately according to the site postcode and access. Offloading or cranage, groundworks and other site-specific works are also separate.
Siting remains subject to a site survey and assessment of access, levels and project requirements. The final internal plan, WC and shower arrangement, finishes and site-specific scope can be reviewed through the building configurator and confirmed in the quotation.
Full specification
5 P600 modules (single storey), grid layout, 17.7m x 4.4m footprint, approx 57 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR14514 fine-ribbed applied to exposed walls between the frame in Venge. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 West wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 North wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 North wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 East wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 South wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 4 South wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 4 West wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 5 East wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 5 South wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (single) + Large window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; east (2.2m end): Full-size window; south (5.9m side): Small window + Large window + Small window. Module 4 P600 (ground floor) exposed walls — south (5.9m side): Small window + Large window + Small window; west (2.2m end): Full-size window. Module 5 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; south (5.9m side): Small window + Large window + Small window. Requested fit-out to confirm in the final layout: WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
