Holiday Lodges

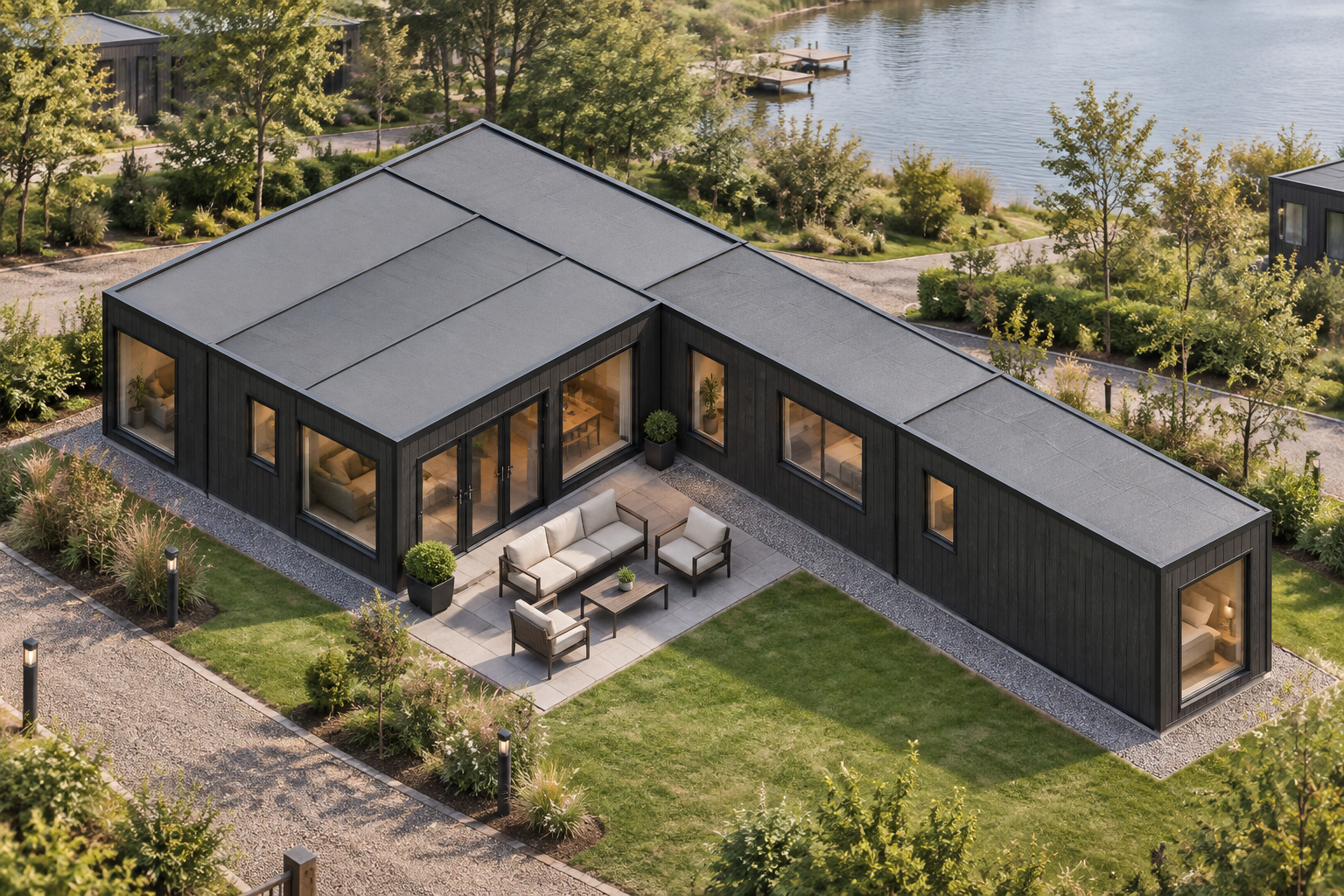

6-Module L-Shaped Holiday Lodge with WC and Shower
This single-storey holiday lodge combines six P600 modules in an L-shaped layout, providing approximately 68 m² of usable internal floor area. It is configured for holiday parks, glamping sites and short-let operators seeking spacious guest accommodation.
£80,800ex VAT
£96,960 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 6
- Storeys
- 1
- Floor area
- 68 m²
- Footprint
- 17.7m x 8.1m footprint
Design highlights
- Six linked P600 steel-framed modules
- Single-storey L-shaped 17.7m x 8.1m footprint
- Approximately 68 m² usable internal floor area
- Anthracite embossed woodgrain finish on exposed walls
- Double-door glazed entrance with multiple windows
- Requested kitchenette, WC and shower
- Flat roof with approximately 120mm steel-frame fascia
Six-module L-shaped arrangement
This holiday lodge comprises six linked P600 steel-framed modules arranged over one storey in an L-shaped plan. The overall footprint is 17.7m x 8.1m, with approximately 68 m² of internal usable floor area. Each module measures 5.9m x 2.2m and has an approximate usable interior of 5.7m x 2.0m. The external module height is 2.40m, with a 2.16m internal ceiling.
The configuration is intended for the Holiday Parks & Accommodation sector, including holiday parks, glamping sites and short-let operations. Further information about this application is available on the holiday lodges page.
Windows and entrance arrangement
Module 1 forms the principal entrance elevation. Its north-facing 5.9m wall has a large window, a double-door glazed entrance and a second large window. A further large window is positioned in its exposed 2.2m west end wall.
Module 2 has a small window, large window and small window across its north-facing wall. Module 3 repeats this three-window arrangement on both its north and south 5.9m walls, with another large window in the exposed east end wall.
Module 4 has a large window in its exposed 2.2m south end and a small, large and small window arrangement along its 5.9m west wall. Module 5 has one large window in its exposed south end. Module 6 has the three-window arrangement along its east-facing 5.9m wall, plus a large window in its south end.
Anthracite woodgrain exterior
The selected external finish is embossed woodgrain cladding in Antrasit (Anthracite), applied between the steel frame on the exposed walls. These are the north and west walls of Module 1; the north wall of Module 2; the north, east and south walls of Module 3; the south and west walls of Module 4; the south wall of Module 5; and the east and south walls of Module 6.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified. Cladding costs are quote-only and are not itemised publicly.
Requested internal fit-out
The requested fit-out comprises a kitchenette, WC and shower, with their exact positions to be confirmed in the final internal layout. The toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panels.
Plasterboard, alternative hygienic-panel styles and room-by-room flooring selections are available as choices or upgrades rather than included specifications. Final room divisions, fixtures, finishes and service positions are confirmed through the quotation and layout process. The stored arrangement can be reviewed through the building configurator.
Estimate and site requirements
The indicative configured estimate is £80,800 excluding VAT, or £96,960 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Siting remains subject to a site survey and confirmation of access, levels, ground conditions and the proposed position. These checks determine the relevant transport, lifting and groundwork requirements for this six-module L-shaped configuration.
Full specification
6 P600 modules (single storey), l-shape layout, 17.7m x 8.1m footprint, approx 68 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: Embossed woodgrain applied to exposed walls between the frame in Antrasit (Anthracite). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Antrasit (Anthracite), Embossed woodgrain; Module 1 West wall: Full-wall cladding, Antrasit (Anthracite), Embossed woodgrain; Module 2 North wall: Full-wall cladding, Antrasit (Anthracite), Embossed woodgrain; Module 3 North wall: Full-wall cladding, Antrasit (Anthracite), Embossed woodgrain; Module 3 East wall: Full-wall cladding, Antrasit (Anthracite), Embossed woodgrain; Module 3 South wall: Full-wall cladding, Antrasit (Anthracite), Embossed woodgrain; Module 4 South wall: Full-wall cladding, Antrasit (Anthracite), Embossed woodgrain; Module 4 West wall: Full-wall cladding, Antrasit (Anthracite), Embossed woodgrain; Module 5 South wall: Full-wall cladding, Antrasit (Anthracite), Embossed woodgrain; Module 6 East wall: Full-wall cladding, Antrasit (Anthracite), Embossed woodgrain; Module 6 South wall: Full-wall cladding, Antrasit (Anthracite), Embossed woodgrain. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Large window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; east (2.2m end): Large window; south (5.9m side): Small window + Large window + Small window. Module 4 P600 (ground floor) exposed walls — south (2.2m end): Large window; west (5.9m side): Small window + Large window + Small window. Module 5 P600 (ground floor) exposed walls — south (2.2m end): Large window. Module 6 P600 (ground floor) exposed walls — east (5.9m side): Small window + Large window + Small window; south (2.2m end): Large window. Requested fit-out to confirm in the final layout: kitchenette, WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
Frequently asked questions
Make it yours
Change the module count, layout, windows, doors and finish — then get an instant estimate.
Get a price for 6-Module L-Shaped Holiday Lodge with WC and Shower
Tell us what you need and we'll come back with pricing and lead times — usually within one working day.
