Modular Gyms
6-Module Gym with WC and Shower

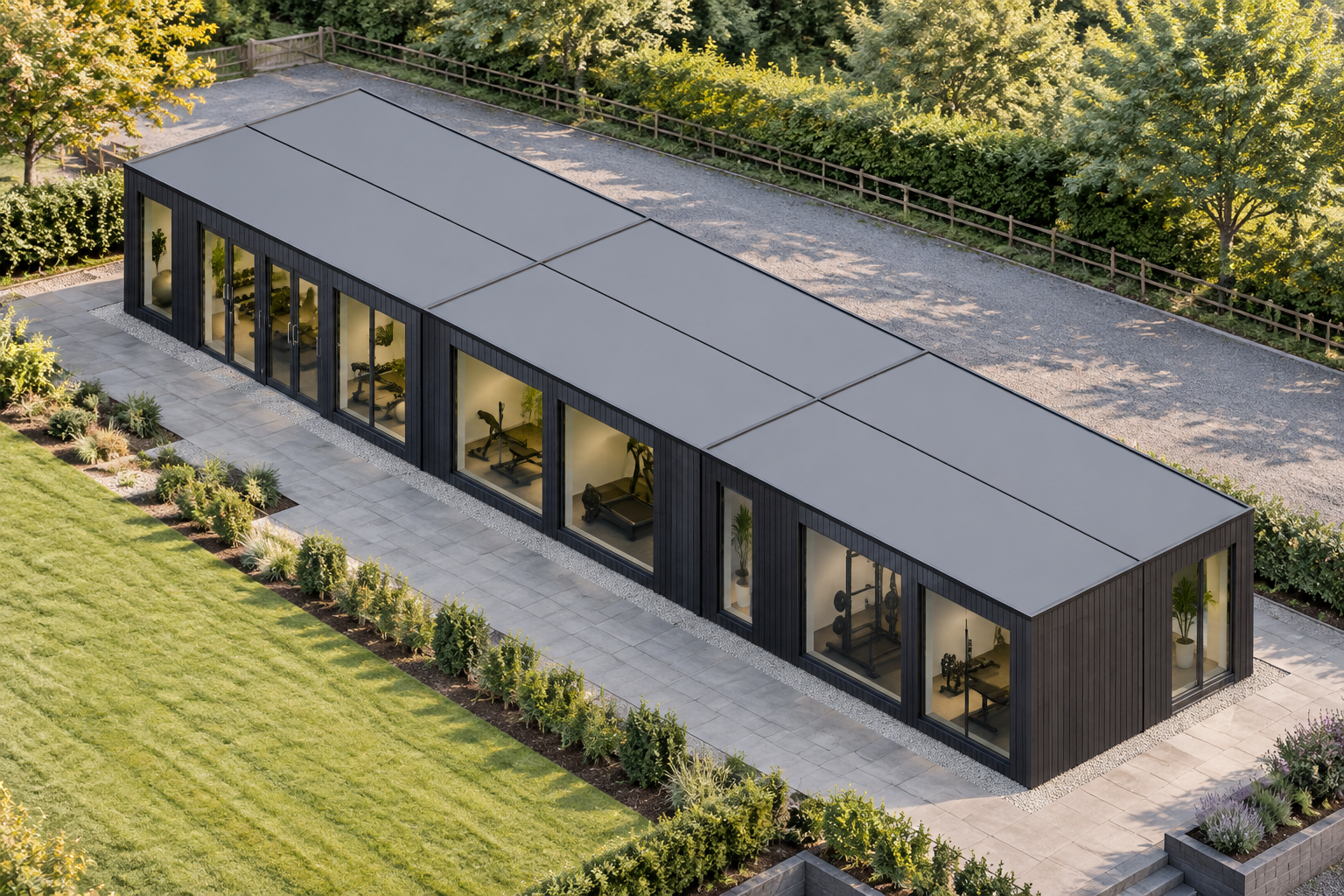

This single-storey modular gym combines six P600 modules in a 17.7m x 4.4m grid layout, providing approximately 74 m² of usable internal space. It is configured for home gym owners and small personal-training studios seeking a spacious, well-lit training environment with a requested WC and shower.
£80,600ex VAT
£96,720 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 6
- Storeys
- 1
- Floor area
- 74 m²
- Footprint
- 17.7m x 4.4m footprint
Design highlights
- Six P600 modules in a single-storey grid
- 17.7m x 4.4m overall footprint
- Approximately 74 m² usable internal area
- Large windows around all exposed elevations
- Glazed double-door entrance to Module 1
- Anthracite ARLINE 24136 vertical slatted cladding
- Requested WC and shower fit-out
Six-module gym layout
This configuration uses six steel-framed P600 modules arranged as a three-by-two, single-storey grid. The resulting footprint is 17.7m x 4.4m, with approximately 74 m² of usable internal floor area. Each module measures 5.9m x 2.2m externally and 2.40m high, with an approximate usable interior of 5.7m x 2.0m and a 2.16m internal ceiling.
The linked layout creates a broad training floor suited to a private home gym or a small personal-training studio. It falls within Adacon’s modular gym use case for the Sport & Leisure sector. The final internal arrangement, including circulation and room positions, remains subject to the confirmed quotation and layout.
Windows and entrance
The north elevation is formed by Modules 1, 2 and 3. Module 1 has two large windows with a glazed double door between them, plus a large window on its exposed west end. Modules 2 and 3 each have two large windows on their north walls, while Module 3 also has a large window on its exposed east end.
The south elevation is formed by Modules 4, 5 and 6. Each module has two large windows on its south wall. Module 4 also has a large window on the exposed west end, and Module 6 has a large window on the exposed east end. Together, these openings provide extensive glazing around the external perimeter without changing the stored six-module arrangement.
Anthracite slatted exterior
All exposed outside walls selected in this configuration have Anthracite ARLINE 24136 slatted cladding applied between the frame, with the boards running vertically. This covers the north walls of Modules 1, 2 and 3; the west walls of Modules 1 and 4; the east walls of Modules 3 and 6; and the south walls of Modules 4, 5 and 6.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified. External cladding is included within the configured estimate on a quote-only basis and is not separately itemised in public pricing.
Requested WC and shower fit-out
A WC and shower are requested for confirmation in the final layout. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. Their precise positions, dimensions, fixtures and final finishes must be agreed through quotation rather than assumed from illustrative material.
Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard, alternative hygienic-panel styles and room-by-room flooring selections are available as choices or upgrades, but are not included in this stored design unless added to the final quotation.
Configured estimate and siting
The indicative configured estimate is £80,600 excluding VAT, or £96,720 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Siting is subject to survey, including confirmation of access, levels, ground conditions and any location-specific requirements. The stored dimensions, finish and openings can be reviewed through the building configurator, with final details established by quotation.
Full specification
6 P600 modules (single storey), grid layout, 17.7m x 4.4m footprint, approx 74 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE 24136 slatted applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 2 North wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 3 North wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 3 East wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 4 South wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 4 West wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 5 South wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 6 East wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 6 South wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Large window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Large window. Module 4 P600 (ground floor) exposed walls — south (5.9m side): Large window + Large window; west (2.2m end): Large window. Module 5 P600 (ground floor) exposed walls — south (5.9m side): Large window + Large window. Module 6 P600 (ground floor) exposed walls — east (2.2m end): Large window; south (5.9m side): Large window + Large window. Requested fit-out to confirm in the final layout: WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
