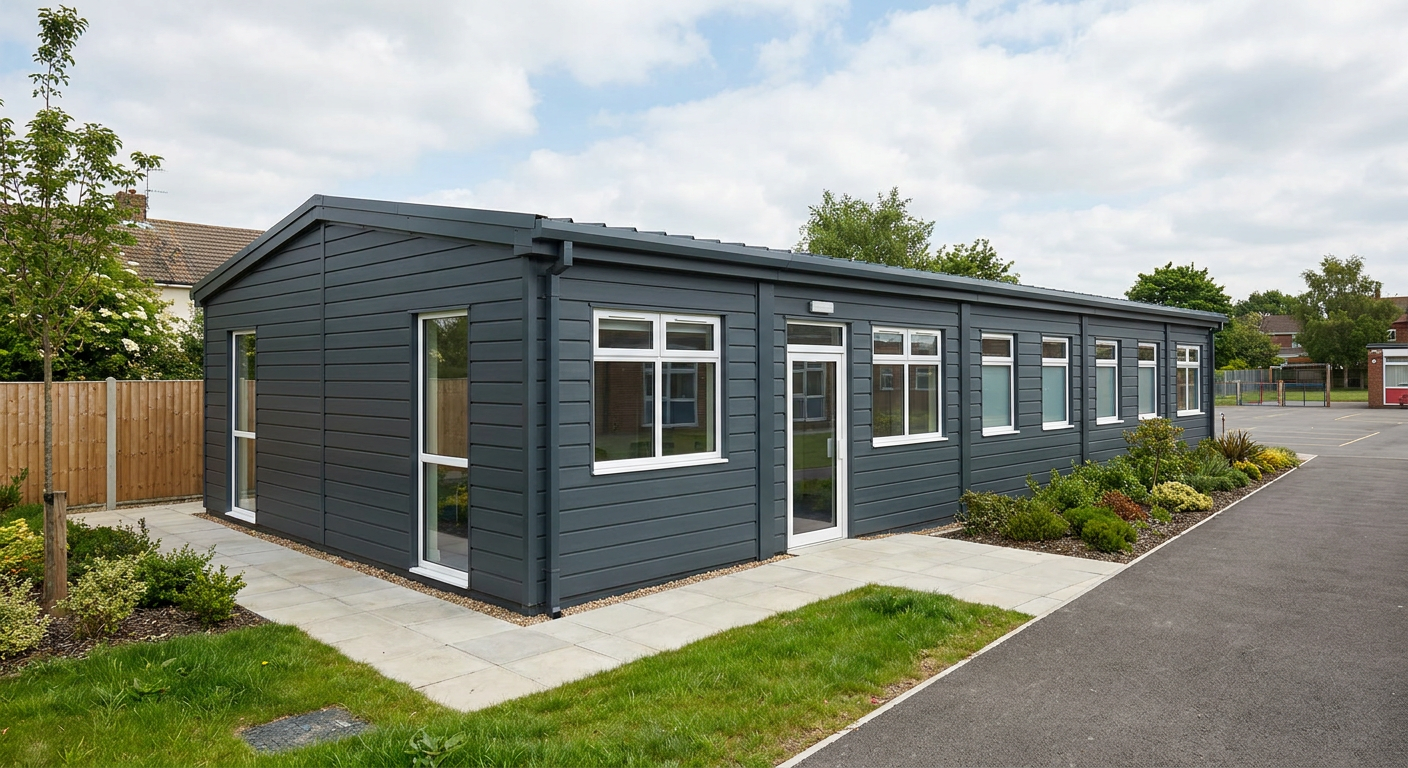

    5-module single-storey modular classroom, Adacon modular building (illustrative)
    Five-module, single-storey P600 modular classroom with WC for additional primary or secondary school capacity.

    Modular Classrooms

    5-Module P600 Modular Classroom with WC

    This five-module P600 modular classroom provides approx. 57.00 m² usable internal area before partitions in a single-storey grid layout with an integrated WC. It suits primary and secondary schools that need additional teaching capacity in a defined, practical building.

    £72,300ex VAT

    £86,760 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.

    Made to order. Build and delivery timing will be confirmed with your quotation.

    Call about this item
    PLACE ORDER

    Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.

    WhatsApp

    Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.

    Change the layout in the configurator
    Modules
    5
    Storeys
    1
    Approx. usable internal area
    57 m² before partitions
    External dimensions
    17.7m x 4.4m footprint

    Design highlights

    • Five linked P600 modules
    • Single-storey 17.7m x 4.4m footprint
    • approx. 57.00 m² usable internal area before partitions
    • Glazed single entrance door
    • Large, full-size and small windows
    • Horizontal Anthracite cladding
    • Dual-pitch apex roof and fitted WC

    Additional teaching space in a defined configuration

    This P600 building combines five 5.9m x 2.2m steel-framed modules in a single-storey grid arrangement. The overall footprint is 17.7m x 4.4m, with approx. 57.00 m² usable internal area before partitions. It is designed for use as a modular classroom, giving primary and secondary schools a practical option when existing teaching space is under pressure.

    The modules link together to create one building, while the window arrangement brings natural light into the exposed elevations. A glazed single door provides the external entrance, and a WC is included within the internal fit-out.

    Module-by-module layout

    The five modules are arranged across a three-module by two-module grid, with one position left open. The specified external openings are distributed as follows:

    • Module 1: The exposed north-facing 5.9m wall has a large window, a glazed single door and a second large window. The exposed west-facing 2.2m end has one full-size window.
    • Module 2: The exposed north-facing 5.9m wall has three small windows.
    • Module 3: The north-facing wall has three small windows, the east-facing end has one full-size window, and the south-facing wall has three small windows.
    • Module 4: The exposed south-facing wall has three small windows, while the west-facing end has one full-size window.
    • Module 5: The exposed east-facing end has one full-size window, and the south-facing wall has three small windows.

    This arrangement places windows around the north, south, east and west elevations. The combination of large, full-size and small windows reflects the requirements of each exposed module wall without adding openings to linked internal faces.

    External finish and roof

    The exterior is finished in horizontal Anthracite cladding, giving the classroom a consistent, contemporary appearance. Above the modules, a dual-pitch apex roof defines the finished building and provides a more traditional roof profile than a flat modular roofline.

    Internal fit-out

    The indicative price is based on the standard fitted specification and includes a WC. The approx. 57.00 m² usable internal area before partitions provides the main accommodation required for additional school capacity, while the final internal use of the available space should be considered against pupil numbers, furniture, circulation and the school’s operational requirements.

    Price and project allowances

    The indicative price for this five-module classroom is £72,300 ex VAT, equivalent to £86,760 inc VAT. This covers the building in the standard fitted specification described here, including the WC. Delivery, groundworks and site-specific works are not included and are quoted separately, so the indicative building price should not be treated as a complete installed project cost.

    The same configuration can be reviewed through the P600 configurator, including its module count, footprint, openings, external finish and roof form.

    Lead time and siting requirements

    A typical lead time is 8–12 weeks. Timing depends on order confirmation, final specification, site readiness and the agreed delivery and installation programme.

    The school site will need suitable delivery and installation access, prepared groundworks and appropriate service connections for the fitted building and WC. Available working space, ground conditions, levels and access restrictions must be assessed before installation. Any required planning approvals, site-specific works and connections should also be resolved within the wider project programme.

    Full specification

    5 P600 modules (single storey), grid layout, 17.7m x 4.4m footprint, approx. 57.00 m² usable internal area before partitions.
Exterior: horizontal cladding in Anthracite. Roof: dual-pitch (apex) roof.
Module 1 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (single) + Large window; west (2.2m end): Full-size window.
Module 2 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window.
Module 3 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Full-size window; south (5.9m side): Small window + Small window + Small window.
Module 4 (ground floor) exposed walls — south (5.9m side): Small window + Small window + Small window; west (2.2m end): Full-size window.
Module 5 (ground floor) exposed walls — east (2.2m end): Full-size window; south (5.9m side): Small window + Small window + Small window.
Internal fit-out includes: WC.
