Toilet & Shower Blocks

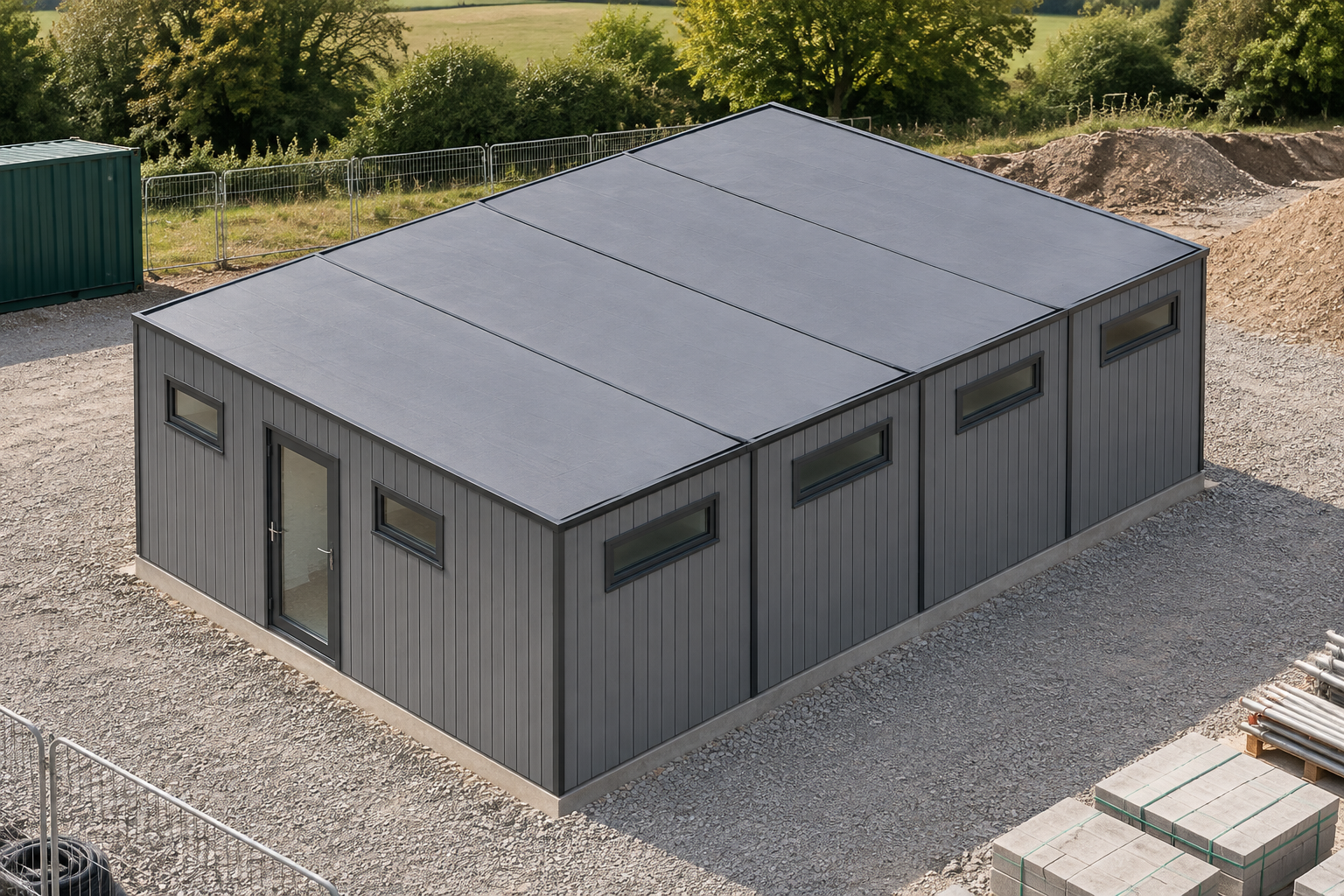

4-Module Toilet and Shower Block
This single-storey toilet and shower block combines four P600 modules in a wide 5.9m x 8.8m configuration. It suits large construction sites, campsites and holiday parks requiring substantial washroom space.
£54,000ex VAT
£64,800 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Approx. usable internal area
- 45.6 m² before partitions
- External dimensions
- 5.9m x 8.8m footprint
Design highlights
- Four P600 modules in a single-storey wide layout
- 5.9m x 8.8m external footprint
- Approximately 45.6m² usable internal area before partitions
- Single glazed entrance door with small flanking windows
- High-level, top-only windows across exposed end and rear walls
- Grey ARLINE AR16016 vertical grooved plank cladding
- WC and shower fit-out requested for final layout confirmation
Four-module wide layout
This configuration places four steel-framed P600 modules together in a single-storey, wide arrangement. Each module measures 5.9m x 2.2m, creating an external footprint of 5.9m x 8.8m. The approximate usable internal area is 45.6m² before partitions, based on a conservative per-module allowance. Connected open layouts may provide more space, subject to the final partition plan.
Each module is 2.40m high externally and has a 2.16m internal ceiling. Its approximate usable interior measures 5.7m x 2.0m. This format provides the capacity required for a larger toilet and shower block while keeping all accommodation on one level.
Doors and windows
Module 1 forms the principal entrance elevation. Its exposed north wall has a single glazed door positioned between two small windows. The east and west end walls each have one high-level, top-only window.
Modules 2 and 3 each have one high-level, top-only window in both the east and west end walls. Module 4 also has high-level, top-only windows on its east and west ends, together with two high-level, top-only windows on the exposed south wall. These openings are specific to this stored configuration.
Grey grooved exterior
The exposed walls are finished between the frame with Grey ARLINE AR16016 grooved plank cladding, installed as vertical boards. The selected cladding covers Module 1’s north, east and west walls; Modules 2 and 3’s east and west walls; and Module 4’s east, south and west walls.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified. Final fixture, colour and finish details are confirmed by quotation.
Requested washroom fit-out
A WC and shower are requested for the final layout. Their positions, quantities and surrounding partitions remain subject to confirmation when the room arrangement is agreed. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels available as an option. Shower rooms use wet-room PVC flooring.
Where selected, plaster applies outside the bathroom walls. Elsewhere, insulated sandwich panels are the included internal wall finish. Any alternative finishes are selected in relation to the final room layout rather than assumed across the complete building. The arrangement can be reviewed through the building configurator.
Price and site considerations
The indicative configured estimate is £54,000 excluding VAT, or £64,800 including VAT, subject to quotation. Transport is priced separately according to postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Placement and access must be assessed for the intended site. Siting is subject to survey, including the available approach, working space, ground conditions and any requirements affecting transport or lifting. These checks are particularly relevant for holiday parks, campsites and large construction sites where access conditions can vary significantly.
Full specification
4 P600 modules (single storey), wide layout, 5.9m x 8.8m footprint, approx 45.6 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Grey. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 1 East wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 East wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 West wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 3 East wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 3 West wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 4 East wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 4 South wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 4 West wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Glazed door (single) + Small window; east (2.2m end): Top-only window (high level); west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — east (2.2m end): Top-only window (high level); west (2.2m end): Top-only window (high level). Module 3 P600 (ground floor) exposed walls — east (2.2m end): Top-only window (high level); west (2.2m end): Top-only window (high level). Module 4 P600 (ground floor) exposed walls — east (2.2m end): Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level); west (2.2m end): Top-only window (high level). Requested fit-out to confirm in the final layout: WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
Frequently asked questions
Make it yours
Change the module count, layout, windows, doors and finish — then get an instant estimate.
Get a price for 4-Module Toilet and Shower Block
Tell us what you need and we'll come back with pricing and lead times — usually within one working day.
