Site Welfare Units
4-Module Site Welfare Unit with Kitchenette, WC and Shower
This single-storey site welfare unit combines four P600 modules in a 23.6m linear run, with a kitchenette, WC and shower requested for the final layout. It suits construction sites requiring practical canteen, drying room and WC facilities.
£55,200ex VAT
£66,240 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Approx. usable internal area
- 45.6 m² before partitions
- External dimensions
- 23.6m x 2.2m footprint
Design highlights
- Four P600 modules in a single-storey linear run
- 23.6m x 2.2m external footprint
- Approximately 45.6m² usable internal area before partitions
- Anthracite ARLINE AR16016 vertical grooved plank cladding
- Single glazed entrance door with multiple small windows
- High-level end windows at both ends of the run
- Kitchenette, WC and shower requested for the final layout

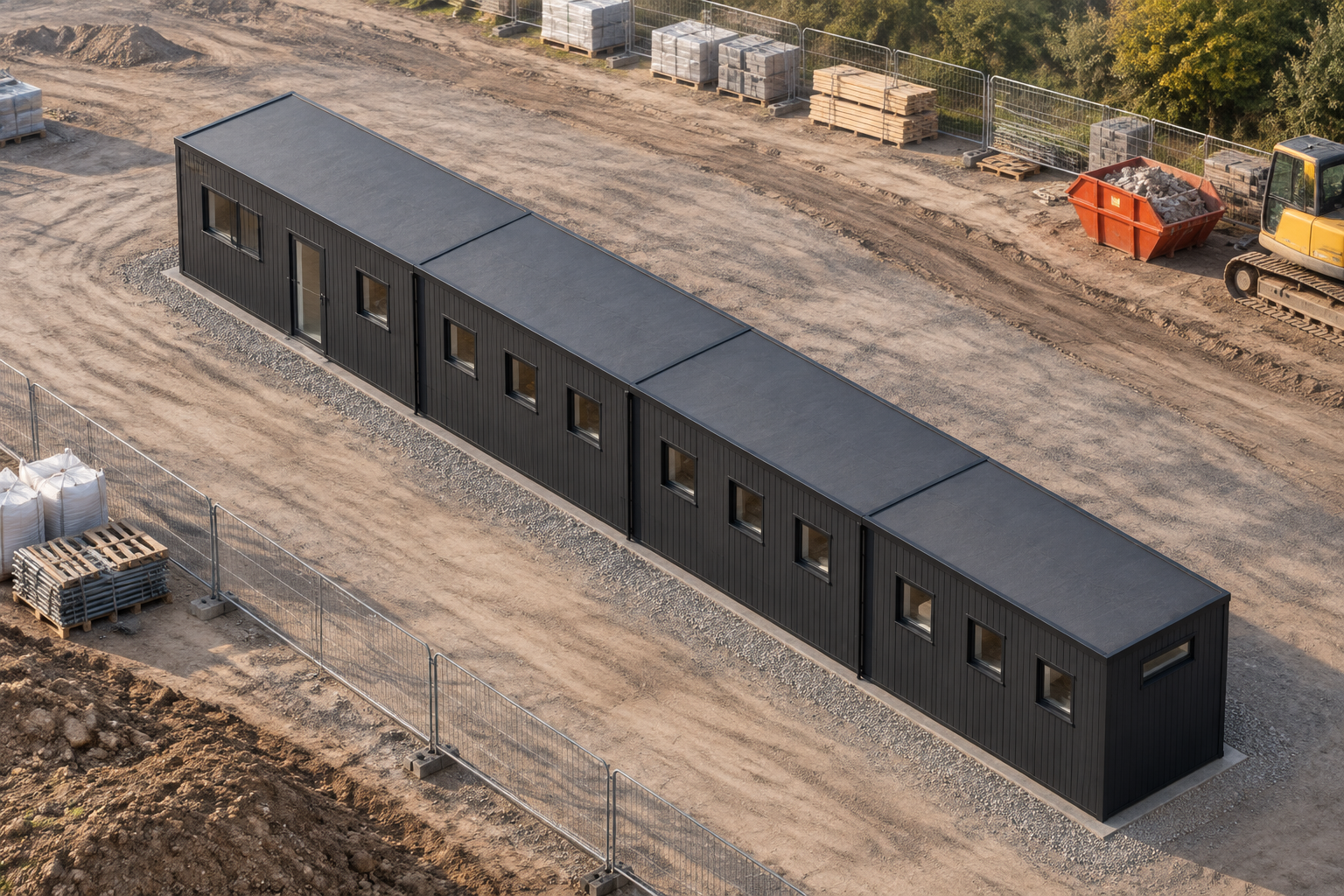

Four-module linear configuration
This site welfare building uses four steel-framed P600 modules linked end to end in a single-storey run. Each module measures 5.9m x 2.2m, creating an overall external footprint of 23.6m x 2.2m. The configuration provides approximately 45.6m² of usable internal area before partitions, based on a conservative per-module allowance. Connected open layouts may provide more space.
Each module is 2.40m high externally and has a 2.16m internal ceiling. Its approximate usable interior measures 5.7m x 2.0m. The long, narrow format can support a practical sequence of welfare spaces for construction personnel, subject to confirmation of the kitchenette, WC, shower, canteen and drying-room arrangement in the final design.
Windows and external access
Module 1 has three small windows on its north wall. Its south wall has a single glazed door positioned between two small windows, while the exposed west end has a high-level, top-only window.
Modules 2 and 3 each have three small windows on both their north and south walls. Module 4 also has three small windows on each long wall, together with a high-level, top-only window in the exposed east end. This creates repeated window coverage along both sides of the run, with external access through Module 1.
Anthracite exterior and flat roof
Every exposed wall is finished between the frame with Anthracite ARLINE AR16016 grooved plank cladding. The boards are installed vertically across the north and south walls of all four modules, the west end of Module 1 and the east end of Module 4. Cladding costs are confirmed as part of the project quotation rather than itemised publicly.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is selected for this configuration.
Requested welfare fit-out
The requested fit-out comprises a kitchenette, WC and shower, with their final positions and associated partitions to be confirmed in the room layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard. Hygienic wall panels are optional, while shower rooms use wet-room PVC flooring.
Outside bathroom areas, plaster can be applied where that finish is selected. Elsewhere, insulated sandwich panels are the included internal wall finish. Any alternative wall finishes, floor finishes or room-specific treatments are chosen when the final layout is agreed. Further context on this application is available under site welfare units.
Price, transport and siting
The indicative configured estimate is £55,200 excluding VAT, or £66,240 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Final siting is subject to a site survey, including access, ground conditions and the requirements for positioning the full 23.6m run. The confirmed internal arrangement, selected finishes and project-specific details will be recorded in the quotation. The stored configuration can be reviewed through the building configurator.
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 45.6 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Small window + Small window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Small window + Small window. Module 4 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Top-only window (high level); south (5.9m side): Small window + Small window + Small window. Requested fit-out to confirm in the final layout: kitchenette, WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
