4-Module Site Welfare Unit with Kitchenette and WC
This single-storey site welfare unit links four P600 modules in a straight run, with a requested kitchenette, WC and shower. It suits construction sites requiring practical canteen, drying-room and WC facilities.
£55,200ex VAT
£66,240 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Approx. usable internal area
- 45.6 m² before partitions
- External dimensions
- 23.6m x 2.2m footprint
Design highlights
- Four P600 modules in a single-storey run
- 23.6m x 2.2m external footprint
- Approximately 45.6m² usable internal area before partitions
- Requested kitchenette, WC and shower
- Glazed double entrance door and high-level end windows
- Anthracite vertical ARLINE AR16016 grooved plank cladding
- Flat roof with approximately 120mm steel-frame fascia

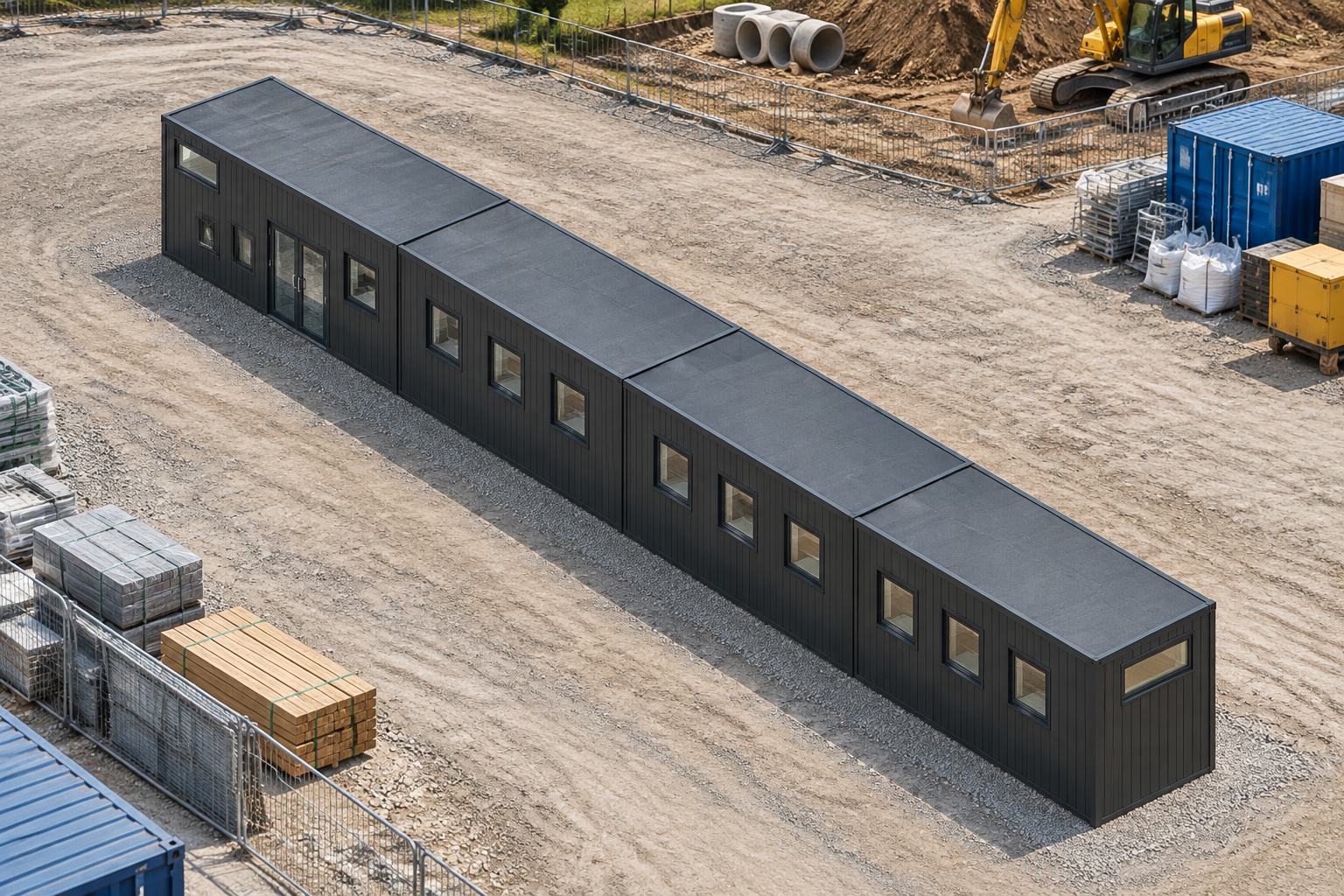

Four-module run layout
This configuration uses four steel-framed P600 modules arranged in a single-storey run. Each module measures 5.9m x 2.2m, giving the complete building an external footprint of 23.6m x 2.2m. The approximate usable internal area is 45.6m² before partitions, based on a conservative per-module allowance. Connected open layouts may provide more space, depending on the final internal arrangement.
Each module is 2.40m high externally and has a 2.16m internal ceiling. Its approximate usable interior is 5.7m x 2.0m. The long, narrow format supports a sequenced welfare layout, with room planning to be confirmed around the requested kitchenette, WC and shower. This makes the building suitable for construction sites seeking combined canteen, drying-room and sanitary provision in one site welfare unit.
Windows and entrance
Module 1 has three small windows on its north wall. Its south wall has two small windows with a glazed double door positioned between them, providing the building’s specified external entrance. A top-only high-level window is fitted to the exposed west end wall.
Modules 2 and 3 each have three small windows on both their north and south walls. Module 4 also has three small windows on each long exposed wall, together with a top-only high-level window on the exposed east end. These openings are specific to the stored configuration; their relationship to the kitchenette, WC, shower and other welfare spaces will be resolved in the final room layout.
Selected exterior
The exposed outside walls are finished with Anthracite ARLINE AR16016 grooved plank cladding, applied vertically between the frame. Full-wall cladding is selected for the north and south walls of all four modules, the west end of Module 1 and the east end of Module 4. The building has a flat roof with an approximately 120mm steel-frame fascia and no additional fascia.
Requested internal fit-out
The requested fit-out comprises a kitchenette, WC and shower, all subject to confirmation in the final layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, while hygienic panels are available as an optional selection. Shower rooms use wet-room PVC flooring.
Elsewhere, insulated sandwich panels are the included internal wall finish. Other finishes are selected to suit the final room arrangement. Where plaster is selected, it applies outside the bathroom walls. Fixtures, finishes and room positions shown during design development remain subject to the final quotation rather than being automatically included.
Estimate and site requirements
The indicative configured estimate is £55,200 excluding VAT, or £66,240 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Final positioning, access and site requirements are subject to survey. The site must be assessed for vehicle access, offloading arrangements, ground conditions and any project-specific works before the configuration is finalised through the building configurator.
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 45.6 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Glazed door (double) + Small window; west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Small window + Small window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Small window + Small window. Module 4 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Top-only window (high level); south (5.9m side): Small window + Small window + Small window. Requested fit-out to confirm in the final layout: kitchenette, WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
