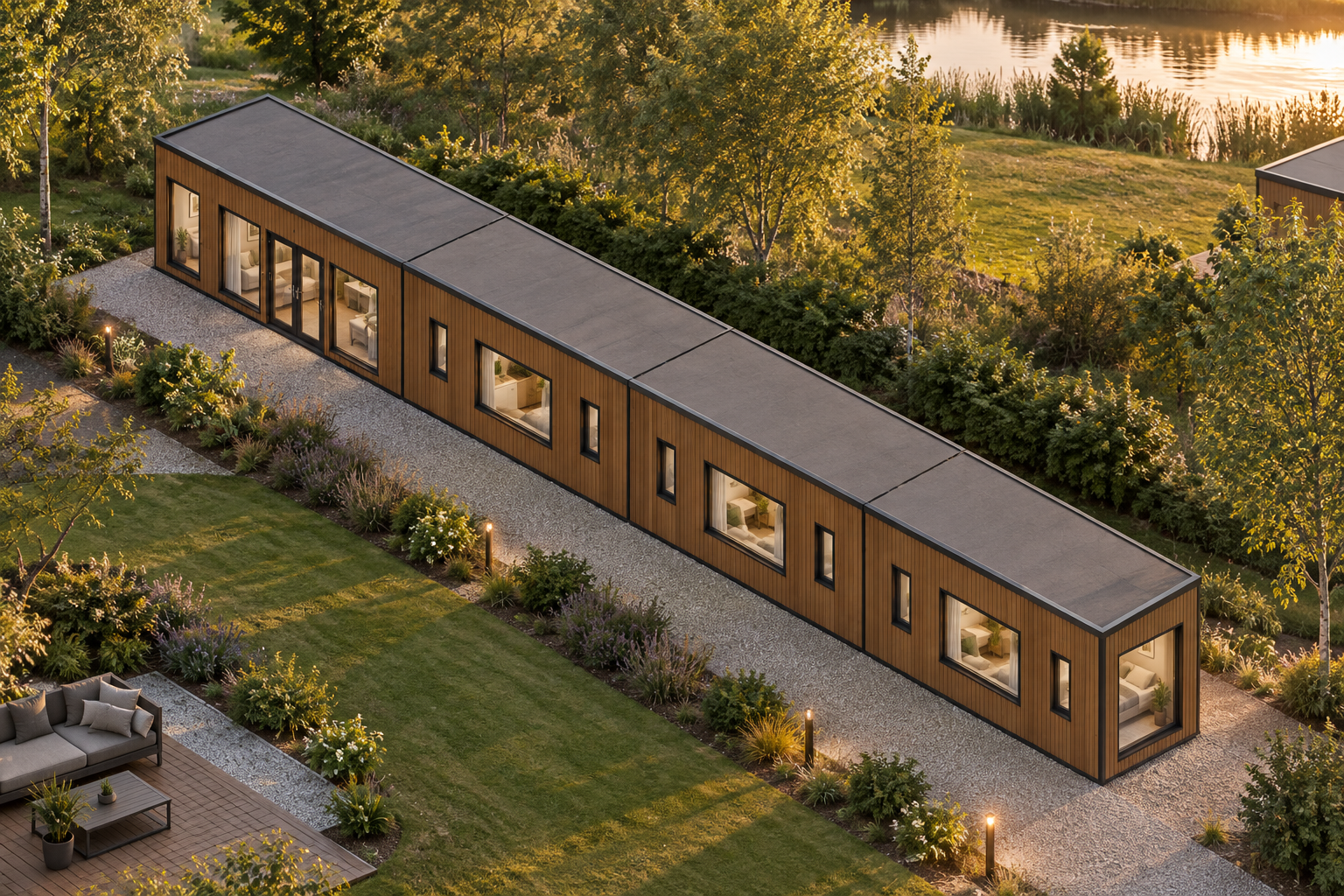

Single-storey holiday lodge in a landscaped holiday park setting — Four-module, single-storey P600 configuration designed as a holiday lodge for parks, glamping sites and short-let operators.

Holiday Lodges

4-Module Single-Storey Holiday Lodge

This single-storey holiday lodge combines four P600 modules in a 23.6m run, providing approx. 45.60 m² usable internal area before partitions. It is configured for holiday parks, glamping sites and short-let operators seeking guest accommodation with a kitchenette, WC and shower.

£55,200ex VAT

£66,240 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.

Made to order. Build and delivery timing will be confirmed with your quotation.

Call about this item

PLACE ORDER

Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.

Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.

Change the layout in the configurator

Modules: 4
Storeys: 1
Approx. usable internal area: 45.6 m² before partitions
External dimensions: 23.6m x 2.2m footprint

Design highlights

Four P600 modules in a single-storey run
23.6m x 2.2m overall footprint
approx. 45.60 m² usable internal area before partitions
Teak ARLINE AR14514 vertical fine-ribbed cladding
Windows across both long elevations and exposed ends
Glazed double-door set on Module 1 south wall
Requested kitchenette, WC and shower fit-out

Four-module run layout

This holiday lodge uses four P600 steel-framed modules arranged in a single-storey run. Each module measures 5.9m x 2.2m, creating an overall footprint of 23.6m x 2.2m and approx. 45.60 m² usable internal area before partitions. Each module is 2.40m externally, with a 2.16m internal ceiling and an approximate usable interior of 5.7m x 2.0m.

The long, linear configuration is intended for the Holiday Parks & Accommodation sector. It provides a defined starting point for holiday parks, glamping sites and short-let operators considering a purpose-configured holiday lodge.

Windows and guest access

Module 1 forms the western end of the run. Its north wall has a small window, large window and second small window. The south wall has two large windows positioned around a glazed double-door set, while the exposed west end has one large window.

Modules 2 and 3 each have the same opening arrangement on their exposed north and south walls: one large window positioned between two small windows. Module 4 repeats this small-window, large-window and small-window arrangement on both long elevations, with an additional large window in the exposed east end wall.

Teak fine-ribbed exterior

All exposed walls are selected with full-wall ARLINE AR14514 fine-ribbed cladding in Teak, applied between the visible frame. The boards run vertically across the north and south walls of all four modules, the west end of Module 1 and the east end of Module 4. Cladding remains subject to the final quotation and is not separately itemised in public pricing.

The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified for this configuration.

Requested internal fit-out

The requested accommodation fit-out comprises a kitchenette, WC and shower, with their positions and room arrangement to be confirmed in the final layout. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. The precise sanitary, shower and kitchenette details must also be confirmed through the project quotation rather than assumed from illustrations.

Outside the toilet and shower rooms, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard and alternative hygienic-panel styles are selectable upgrades or choices. Room-by-room flooring outside the wet areas has not been fixed in this stored design and should be selected when the internal specification is finalised through the building configurator.

Estimate, transport and siting

The indicative configured estimate is £55,200 excluding VAT, or £66,240 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.

The proposed siting is subject to survey, including confirmation of access, ground conditions and the requirements of the selected plot. Final dimensions, internal arrangements, fixtures and finishes are confirmed in the quotation for the completed project specification.

Full specification

4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx. 45.60 m² usable internal area before partitions. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m.
Exterior: ARLINE AR14514 fine-ribbed applied to exposed walls between the frame in Teak. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia).
Selected outside walls: Module 1 North wall: Full-wall cladding, Teak, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 South wall: Full-wall cladding, Teak, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 West wall: Full-wall cladding, Teak, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 North wall: Full-wall cladding, Teak, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 South wall: Full-wall cladding, Teak, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 North wall: Full-wall cladding, Teak, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 South wall: Full-wall cladding, Teak, ARLINE AR14514 fine-ribbed, vertical boards; Module 4 North wall: Full-wall cladding, Teak, ARLINE AR14514 fine-ribbed, vertical boards; Module 4 East wall: Full-wall cladding, Teak, ARLINE AR14514 fine-ribbed, vertical boards; Module 4 South wall: Full-wall cladding, Teak, ARLINE AR14514 fine-ribbed, vertical boards. Cladding prices are quote-only and must not be itemised in public copy.
Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; south (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Large window.
Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; south (5.9m side): Small window + Large window + Small window.
Module 3 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; south (5.9m side): Small window + Large window + Small window.
Module 4 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; east (2.2m end): Large window; south (5.9m side): Small window + Large window + Small window.
Requested fit-out to confirm in the final layout: kitchenette, WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
