Modular Cafés

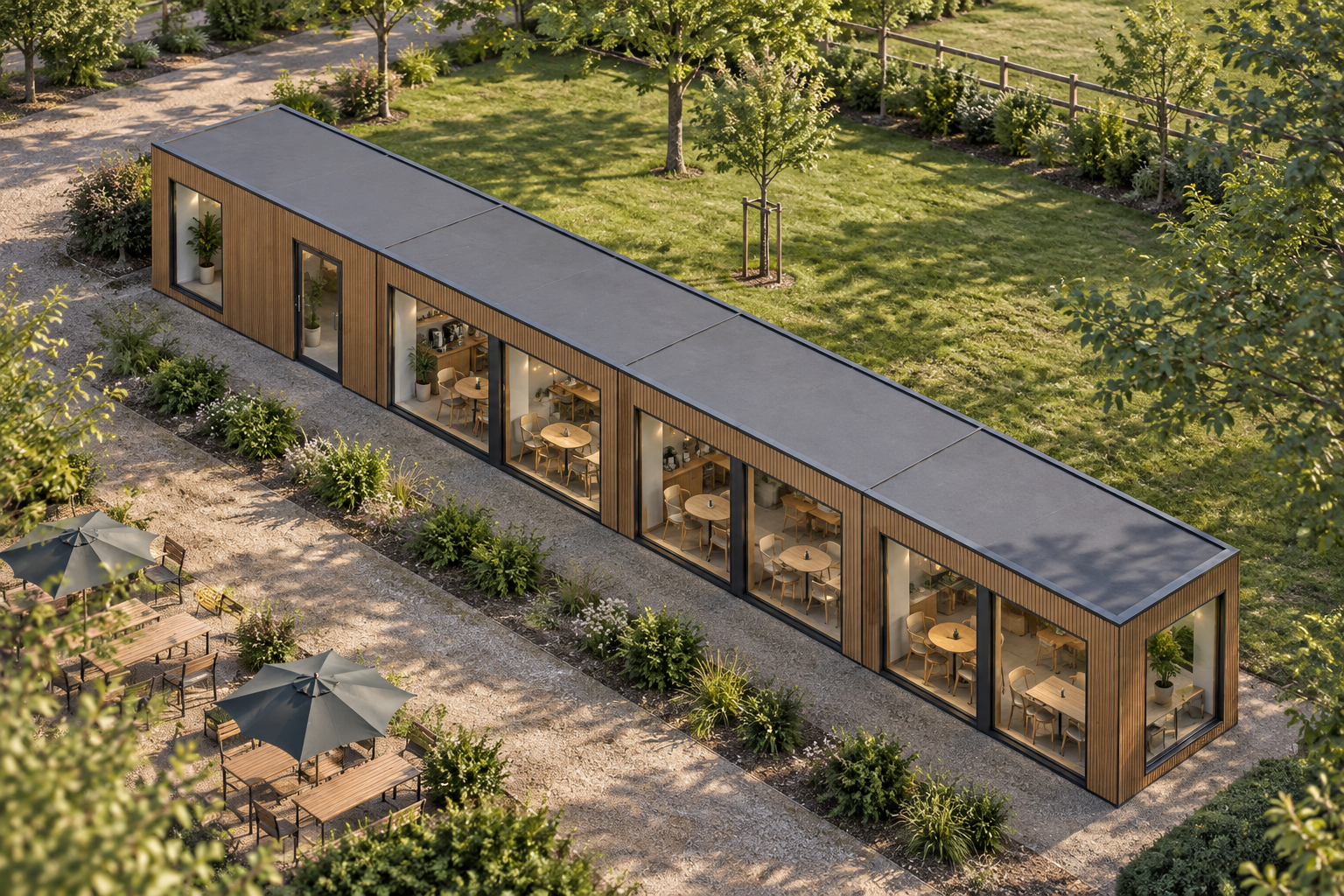

4-Module P600 Modular Café Configuration
This single-storey modular café combines four P600 modules in a straight 23.6m run, providing approximately 46 m² of usable internal floor area. It suits coffee operators, parks and visitor attractions seeking a glazed, steel-framed café configuration with a requested kitchenette and WC.
£55,200ex VAT
£66,240 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Floor area
- 46 m²
- Footprint
- 23.6m x 2.2m footprint
Design highlights
- Four P600 modules in a single-storey run
- 23.6m x 2.2m overall footprint
- Approximately 46 m² usable internal area
- Sixteen large windows and one single glazed door
- Tik (Teak) AR14514 narrow-groove cladding
- Flat roof with approximately 120mm steel-frame fascia
- Requested kitchenette and WC layout
Configuration at a glance
This stored P600 design uses four steel-framed modules linked end to end in a single-storey run. The resulting footprint is 23.6m long by 2.2m wide, with approximately 46 m² of usable internal floor area. Each module measures 5.9m by 2.2m externally and is 2.40m high, with an internal ceiling height of 2.16m. The approximate usable interior of each module is 5.7m by 2.0m.
- Four P600 modules in a straight run
- Single-storey arrangement
- 23.6m by 2.2m overall footprint
- Approximately 46 m² of usable internal space
The layout is configured for a modular café in the Retail & Hospitality sector, particularly for coffee operators, parks and visitor attractions.
Glazing, entrance and external finish
The long north and south elevations provide the principal glazed aspects, while large windows are also placed in both exposed end walls. The openings are distributed across the four modules as follows:
- Module 1: two large windows to the north wall, one single glazed door to the south wall and one large window to the west end wall
- Module 2: two large windows to the north wall and two large windows to the south wall
- Module 3: two large windows to the north wall and two large windows to the south wall
- Module 4: two large windows to the north wall, two large windows to the south wall and one large window to the east end wall
All exposed north and south walls receive the selected full-wall cladding treatment, together with Module 1’s west end wall and Module 4’s east end wall. The finish is Tik (Teak) Narrow groove cladding, reference AR14514, applied between the frame and around the specified openings. Cladding details and costs are confirmed within the final quotation.
Above, the configuration has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified for this stored design.
Requested café fit-out
A kitchenette and WC have been requested, with their precise positions and final details to be confirmed when the internal layout is agreed. Fixtures, fittings and finishes shown in supporting illustrations should not be treated as guaranteed inclusions; the quotation confirms the final specification.
Elsewhere within the café, the included internal wall finish is white, lightly ribbed insulated sandwich panels. The WC area requires hygienic wall panels and wet-room PVC flooring. Plasterboard, alternative hygienic-panel styles and room-by-room flooring selections remain selectable choices or upgrades rather than included features unless they are expressly added to the quotation.
Changes to the stored arrangement can be reviewed through the P600 configurator, but any revision may affect the layout, specification and quoted price.
Pricing and siting
The indicative configured estimate is £55,200 excluding VAT, or £66,240 including VAT, subject to quotation. Transport is priced separately according to the destination postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate from this estimate.
Siting remains subject to survey, including confirmation of access and the requirements of the chosen location. The final quotation records the agreed openings, fit-out, finishes and any site-related provisions for this four-module configuration.
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 46 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: Narrow groove (AR14514) applied to exposed walls between the frame in Tik (Teak). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Tik (Teak), Narrow groove (AR14514); Module 1 South wall: Full-wall cladding, Tik (Teak), Narrow groove (AR14514); Module 1 West wall: Full-wall cladding, Tik (Teak), Narrow groove (AR14514); Module 2 North wall: Full-wall cladding, Tik (Teak), Narrow groove (AR14514); Module 2 South wall: Full-wall cladding, Tik (Teak), Narrow groove (AR14514); Module 3 North wall: Full-wall cladding, Tik (Teak), Narrow groove (AR14514); Module 3 South wall: Full-wall cladding, Tik (Teak), Narrow groove (AR14514); Module 4 North wall: Full-wall cladding, Tik (Teak), Narrow groove (AR14514); Module 4 East wall: Full-wall cladding, Tik (Teak), Narrow groove (AR14514); Module 4 South wall: Full-wall cladding, Tik (Teak), Narrow groove (AR14514). Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; south (5.9m side): Glazed door (single); west (2.2m end): Large window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; south (5.9m side): Large window + Large window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; south (5.9m side): Large window + Large window. Module 4 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Large window; south (5.9m side): Large window + Large window. Requested fit-out to confirm in the final layout: kitchenette, WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
