Holiday Lodges
4-Module P600 Holiday Lodge Configuration
This single-storey holiday lodge configuration combines four P600 modules in a straight 23.6m run. It suits holiday parks, glamping sites and short-let operators seeking flexible guest accommodation.
£58,200ex VAT
£69,840 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Approx. usable internal area
- 45.6 m² before partitions
- External dimensions
- 23.6m x 2.2m footprint
Design highlights
- Four P600 modules in a single-storey run
- 23.6m x 2.2m external footprint
- Approx. 45.6 m² usable internal area before partitions
- Black Grey RAL 7021 vertical insulated exterior panels
- Dual-pitch apex roof
- Windows to both long elevations and exposed end walls
- WC and shower requested for final layout confirmation
Four-module run layout
This configuration places four steel-framed P600 modules in a single-storey run, creating an external footprint of 23.6m x 2.2m. Each module measures 5.9m x 2.2m, with an external height of 2.40m and an internal ceiling height of 2.16m. The approximate usable interior of each module is 5.7m x 2.0m.
The combined building provides approximately 45.6 m² of usable internal area before partitions, based on a conservative per-module allowance. Connected open sections may provide more usable space, depending on the final internal arrangement. This format is intended as a holiday lodge for holiday parks, glamping sites and short-let accommodation.
Windows and glazed entrance
Module 1 has a small, large and small window sequence on its north wall. Its south wall has a large window, a glazed double-door set and another large window, while the exposed west end has a large window. Modules 2 and 3 each have the same small, large and small window sequence on both their north and south walls.
Module 4 continues the small, large and small window sequence on its north and south walls. Its exposed east end also includes a large window. These are the stored openings for this configuration; the final quotation confirms the detailed specification of each element.
Black Grey insulated exterior

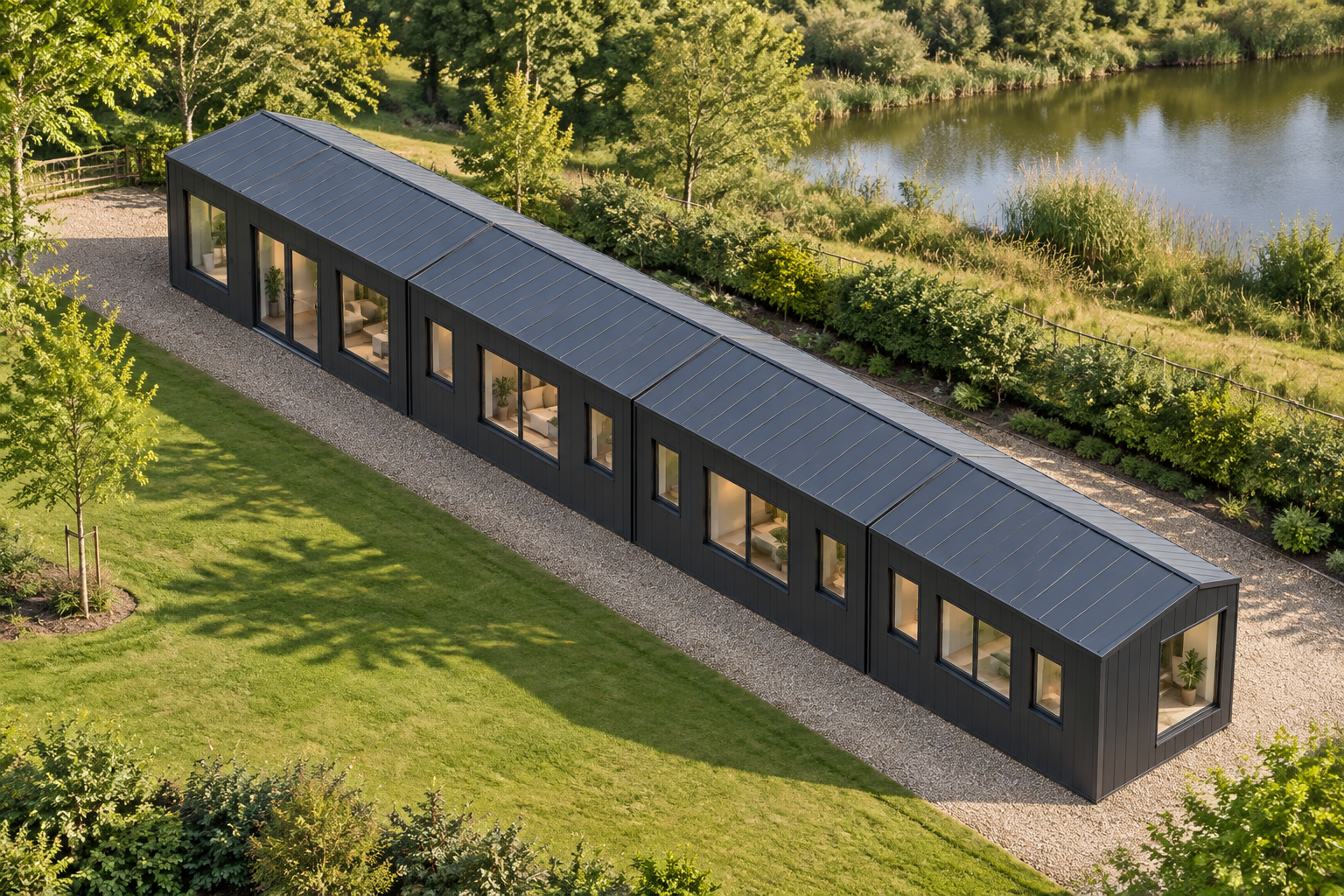

The included exterior uses vertical insulated sandwich panels in Black Grey, RAL 7021. The selected exposed north and south walls have smooth standard insulated panels, together with the west end wall of Module 1 and the east end wall of Module 4. The building is completed with a dual-pitch apex roof. Any illustration remains indicative, with final fixtures, finishes and details confirmed by quotation.
Requested bathroom fit-out
A WC and shower have been requested for confirmation within the final room layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, while hygienic panels are available as an optional selection. Shower rooms use wet-room PVC flooring. Plaster can be applied outside bathroom walls when selected.
Elsewhere, insulated sandwich panels are the included internal wall finish. Any alternative wall or floor finishes depend on the final room arrangement and selected specification. The internal layout, partition positions and bathroom allocation must therefore be agreed as part of the quotation and design process through the building configurator.
Configured estimate and siting
The indicative configured estimate is £58,200 excluding VAT, or £69,840 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Final siting is subject to a site survey and confirmation of access, levels, ground conditions and any project-specific requirements. The quotation will establish the final configuration, finishes, transport requirements and applicable site works.
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 45.6 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Black Grey (RAL 7021). Roof: dual-pitch (apex) roof. Selected outside walls: Module 1 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 West wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 2 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 2 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 3 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 3 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 4 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 4 East wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 4 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; south (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Large window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; south (5.9m side): Small window + Large window + Small window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; south (5.9m side): Small window + Large window + Small window. Module 4 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; east (2.2m end): Large window; south (5.9m side): Small window + Large window + Small window. Requested fit-out to confirm in the final layout: WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
Frequently asked questions
Make it yours
Change the module count, layout, windows, doors and finish — then get an instant estimate.
Get a price for 4-Module P600 Holiday Lodge Configuration
Tell us what you need and we'll come back with pricing and lead times — usually within one working day.
