Modular Shower Blocks
4-Module Modular Shower Block Configuration
This single-storey modular shower block combines four P600 modules in a 23.6m-long run, with a WC and shower requested for the final layout. It is suited to construction sites, campsites and sports clubs requiring approximately 46m² of usable internal space.
£55,200ex VAT
£66,240 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Floor area
- 46 m²
- Footprint
- 23.6m x 2.2m footprint
Design highlights
- Four P600 modules in a single-storey run
- 23.6m x 2.2m overall footprint
- Approximately 46m² of usable internal floor area
- Requested WC and shower fit-out
- Grey AR16016 smooth-plank cladding on exposed walls
- High-level windows plus a single glazed entrance door
- Flat roof with approximately 120mm steel-frame fascia
A four-module single-storey run

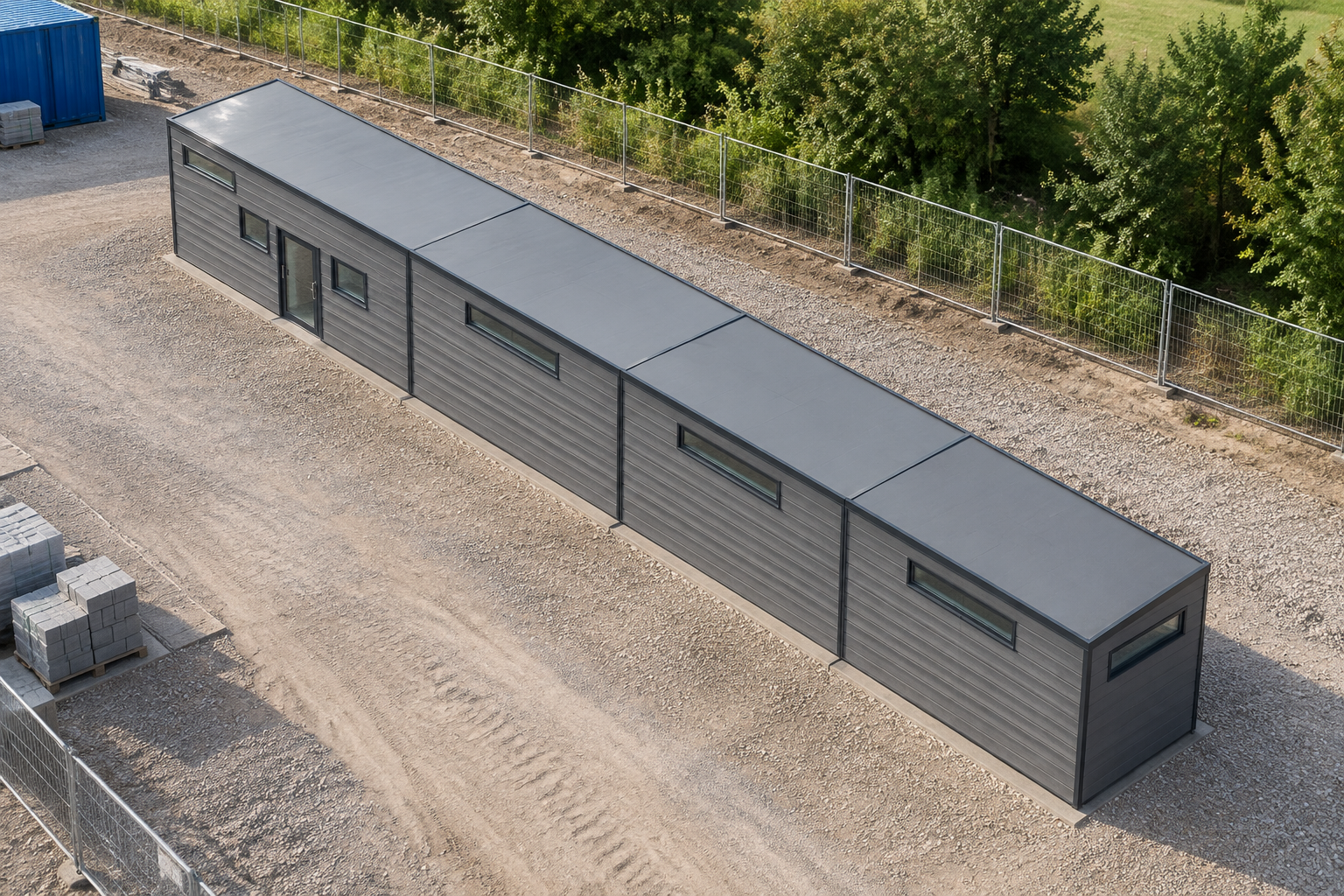

This configuration uses four steel-framed P600 modules linked end to end in a straight, single-storey run. The overall footprint is 23.6m x 2.2m, providing approximately 46m² of usable internal floor area. Each module measures 5.9m x 2.2m externally, with an external height of 2.40m and an internal ceiling height of 2.16m. The approximate usable interior of each module is 5.7m x 2.0m.
The long, narrow arrangement is configured as a modular shower block for the construction sector and can also suit campsites and sports clubs. The requested fit-out includes a WC and shower, with their final positions and the detailed room arrangement to be confirmed as part of the final layout and quotation. Further information about this type of building is available on the modular shower blocks page.
External openings
Module 1 forms the western end of the run. Its north wall has a high-level, top-only window. The south wall has a single glazed door positioned with a small window on either side, while the exposed west end wall has another high-level, top-only window.
Modules 2 and 3 each have a high-level, top-only window on both their north and south exposed walls. Module 4 forms the eastern end of the building, with high-level, top-only windows on its north and south walls and on the exposed east end wall. These are the openings stored for this specific configuration; final fixture details are confirmed by quotation.
Grey smooth-plank exterior
All exposed external walls in this run are selected with Smooth plank cladding, reference AR16016, in Gri (Grey), applied between the structural frame. This covers the north and south walls of all four modules, the west end wall of Module 1 and the east end wall of Module 4. Cladding is included within the configured estimate rather than itemised publicly.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is selected for this configuration.
Internal wall and floor finishes
Outside the toilet and shower rooms, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. The WC and shower areas require hygienic wall panels together with wet-room PVC flooring. The precise sanitary fixtures, room divisions and final wet-area details remain subject to the agreed layout and quotation.
Plasterboard and alternative hygienic-panel styles are selectable upgrades or choices rather than included features of this stored design. Room-by-room flooring outside the wet areas must also be selected and confirmed. Available configuration choices can be reviewed through the building configurator, but only items recorded in the final quotation form part of the supplied specification.
Estimate and site considerations
The indicative configured estimate is £55,200 excluding VAT, or £66,240 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Final siting is subject to a site survey and confirmation of access, ground conditions and project requirements. The quotation will confirm the final layout, openings, fit-out, finishes and transport requirements for the intended location.
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 46 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: Smooth plank (AR16016) applied to exposed walls between the frame in Gri (Grey). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 1 South wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 1 West wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 2 North wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 2 South wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 3 North wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 3 South wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 4 North wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 4 East wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 4 South wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016). Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); south (5.9m side): Top-only window (high level). Module 3 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); south (5.9m side): Top-only window (high level). Module 4 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); east (2.2m end): Top-only window (high level); south (5.9m side): Top-only window (high level). Requested fit-out to confirm in the final layout: WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
