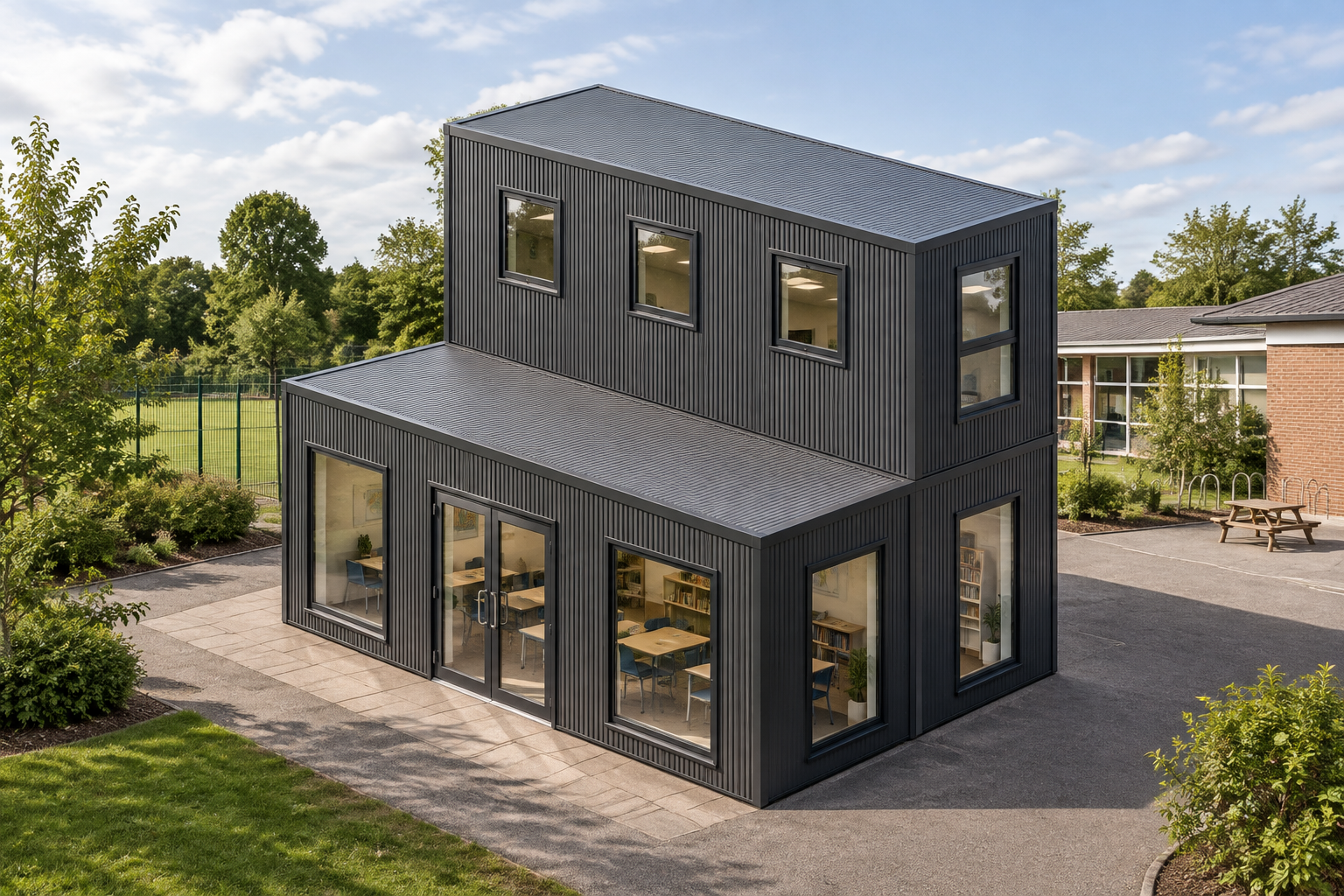

3-Module Two-Storey Modular Classroom
This two-storey modular classroom combines three P600 modules to provide approx. 34.20 m² usable internal area before partitions. It is configured for primary and secondary schools seeking additional education space within a compact 5.9m x 4.4m footprint.
£41,500ex VAT
£49,800 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 3
- Storeys
- 2
- Approx. usable internal area
- 34.2 m² before partitions
- External dimensions
- 5.9m x 4.4m footprint
Design highlights
- Three P600 modules arranged over two storeys
- approx. 34.20 m² usable internal area before partitions
- Compact 5.9m x 4.4m building footprint
- Internal staircase connecting both floors
- Anthracite ARLINE AR14514 fine-ribbed cladding
- Glazed double door with large, full-size and small windows
- Kitchenette and WC requested for final layout confirmation
Compact education space over two floors
This modular classroom configuration uses three steel-framed P600 modules arranged across two storeys. Two modules form the ground floor, creating a 5.9m x 4.4m overall footprint, with the third module providing the first-floor accommodation. The completed layout offers approx. 34.20 m² usable internal area before partitions and is intended for primary and secondary schools expanding capacity.
Each module measures 5.9m x 2.2m externally and is 2.40m high externally. Its approximate usable interior is 5.7m x 2.0m, with a 2.16m internal ceiling height. An internal staircase connects the ground and first floors without an external stair structure. The final room arrangement, circulation space and positioning of the requested facilities remain subject to confirmation in the final layout.
Windows and entrance arrangement
On the ground floor, Module 1 has two large windows and a glazed double door on its exposed north wall. Its east and west end walls each have one full-size window. Module 2 has two large windows on its exposed south wall, together with one full-size window in each of its east and west end walls.
First-floor Module 3 uses smaller windows around all four exposed elevations. Its north and south walls each have three small windows, while its east and west end walls each have two small windows. This opening schedule is specific to the stored configuration and should be read alongside the final quoted drawings.
Anthracite fine-ribbed exterior
The selected exposed walls are finished with ARLINE AR14514 fine-ribbed cladding in Anthracite, applied vertically between the frame. This full-wall cladding is selected for the north, east and west walls of Module 1; the east, south and west walls of Module 2; and all four exposed walls of Module 3. Cladding costs are quote-only and are not itemised publicly.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified in this configuration.
Requested internal fit-out
A kitchenette and WC have been requested, with their exact positions and final details to be confirmed as part of the completed layout and quotation. Toilet or shower rooms require hygienic wall panels and wet-room PVC flooring. Outside these areas, the included wall finish is white, lightly ribbed insulated sandwich panelling.
Plasterboard, alternative hygienic-panel styles and room-by-room flooring selections are available as choices or upgrades rather than included features of this stored design. Final fixtures, finishes and fit-out details are confirmed by quotation. The configuration can also be reviewed through the building configurator.
Quotation and site requirements
The indicative configured estimate is £41,500 ex VAT, or £49,800 including VAT, subject to quotation. Transport is calculated separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Placement is subject to a site survey and assessment of access, levels, foundations, services and lifting requirements. These factors may affect the final scope and quoted cost, so the building layout and requested fit-out must be checked against the school site before the order is finalised.
Full specification
3 P600 modules (two storeys), two-storey layout, 5.9m x 4.4m footprint, approx. 34.20 m² usable internal area before partitions. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR14514 fine-ribbed applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 East wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 East wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 South wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 West wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 North wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 East wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 South wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 West wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; east (2.2m end): Full-size window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; south (5.9m side): Large window + Large window; west (2.2m end): Full-size window. Module 3 P600 (first floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Small window + Small window; south (5.9m side): Small window + Small window + Small window; west (2.2m end): Small window + Small window. Internal staircase between the two floors (not visible outside). Requested fit-out to confirm in the final layout: kitchenette, WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
