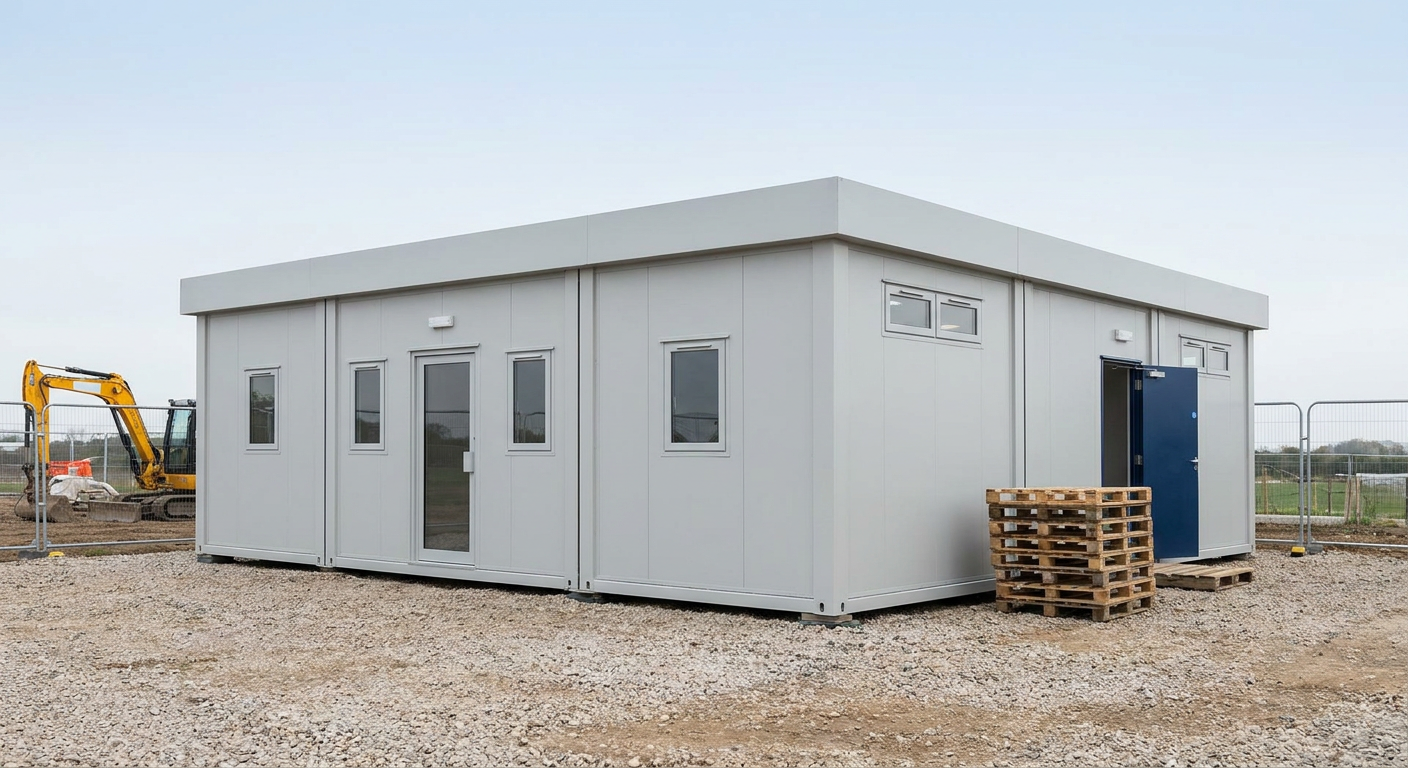

    3 single-storey modules with grey cladding, glazed door and windows, no shutters or terrace, Adacon P600 modular building
    Three-module P600 site welfare unit for construction sites requiring canteen, drying, WC and shower facilities.

    Site Welfare Units

    3-Module Site Welfare Unit with Canteen and WC

    This single-storey P600 site welfare unit combines three modules to provide approximately 34 m² of fitted internal space. It suits construction sites requiring practical canteen, drying room, WC and shower facilities in one building.

    £32,250ex VAT

    £38,700 inc VAT · standard fitted specification. Delivery, groundworks and site-specific works quoted separately.

    Configure this design Request a quote
    Modules
    3
    Storeys
    1
    Floor area
    34 m²
    Footprint
    5.9m x 6.6m footprint

    What's included

    • Three linked P600 modules
    • Single-storey 5.9m x 6.6m footprint
    • Approximately 34 m² internal floor area
    • Kitchenette, WC and shower
    • Single glazed entrance door
    • Smooth Light grey cladding
    • Flat roof with slim fascia

    Configuration and footprint

    This site welfare building is formed from three P600 modules arranged side by side in a wide, single-storey layout. Each module measures 5.9m by 2.2m, creating an overall footprint of 5.9m by 6.6m and approximately 34 m² of internal floor area. The format is intended for construction sites that need canteen, drying room and WC facilities within one connected building.

    The broad floor plate provides more usable width than a narrow linear arrangement, helping the interior accommodate shared welfare functions without adding a second storey. Further information on this type of building is available on the site welfare units page.

    External finish

    The exterior is finished in smooth Light grey cladding, giving the unit a clean, straightforward appearance suited to an active construction environment. A flat roof with a slim fascia keeps the overall profile low. The three steel-framed modules are linked to create a single building rather than separate welfare cabins.

    Module-by-module layout

    Module 1 forms the northern side of the building. Its exposed 5.9m north wall has a single glazed door positioned between two small windows, providing the building’s external entrance and natural light. The exposed east and west 2.2m end walls each have two small windows.

    Module 2 sits in the centre of the layout, with its long sides connected to the neighbouring modules. Its exposed east end contains two small windows, and its exposed west end contains a further two small windows.

    Module 3 forms the southern side. Its east and west end walls each contain two small windows. On the exposed 5.9m south wall, two top-only high-level windows provide additional daylight while retaining more solid wall area at normal working height.

    Internal fit-out

    The included internal fit-out comprises a kitchenette, WC and shower. Together with the approximately 34 m² floor area, these facilities allow the building to be planned around the day-to-day welfare needs of a construction workforce, including eating, changing or drying space and washing facilities.

    • Kitchenette for canteen use
    • Separate WC provision
    • Shower facility
    • Connected single-storey interior
    • Multiple small and high-level windows

    The precise allocation of canteen and drying areas should be confirmed during order development, based on workforce numbers and the intended operation of the site. The listed configuration defines the building size, external openings and core fitted facilities without assuming additional furniture or site equipment.

    Price and programme

    The indicative price is £32,250 ex VAT, or £38,700 inc VAT, for the standard fitted specification described here. Delivery, groundworks and site-specific works are quoted separately because access, distance, foundations and service requirements vary between construction sites. Alternative arrangements can be explored using the P600 configurator.

    A typical lead time is 8–12 weeks from order and approval of the final specification. Programme dates depend on the agreed fit-out, current production schedule, delivery planning and whether the receiving site is ready for installation.

    Siting requirements

    The building requires a prepared, level base suitable for the three-module arrangement. The site must also provide suitable delivery access, space for unloading and lifting, and clear coordination around nearby structures or active works. Electrical, water and drainage connections must be assessed for the specific location, with any required groundworks and site connections priced separately.

    Adacon designs, manufactures and delivers the P600 system, with completed buildings delivered and installed across the UK. Final siting requirements are established from the project location and site conditions.

    Full specification

    3 P600 modules (single storey), wide layout, 5.9m x 6.6m footprint, approx 34 m2 internal floor area.
Exterior: smooth cladding in Light grey. Roof: flat roof with slim fascia.
Module 1 (ground floor) exposed walls — north (5.9m side): Small window + Glazed door (single) + Small window; east (2.2m end): Small window + Small window; west (2.2m end): Small window + Small window.
Module 2 (ground floor) exposed walls — east (2.2m end): Small window + Small window; west (2.2m end): Small window + Small window.
Module 3 (ground floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Top-only window (high level) + Top-only window (high level); west (2.2m end): Small window + Small window.
Internal fit-out includes: kitchenette, WC, shower.
