Modular Cafés
3-Module P600 Modular Café with Kitchenette and WC

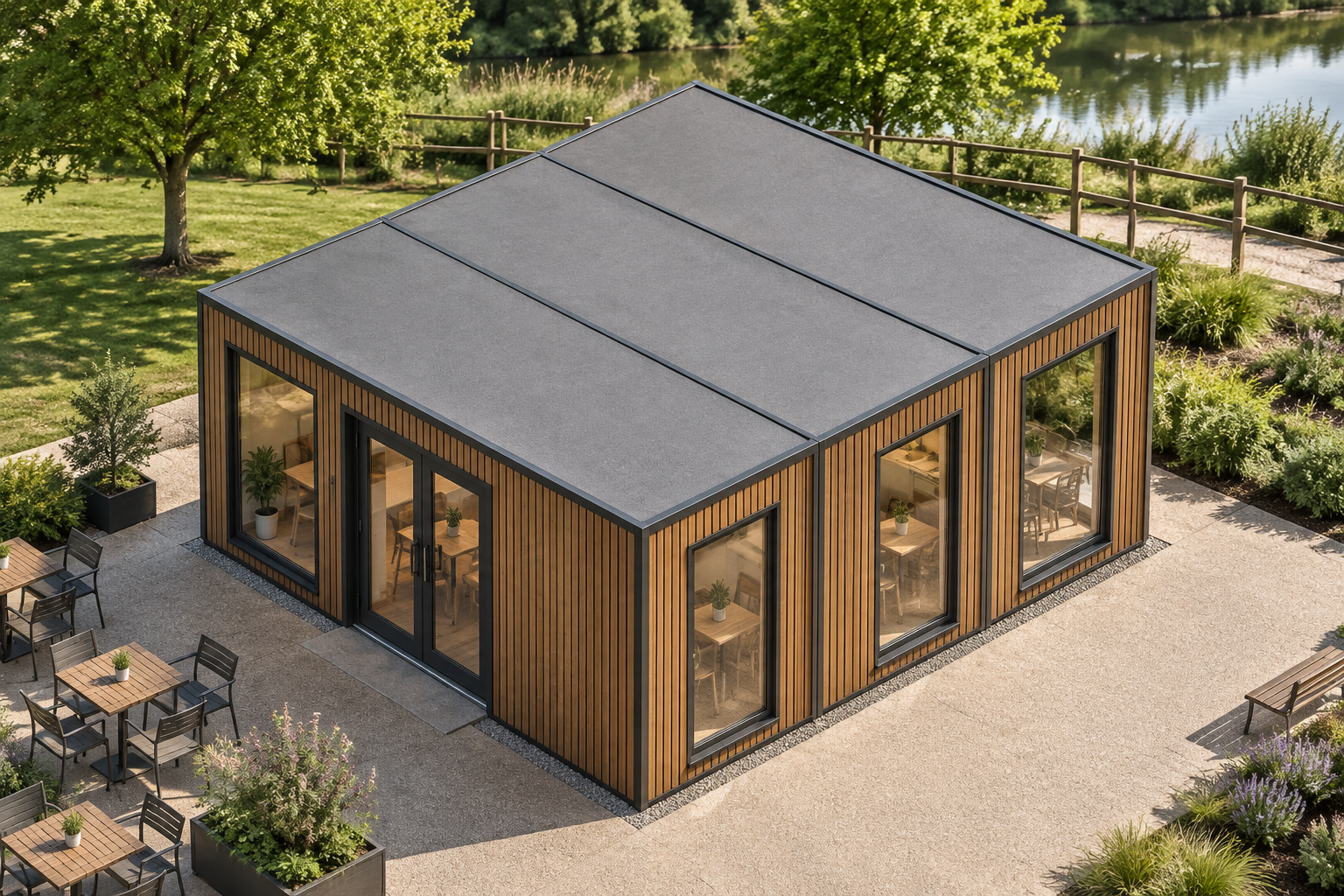

This single-storey modular café combines three P600 modules in a wide 5.9m x 6.6m configuration, providing approximately 34 m² of usable internal space. It suits coffee operators, parks and visitor attractions seeking a dedicated Retail & Hospitality building with a requested kitchenette and WC.
£40,700ex VAT
£48,840 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 3
- Storeys
- 1
- Floor area
- 34 m²
- Footprint
- 5.9m x 6.6m footprint
Design highlights
- Three linked P600 modules in a wide layout
- Single-storey 5.9m x 6.6m footprint
- Approximately 34 m² usable internal area
- Glazed double entrance door
- Six full-size end-wall windows and two large windows
- Teak ARLINE 24136 vertical slatted cladding
- Requested kitchenette and WC
Wide three-module café layout
This P600 configuration comprises three steel-framed modules linked side by side across a single storey. The resulting building has a 5.9m x 6.6m footprint and provides approximately 34 m² of usable internal floor area. Each module measures 5.9m x 2.2m, with an approximate usable interior of 5.7m x 2.0m. The external module height is 2.40m, while the internal ceiling height is 2.16m.
Designed as a modular café, the wide arrangement creates a practical enclosed space for serving customers and organising back-of-house functions. The final positioning of the requested kitchenette and WC will be confirmed as part of the quoted layout rather than assumed from the external configuration.
Doors, windows and natural light
Module 1 has a glazed double door on its exposed north wall, providing the principal customer entrance. Its exposed east and west end walls each contain a full-size window. Module 2 also has a full-size window in each exposed end wall, to the east and west.
Module 3 has full-size windows in its exposed east and west end walls. Its exposed south wall contains two large windows. Together, these openings provide glazing around the available outer walls while retaining a clear entrance point through Module 1.
Selected external treatment
The exposed walls specified in this design receive Teak ARLINE 24136 slatted cladding, applied between the frame with vertical boards. The selected areas are the north, east and west walls of Module 1; the east and west walls of Module 2; and the east, south and west walls of Module 3.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is included in this stored configuration. Final fixture, colour and finish details are confirmed by quotation.
Requested café fit-out
A kitchenette and WC have been requested for the final internal layout. The exact arrangement, service requirements and room divisions remain subject to design confirmation. Where the WC is incorporated, the toilet room requires hygienic wall panels and wet-room PVC flooring.
Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard, alternative hygienic-panel styles and room-by-room flooring selections are available as choices or upgrades but are not included unless they are expressly confirmed in the quotation. The configuration can be reviewed through the P600 configurator.
Price and site considerations
The indicative configured estimate is £40,700 excluding VAT, or £48,840 including VAT, subject to quotation. This figure reflects the stored three-module configuration, including its selected openings and external treatment, but the cladding cost is not separately itemised.
Transport is priced according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are separate. Final siting is subject to survey, including confirmation of access, lifting requirements, ground conditions, service connections and any constraints affecting placement.
- Three linked P600 modules across one storey
- Approximately 34 m² of usable internal floor area
- 5.9m x 6.6m overall footprint
- Requested kitchenette and WC layout
- Teak vertical slatted treatment on selected exposed walls
- Glazed double entrance door and multiple windows
Full specification
3 P600 modules (single storey), wide layout, 5.9m x 6.6m footprint, approx 34 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE 24136 slatted applied to exposed walls between the frame in Teak. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 1 East wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 1 West wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 2 East wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 2 West wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 3 East wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 3 South wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 3 West wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Glazed door (double); east (2.2m end): Full-size window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; west (2.2m end): Full-size window. Module 3 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; south (5.9m side): Large window + Large window; west (2.2m end): Full-size window. Requested fit-out to confirm in the final layout: kitchenette, WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
