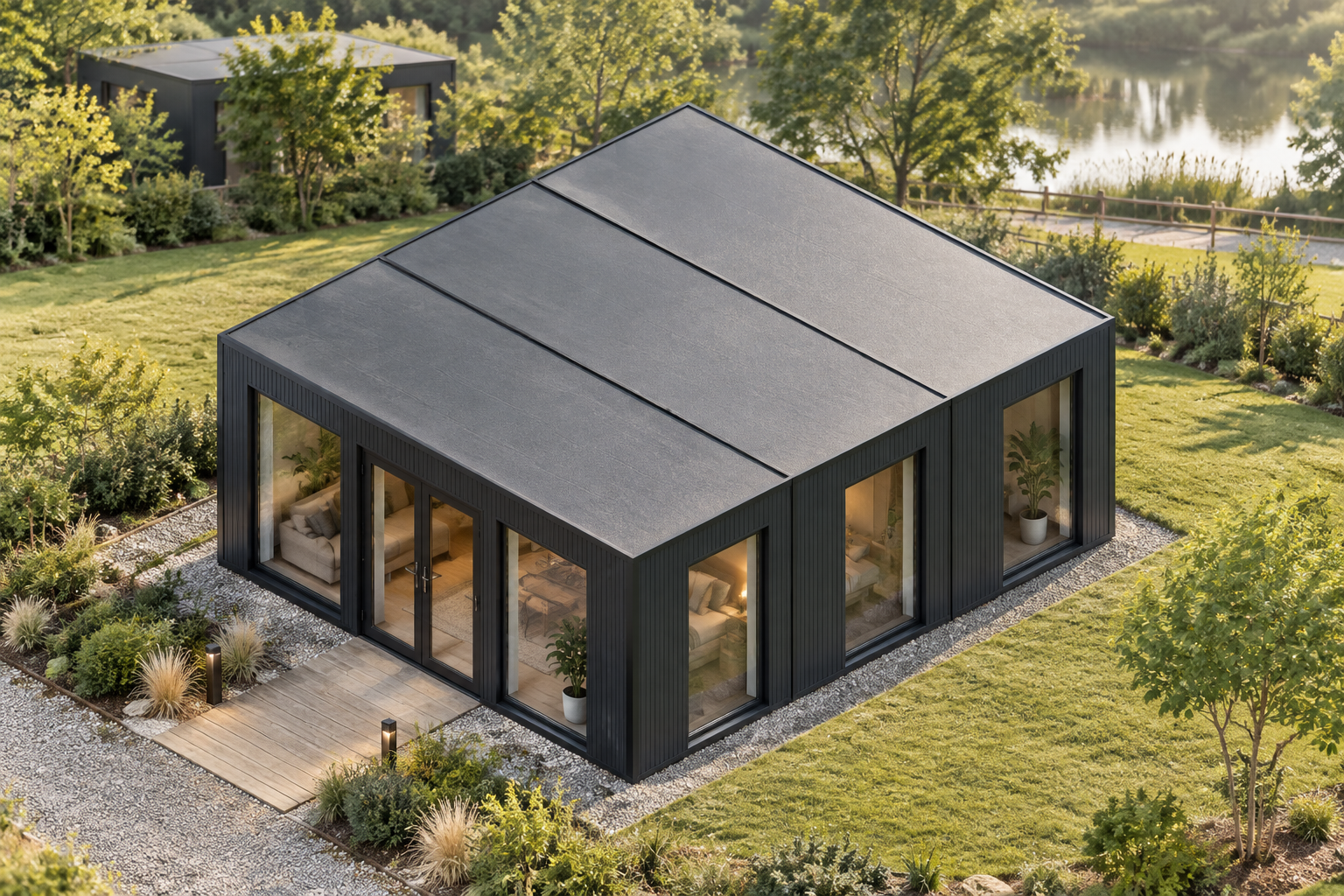

Single-storey modular holiday lodge in a landscaped holiday park setting. — This wide three-module P600 configuration is designed as a holiday lodge for parks, glamping sites and short-let operators.

Holiday Lodges

3-Module P600 Holiday Lodge with Glazed Entrance

This single-storey holiday lodge links three P600 modules in a wide 5.9m x 6.6m external footprint. It suits holiday parks, glamping sites and short-let operators seeking a spacious glazed layout with a kitchenette, WC and shower requested for the final plan.

£40,700ex VAT

£48,840 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.

Made to order. Build and delivery timing will be confirmed with your quotation.

Call about this item

PLACE ORDER

Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.

Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.

Change the layout in the configurator

Modules: 3
Storeys: 1
Approx. usable internal area: 34.2 m² before partitions
External dimensions: 5.9m x 6.6m footprint

Design highlights

Three linked P600 modules in a single-storey wide layout
5.9m x 6.6m external footprint
Approx. 34.2m² usable internal area before partitions
Double glazed entrance door and multiple large windows
Anthracite ARLINE AR14514 vertical fine-ribbed cladding
Kitchenette, WC and shower requested for the final layout
Flat roof with approximately 120mm steel-frame fascia

Wide three-module arrangement

This P600 configuration brings together three steel-framed modules in a single-storey, wide layout. Each module measures 5.9m x 2.2m externally, creating an overall external footprint of 5.9m x 6.6m. The building is 2.40m high externally, with a 2.16m internal ceiling.

Each module has an approximate usable interior of 5.7m x 2.0m. Across the three modules, the conservative allowance is approximately 34.2m² of usable internal area before partitions. A connected open arrangement may provide more usable space, depending on the final room layout. This configuration is intended as a holiday lodge for holiday parks, glamping sites and short-let accommodation.

Glazing and entrance arrangement

The exposed walls have a defined pattern of large windows and a double glazed door. These openings provide glazing across both long and end elevations while retaining the wide, linked-module form.

Module 1: its north-facing 5.9m wall has a large window, double glazed door and second large window. Its east and west 2.2m ends each have one large window.
Module 2: its exposed east and west 2.2m ends each have one large window.
Module 3: its south-facing 5.9m wall has two large windows. Its east and west 2.2m ends each have one large window.

Anthracite external finish

The selected exposed outside walls are finished between the frame in Anthracite ARLINE AR14514 fine-ribbed cladding, using vertically arranged boards. This selection applies to the north, east and west walls of Module 1; the east and west walls of Module 2; and the east, south and west walls of Module 3.

Above, the configuration uses a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified. Final fixture, colour and finish details are confirmed in the quotation rather than guaranteed from illustrative material.

Requested kitchenette and washroom fit-out

A kitchenette, WC and shower have been requested, with their exact positions and room divisions to be confirmed in the final layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard. Hygienic bathroom panels are available as an optional finish, while the shower room uses wet-room PVC flooring.

Plaster applies outside bathroom walls when that finish is selected. Elsewhere, insulated sandwich panels are the included internal wall finish. Any alternative finishes and their coverage depend on the confirmed room arrangement and selections made during quotation. The layout can be reviewed through the building configurator.

Indicative estimate and siting

The indicative configured estimate is £40,700 excluding VAT, or £48,840 including VAT, subject to quotation and confirmation of the final fit-out. Transport is priced separately according to the destination postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.

Siting remains subject to a survey of the proposed location, including access and relevant site conditions. The final quotation confirms the building specification, internal arrangement, selected finishes, transport requirements and any site-specific considerations.

Full specification

3 P600 modules (single storey), wide layout, 5.9m x 6.6m footprint, approx 34.2 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m.
Exterior: ARLINE AR14514 fine-ribbed applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia).
Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 East wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 East wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 West wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 East wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 South wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 West wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards. Cladding prices are quote-only and must not be itemised in public copy.
Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; east (2.2m end): Large window; west (2.2m end): Large window.
Module 2 P600 (ground floor) exposed walls — east (2.2m end): Large window; west (2.2m end): Large window.
Module 3 P600 (ground floor) exposed walls — east (2.2m end): Large window; south (5.9m side): Large window + Large window; west (2.2m end): Large window.
Requested fit-out to confirm in the final layout: kitchenette, WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
