3-Module Modular Shower Block with WC

A practical straight-run layout

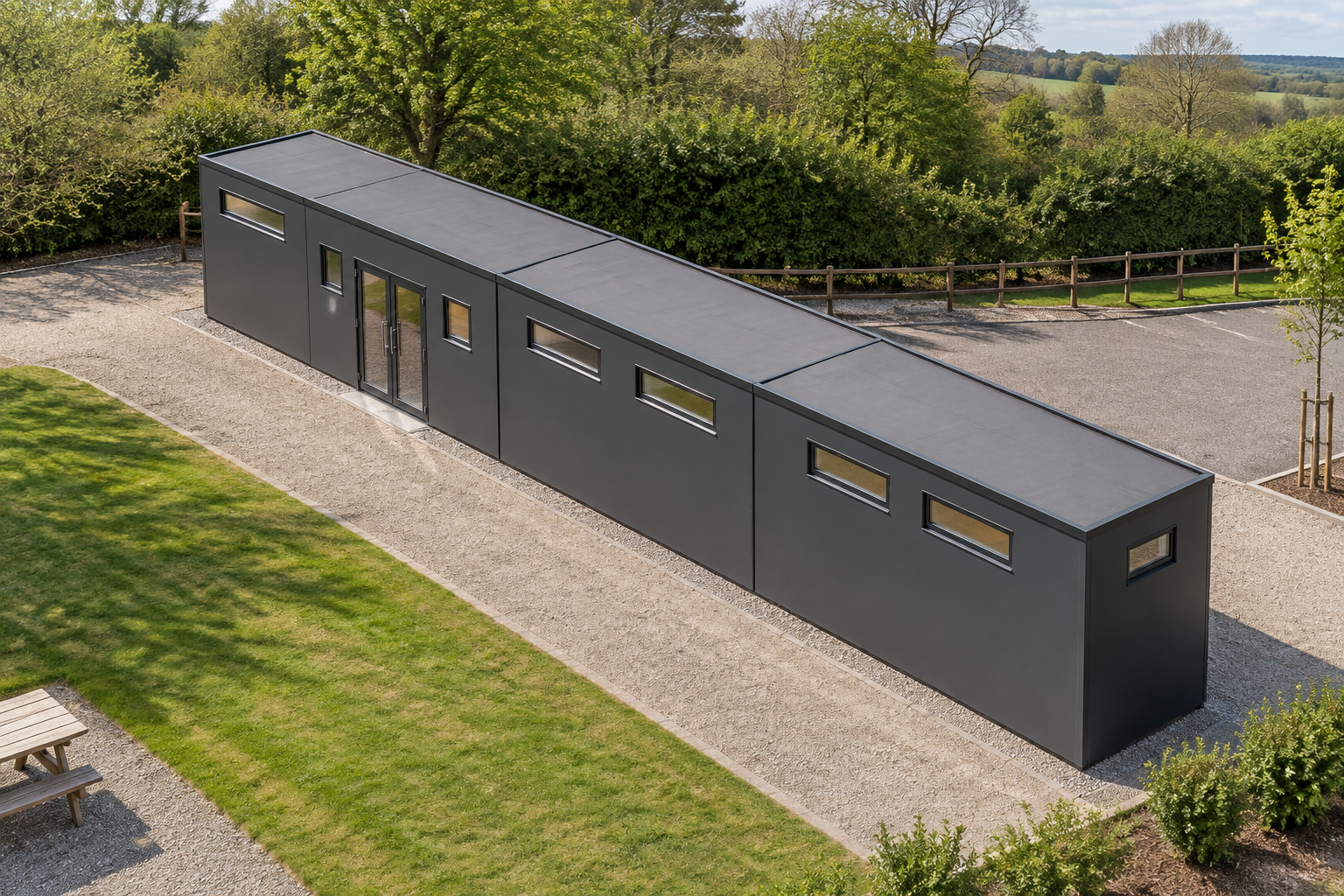

This single-storey configuration places three P600 modules end to end in a straight run, producing a 17.7m x 2.2m footprint and approximately 37m² of internal floor area. It is designed as a modular shower block for the construction sector, while the compact linear format also suits campsites, sports clubs and other sites needing permanent or project-based washroom provision. The modules are supplied as one coordinated P600 building rather than separate cabins.

Openings specified module by module

Module 1 forms the west end of the building. Its exposed north wall has two high-level, top-only windows. The south wall contains a small window on either side of a glazed double door, creating the main entrance and bringing additional light into this part of the building. A further high-level, top-only window is fitted in the exposed west end wall.

Module 2 sits in the centre of the run, so only its north and south walls are exposed. Each long wall has two high-level, top-only windows. These four windows provide daylight while maintaining a higher degree of privacy than conventional full-height glazing, which is particularly relevant for shower and washroom use.

Module 3 completes the eastern end. Its north wall has two high-level, top-only windows, while the exposed east end has one further high-level window. The south wall also contains two high-level, top-only windows. Across the complete configuration, the specified openings comprise twelve high-level windows, two small windows and one glazed double-door entrance.

Exterior and internal fit-out

The exterior is finished in smooth Dark grey cladding, giving the building a clean, restrained appearance suitable for working construction environments and public-facing leisure sites. A flat roof with a slim fascia keeps the overall profile straightforward and contemporary. Internally, the fitted specification includes a WC and shower, providing the core facilities required from a modular shower block without adding unlisted rooms or equipment.

The linked P600 format allows the three modules to operate as one single-storey building while retaining the practical delivery and installation advantages of modular construction. Buyers needing to review the base system or develop a different arrangement can compare options through the P600 configurator.

Price and typical programme

The indicative price is £32,250 excluding VAT, or £38,700 including VAT, for the standard fitted specification described here. This covers the three-module building with its Dark grey exterior, listed doors and windows, and the specified WC and shower fit-out. The following items are assessed and quoted separately:

• Delivery to the site
• Groundworks and preparation
• Site-specific works and requirements

A typical lead time is 8–12 weeks. The confirmed programme will depend on order details, production scheduling, site readiness and the delivery and installation plan agreed for the project.

Preparing the site

The building requires a suitable level, prepared base for its 17.7m x 2.2m footprint. There must also be adequate site access for delivery vehicles and installation operations. Because this configuration includes a WC and shower, the site plan must account for appropriate water, drainage and other required service connections. Ground conditions, access constraints, service routes and any site-specific works should be reviewed before the delivery date. Responsibility for planning permission, Building Regulations requirements and other local approvals should also be established for the intended location and period of use.
