Modular Gyms
3-Module Modular Gym with Glazed Entrance
This single-storey modular gym combines three P600 modules to provide approximately 34 m² of usable internal space. It is configured for home gym owners and small personal-training studios seeking a dedicated training environment.
£41,100ex VAT
£49,320 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 3
- Storeys
- 1
- Floor area
- 34 m²
- Footprint
- 11.8m x 4.4m footprint
Design highlights
- Three linked P600 modules in a single-storey grid
- Approximately 34 m² of usable internal floor area
- 11.8 m x 4.4 m overall footprint
- Single glazed entrance with multiple window formats
- Vertical ARLINE 24136 slatted cladding in Venge
- WC and shower requested for final layout confirmation
- Flat roof with approximately 120 mm steel-frame fascia

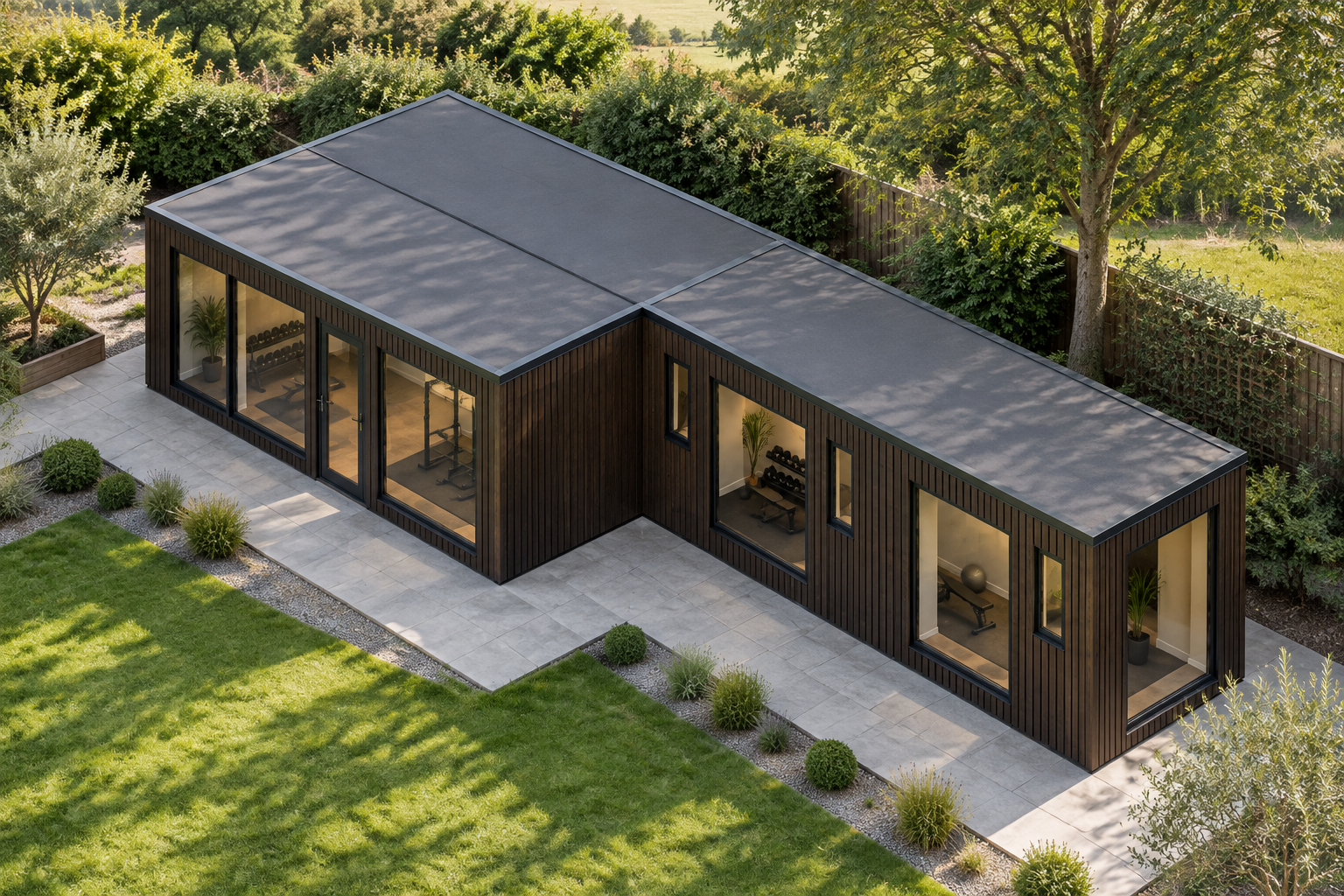

Three-module gym configuration
This modular gym uses three steel-framed P600 modules arranged in a single-storey grid. The configuration occupies an overall 11.8 m x 4.4 m footprint and provides approximately 34 m² of internal usable floor area. Each module measures 5.9 m x 2.2 m, is 2.40 m high externally and has a 2.16 m internal ceiling. The approximate usable interior of each module is 5.7 m x 2.0 m.
The linked layout creates a larger training environment than a standalone module while retaining clearly defined module zones. It is intended for home gym owners and small personal-training studios within the Sport & Leisure sector. Further information about this type of space is available on the modular gyms page.
Windows and glazed entrance
Module 1 has a large window, a single glazed door and a second large window across its exposed north side. Its exposed west end has a full-size window. This provides the configuration with a glazed entrance and multiple external views from the first module.
Module 2 has a small window, large window and second small window on both its exposed north and south sides. A full-size window is positioned on its exposed east end. Module 3 repeats the small, large and small window arrangement on its exposed south side, with full-size windows on both the exposed east and west ends.
Selected exterior treatment
The exposed walls are specified with ARLINE 24136 slatted cladding in Venge, applied between the structural frame. The boards are arranged vertically. This treatment is selected for the north and west walls of Module 1; the north, east and south walls of Module 2; and the east, south and west walls of Module 3.
The building has a flat roof with an approximately 120 mm steel-frame fascia. No additional fascia is specified. Final colours, junction details, fixtures and finishes are confirmed through the project quotation rather than guaranteed from illustrative images.
Requested internal fit-out
A WC and shower have been requested, with their positions and final arrangement to be confirmed in the completed layout. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. Outside those wet areas, the included internal wall finish is white, lightly ribbed insulated sandwich panelling.
Plasterboard and alternative hygienic-panel styles can be selected as upgrades or choices. Room-by-room flooring selections are also configurable and are not fixed by this stored design. The layout and available finish choices can be reviewed through the building configurator, with final details established by quotation.
Estimate, transport and siting
The indicative configured estimate is £41,100 excluding VAT, or £49,320 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Placement and access remain subject to a site survey. The proposed location must be assessed for vehicle access, offloading requirements, levels, foundations or groundworks, service connections and any other site constraints before the final quotation and installation planning are confirmed.
Full specification
3 P600 modules (single storey), grid layout, 11.8m x 4.4m footprint, approx 34 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE 24136 slatted applied to exposed walls between the frame in Venge. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Venge, ARLINE 24136 slatted, vertical boards; Module 1 West wall: Full-wall cladding, Venge, ARLINE 24136 slatted, vertical boards; Module 2 North wall: Full-wall cladding, Venge, ARLINE 24136 slatted, vertical boards; Module 2 East wall: Full-wall cladding, Venge, ARLINE 24136 slatted, vertical boards; Module 2 South wall: Full-wall cladding, Venge, ARLINE 24136 slatted, vertical boards; Module 3 East wall: Full-wall cladding, Venge, ARLINE 24136 slatted, vertical boards; Module 3 South wall: Full-wall cladding, Venge, ARLINE 24136 slatted, vertical boards; Module 3 West wall: Full-wall cladding, Venge, ARLINE 24136 slatted, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (single) + Large window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; east (2.2m end): Full-size window; south (5.9m side): Small window + Large window + Small window. Module 3 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; south (5.9m side): Small window + Large window + Small window; west (2.2m end): Full-size window. Requested fit-out to confirm in the final layout: WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
