2-Module Site Welfare Unit with Kitchenette, WC and Shower
This single-storey site welfare unit combines two P600 modules in an 11.8m-long run, with a kitchenette, WC and shower requested for the final layout. It suits construction sites requiring practical canteen, drying-room and WC facilities.
£27,800ex VAT
£33,360 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 2
- Storeys
- 1
- Approx. usable internal area
- 22.8 m² before partitions
- External dimensions
- 11.8m x 2.2m footprint
Design highlights
- Two P600 modules in a single-storey run
- 11.8m x 2.2m external footprint
- Approx. 22.8m2 usable internal area before partitions
- Grey ARLINE AR16016 vertical grooved-plank cladding
- Single glazed entrance door and multiple small windows
- Kitchenette, WC and shower requested for final layout
- Flat roof with approximately 120mm steel-frame fascia

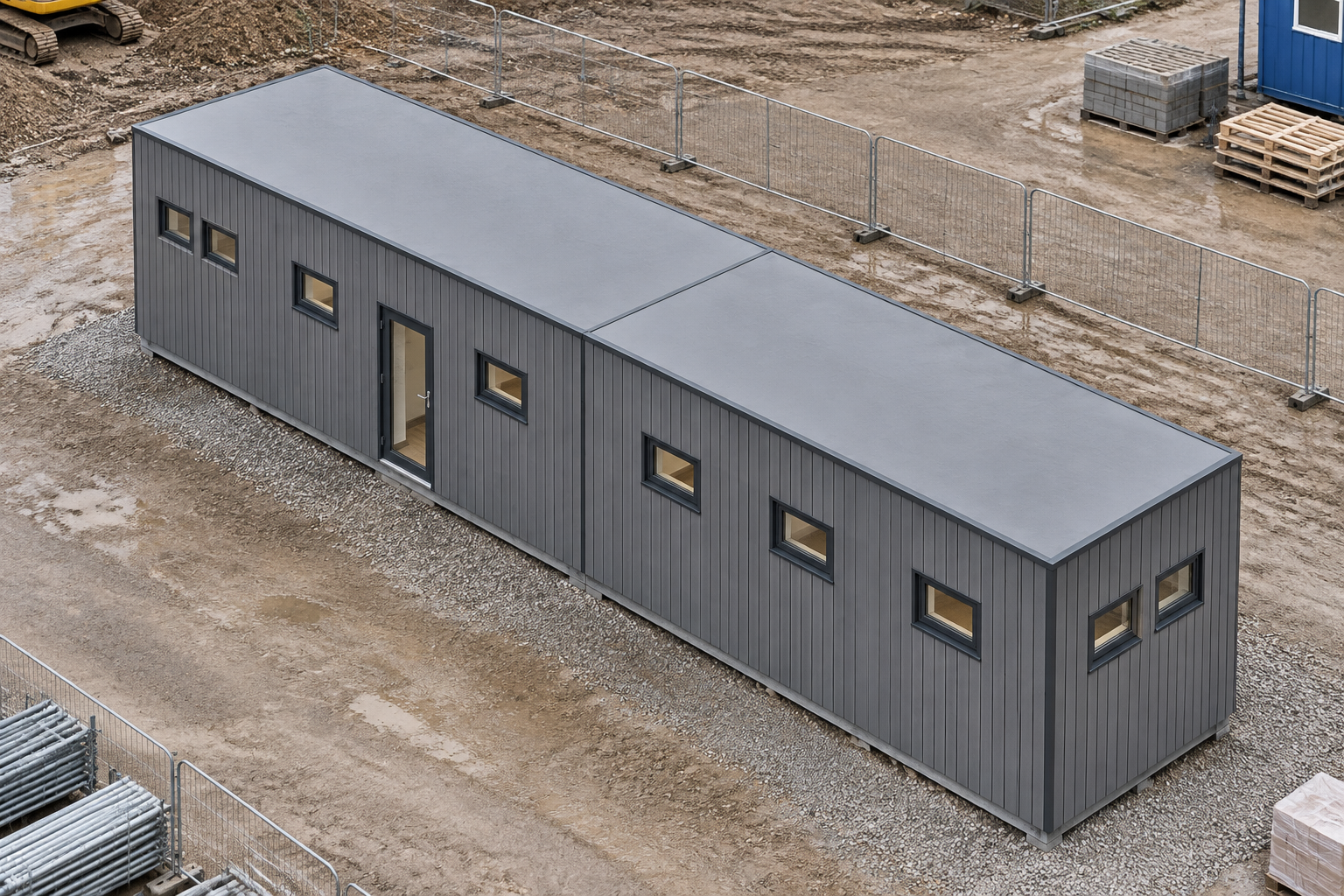

Two P600 modules in a single-storey run
This configuration uses two P600 steel-framed modules connected end to end in a straight, single-storey run. The external footprint is 11.8m x 2.2m, with an approximate usable internal area of 22.8m2 before partitions. This is based on a conservative allowance of approximately 5.7m x 2.0m per module; a connected open layout may provide more usable space.
Each module is 5.9m x 2.2m externally and 2.40m high, with an internal ceiling height of 2.16m. The arrangement is intended as a site welfare unit for the construction sector, particularly where canteen, drying-room and WC facilities need to be brought together within a compact linear building.
Windows and external doors
The exposed walls have a defined set of openings. Module 1 has three small windows on its north side. Its south side has a small window, a single glazed door and a second small window, while the exposed west end has two small windows.
Module 2 also has three small windows on its north side and three small windows on its south side. Its exposed east end has two small windows. The adjoining ends connect the two modules as one run rather than forming exposed external walls.
Grey grooved-plank exterior
All exposed outside walls are selected with Grey ARLINE AR16016 grooved-plank cladding applied between the frame. The boards run vertically across the north, south and west walls of Module 1 and the north, south and east walls of Module 2. Cladding costs are confirmed as part of the project quotation and are not itemised publicly.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is selected for this configuration.
Requested welfare fit-out
A kitchenette, WC and shower are requested, with their precise positions and the resulting room divisions to be confirmed in the final layout. This allows the internal arrangement to be coordinated around the required welfare functions without presenting an unconfirmed partition plan as fixed.
Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels available as an optional selection. The shower room uses wet-room PVC flooring. Where selected, plaster applies outside the bathroom walls. Elsewhere, insulated sandwich panels are the included internal wall finish, while any other finishes are selected to suit the confirmed room layout.
Quotation and site requirements
The indicative configured estimate is £27,800 excluding VAT, or £33,360 including VAT, subject to quotation and confirmation of the final specification. The stored design can be reviewed through the building configurator, but final fixtures, finishes and room details are established by quotation.
Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate. Siting remains subject to survey, including access, ground conditions and the practical requirements for placing the two-module run.
Full specification
2 P600 modules (single storey), run layout, 11.8m x 2.2m footprint, approx 22.8 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Grey. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 1 South wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 East wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 South wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Small window + Small window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Small window + Small window; south (5.9m side): Small window + Small window + Small window. Requested fit-out to confirm in the final layout: kitchenette, WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
