Site Offices
Two-Module Site Office with Kitchenette and WC

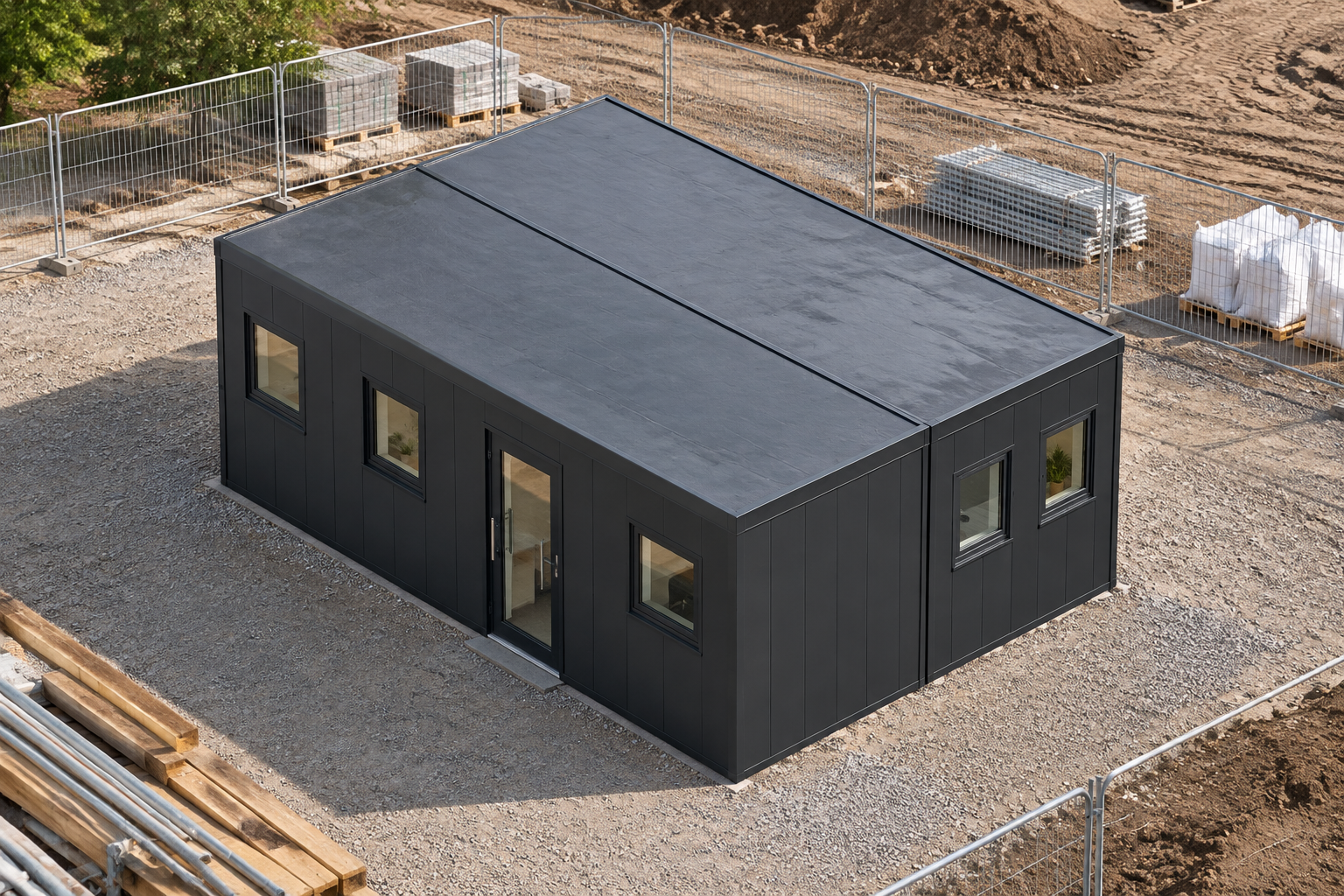

This single-storey P600 site office combines two modules in a wide 5.9m x 4.4m configuration, with a kitchenette and WC requested for the final layout. It is suited to main contractors and site managers who need a practical office for an active construction site.
£25,800ex VAT
£30,960 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 2
- Storeys
- 1
- Approx. usable internal area
- 22.8 m² before partitions
- External dimensions
- 5.9m x 4.4m footprint
Design highlights
- Two P600 modules in a single-storey wide layout
- 5.9m x 4.4m external footprint
- Approximately 22.8m² usable internal area before partitions
- Black Grey RAL 7021 smooth vertical insulated panels
- Single glazed entrance door with small and large windows
- Flat roof with approximately 120mm steel-frame fascia
- Kitchenette and WC requested for final layout confirmation
Wide two-module office configuration
This configuration uses two P600 steel-framed modules arranged as a single-storey, wide-format site office. The external footprint is 5.9m x 4.4m, providing approximately 22.8m² of usable internal area before partitions, based on a conservative per-module allowance. Connected open layouts may provide more usable space, depending on the final internal arrangement.
Each module measures 5.9m x 2.2m, with an external height of 2.40m and an internal ceiling height of 2.16m. The approximate usable interior of each module is 5.7m x 2.0m. The configuration is intended for the Construction sector and provides a defined base for main contractors, site managers and project teams. Further applications can be viewed under site offices.
Windows and entrance
The exposed north wall of Module 1, along the 5.9m side, has a single glazed door positioned between two small windows. Its east and west 2.2m end walls each have two small windows.
Module 2 has two small windows on both its east and west 2.2m end walls. The exposed south wall, along the 5.9m side, has one large window positioned between two small windows. These openings are specific to the stored configuration and should be confirmed alongside the final quotation and layout drawings.
Selected external finish and roof
The exposed outside walls use the included vertical insulated sandwich panels in Black Grey, RAL 7021, with a smooth finish. The selected walls are:
- Module 1: north, east and west walls
- Module 2: east, south and west walls
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is selected for this configuration.
Requested internal fit-out
A kitchenette and WC are requested, with their positions, dimensions and final specifications to be confirmed in the completed room layout. Approximately 22.8m² of usable internal area is stated before any partitions are introduced, so the finished room sizes will depend on the agreed arrangement.
Insulated sandwich panels are the included wall finish outside the WC or bathroom area. Where selected, plaster applies to the outside faces of bathroom walls. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, while hygienic panels are optional. Wet-room PVC flooring applies to shower rooms, although a shower is not specified in this stored configuration. Other finishes must be selected for the final room layout, and illustrated fixtures or finishes are not guaranteed unless confirmed by quotation.
Estimate, transport and siting
The indicative configured estimate is £25,800 excluding VAT, or £30,960 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Final siting is subject to survey, including confirmation of access and relevant site conditions. The stored arrangement can be reviewed through the building configurator, but the quotation and final layout documentation determine the supplied details.
Full specification
2 P600 modules (single storey), wide layout, 5.9m x 4.4m footprint, approx 22.8 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Black Grey (RAL 7021). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 East wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 West wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 2 East wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 2 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 2 West wall: Standard insulated panel, Black Grey (RAL 7021), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Glazed door (single) + Small window; east (2.2m end): Small window + Small window; west (2.2m end): Small window + Small window. Module 2 P600 (ground floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Small window + Large window + Small window; west (2.2m end): Small window + Small window. Requested fit-out to confirm in the final layout: kitchenette, WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
