Single-Module P600 Modular Toilet Block
This single-storey P600 configuration provides a compact modular toilet block within one 5.9m x 2.2m module. It suits construction sites, events and sports grounds requiring permanent WC provision.
£14,100ex VAT
£16,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Floor area
- 11 m²
- Footprint
- 5.9m x 2.2m footprint
Design highlights
- One P600 module arranged over a single storey
- 5.9m x 2.2m footprint with approximately 11 m² usable area
- 2.40m external height and 2.16m internal ceiling

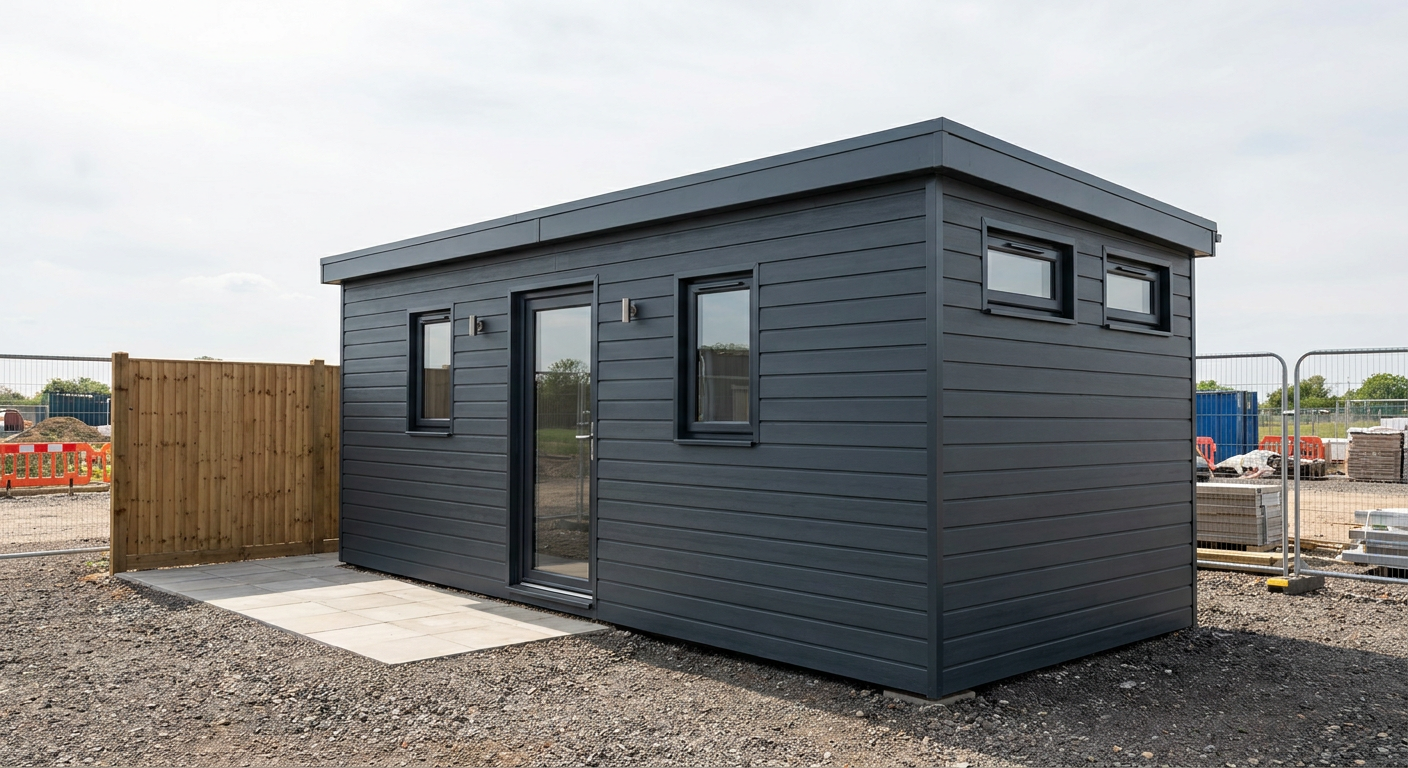

- Anthracite Smooth plank cladding on all exposed walls
- Flat roof with approximately 120mm steel-frame fascia
- High-level and small windows with a single glazed door
- Requested WC fit-out subject to final layout confirmation
Compact single-module configuration
This exact stored design uses one steel-framed P600 module arranged over a single storey. Its external footprint is 5.9m x 2.2m, providing approximately 11 m² of usable internal floor area. The approximate usable interior measures 5.7m x 2.0m. External module height is 2.40m, with a 2.16m internal ceiling height.
The configuration is intended as a modular toilet block for the construction sector, while also suiting events and sports grounds that need permanent WC provision. Further context for this type of building is available under modular toilet blocks. As the requested WC arrangement remains subject to confirmation, the final internal layout will be established at quotation stage.
Windows, door and external finish
The north-facing 5.9m wall has two top-only high-level windows. The east-facing 2.2m end and west-facing 2.2m end each have one top-only high-level window. On the south-facing 5.9m wall, the stored design places a single glazed door between two small windows. These openings are specific to this one-module configuration.
All four exposed external walls are finished with Smooth plank cladding in Antrasit (Anthracite), reference AR16016, applied between the structural frame. The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified in this design.
Requested WC fit-out and internal finishes
A WC has been requested for the fit-out, but its final arrangement must be confirmed as part of the completed layout and quotation. The stored configuration does not establish detailed sanitary fixtures, cubicle positions or internal partitions, so these should not be inferred from indicative imagery or the external opening schedule.
Toilet or shower rooms require hygienic wall panels and wet-room PVC flooring. Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard, alternative hygienic-panel styles and room-by-room flooring selections are available as choices or upgrades, rather than included features of this stored design. Final colours, fixtures and finish details are confirmed by quotation.
Siting and project requirements
The module’s compact footprint can suit sites where space is limited, but placement remains subject to a site survey and confirmation of access. Ground conditions, required groundworks and other site-specific works must be assessed for the intended location. Transport is priced separately according to postcode and access, while offloading or cranage, groundworks and site-specific works are also separate from the configured estimate.
The stored specification can be reviewed in the building configurator. Any final proposal will reflect the confirmed WC layout, selected internal finishes, site conditions and transport requirements rather than relying solely on illustrations.
Indicative configured price
The indicative estimate for this one-module P600 configuration is £14,100 excluding VAT, or £16,920 including VAT. This figure is subject to a formal quotation and should not be treated as a fixed total project cost. Transport, offloading or cranage, groundworks and other site-specific requirements are not included in that estimate.
The quotation will confirm the final scope, including the requested WC fit-out and applicable finish selections. Illustrated fixtures, fittings and decorative details are not guaranteed unless they appear in the agreed quotation.
Full specification
1 P600 module (single storey), single layout, 5.9m x 2.2m footprint, approx 11 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: Smooth plank (AR16016) applied to exposed walls between the frame in Antrasit (Anthracite). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 1 East wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 1 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 1 West wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016). Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); east (2.2m end): Top-only window (high level); south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Top-only window (high level). Requested fit-out to confirm in the final layout: WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
