Modular Classrooms
6-Module L-Shaped Classroom with Requested WC

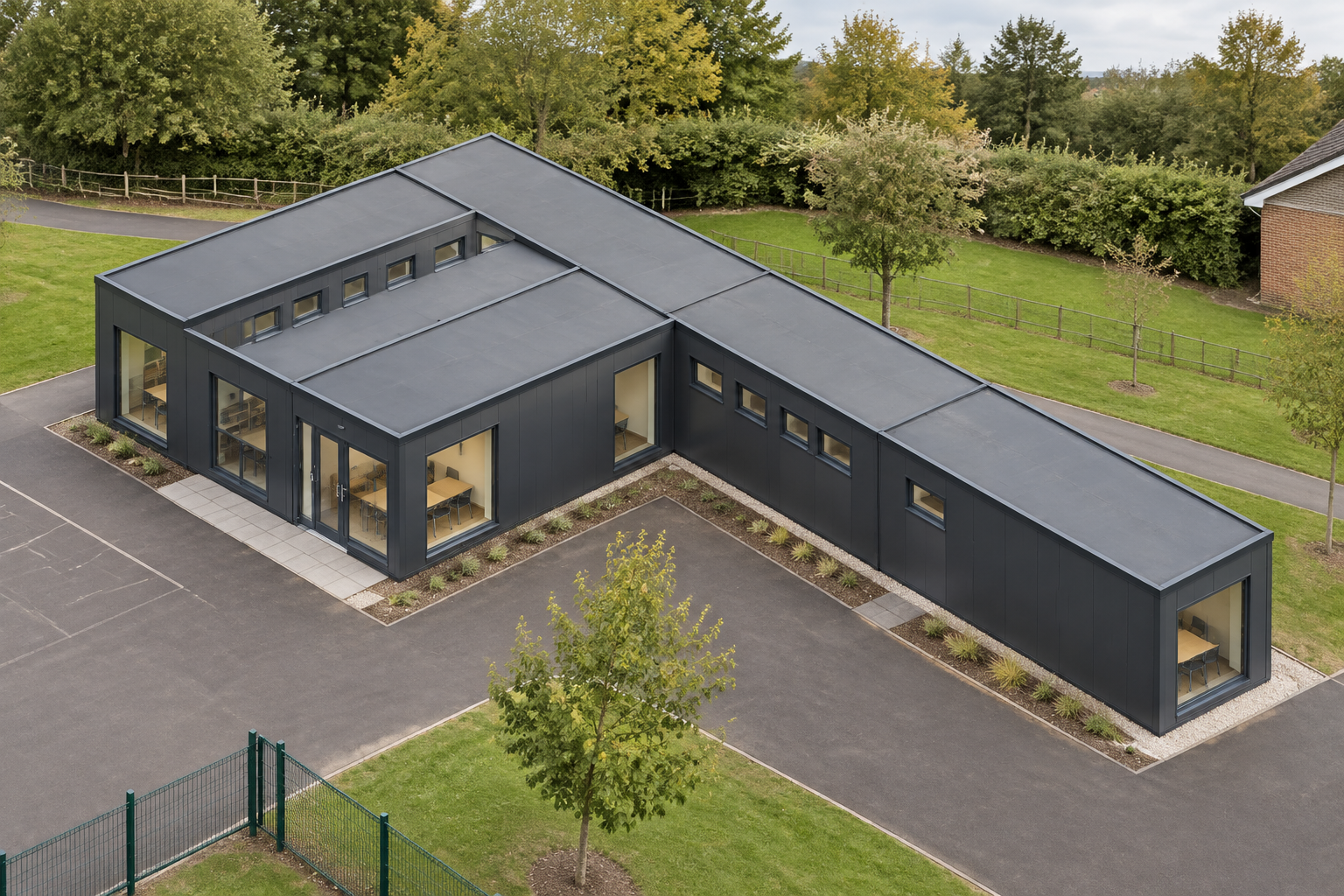

This single-storey modular classroom combines six P600 modules in an L-shaped layout with approximately 68 m² of usable internal floor area. It is configured for primary and secondary schools seeking additional teaching capacity.
£77,400ex VAT
£92,880 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 6
- Storeys
- 1
- Floor area
- 68 m²
- Footprint
- 17.7m x 8.1m footprint
Design highlights
- Six linked P600 modules in a single-storey L-shaped layout
- 17.7m × 8.1m footprint with approximately 68 m² usable area
- Black Grey RAL 7021 vertical insulated exterior panels
- Double-door glazed entrance with configured window arrangement
- Flat roof with approximately 120mm steel-frame fascia
- White lightly ribbed insulated internal wall panels included elsewhere
- Requested WC subject to final layout and quotation
Six-module classroom layout
This stored configuration uses six linked, steel-framed P600 modules to form a single-storey L-shaped modular classroom. The overall footprint is 17.7m × 8.1m, with approximately 68 m² of usable internal floor area. It is intended for primary and secondary schools expanding capacity within the Education sector. Further information about this use type is available under modular classrooms.
Each module measures 5.9m × 2.2m and has an external height of 2.40m, with a 2.16m internal ceiling. The approximate usable interior of each module is 5.7m × 2.0m. The six modules are arranged at ground-floor level only; this configuration does not include an upper storey.
Configured windows and entrance
On Module 1, the exposed 5.9m north wall has a large window, a double-door glazed entrance and a second large window. Its exposed 2.2m west end has one full-size window. Module 2 has three small windows along its exposed 5.9m north wall.
Module 3 has three small windows on its 5.9m north wall, one full-size window on its 2.2m east end and three small windows on its 5.9m south wall. Module 4 has one full-size window on its 2.2m south end and three small windows along its 5.9m west wall. Module 5 has one full-size window on its 2.2m south end. Module 6 has three small windows on its 5.9m east wall and one full-size window on its 2.2m south end.
External panels and roof
The included exterior uses vertical insulated sandwich panels in Black Grey, RAL 7021. The selected smooth panel faces are Module 1 north and west, Module 2 north, Module 3 north, east and south, Module 4 south and west, Module 5 south, and Module 6 east and south. Cladding is subject to quotation and is not itemised publicly. The building has a flat roof with an approximately 120mm steel-frame fascia and no additional fascia.
Requested internal fit-out
A WC has been requested, but its position and final arrangement must be confirmed in the completed layout and quotation. Toilet or shower rooms require hygienic wall panels and wet-room PVC flooring. Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard, other hygienic-panel styles and room-by-room flooring selections are available as choices or upgrades; they are not included unless confirmed in the quotation. Any layout or finish revisions are managed through the stored building configuration. Final fixtures, finishes and details are also confirmed by quotation.
Estimate, transport and siting
The indicative configured estimate is £77,400 excluding VAT, or £92,880 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are separate. Siting remains subject to a suitable site survey, including confirmation of access, levels, ground conditions and the requirements affecting placement of the six-module L-shaped footprint.
Full specification
6 P600 modules (single storey), l-shape layout, 17.7m x 8.1m footprint, approx 68 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Black Grey (RAL 7021). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 West wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 2 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 3 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 3 East wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 3 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 4 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 4 West wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 5 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 6 East wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 6 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Full-size window; south (5.9m side): Small window + Small window + Small window. Module 4 P600 (ground floor) exposed walls — south (2.2m end): Full-size window; west (5.9m side): Small window + Small window + Small window. Module 5 P600 (ground floor) exposed walls — south (2.2m end): Full-size window. Module 6 P600 (ground floor) exposed walls — east (5.9m side): Small window + Small window + Small window; south (2.2m end): Full-size window. Requested fit-out to confirm in the final layout: WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
