Toilet & Shower Blocks
5-Module Toilet and Shower Block
This single-storey toilet and shower block combines five P600 modules in a grid layout with approximately 61 m² of usable internal space. It suits holiday parks, campsites and large construction sites requiring dedicated WC and shower facilities.
£67,700ex VAT
£81,240 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 5
- Storeys
- 1
- Floor area
- 61 m²
- Footprint
- 17.7m x 4.4m footprint
Design highlights
- Five linked P600 modules in a single-storey grid
- 17.7m x 4.4m overall footprint
- Approximately 61 m² of usable internal floor area
- Requested WC and shower fit-out
- Anthracite vertical ARLINE AR16016 grooved-plank cladding
- Glazed double entrance door with small and high-level windows
- Flat roof with approximately 120mm steel-frame fascia

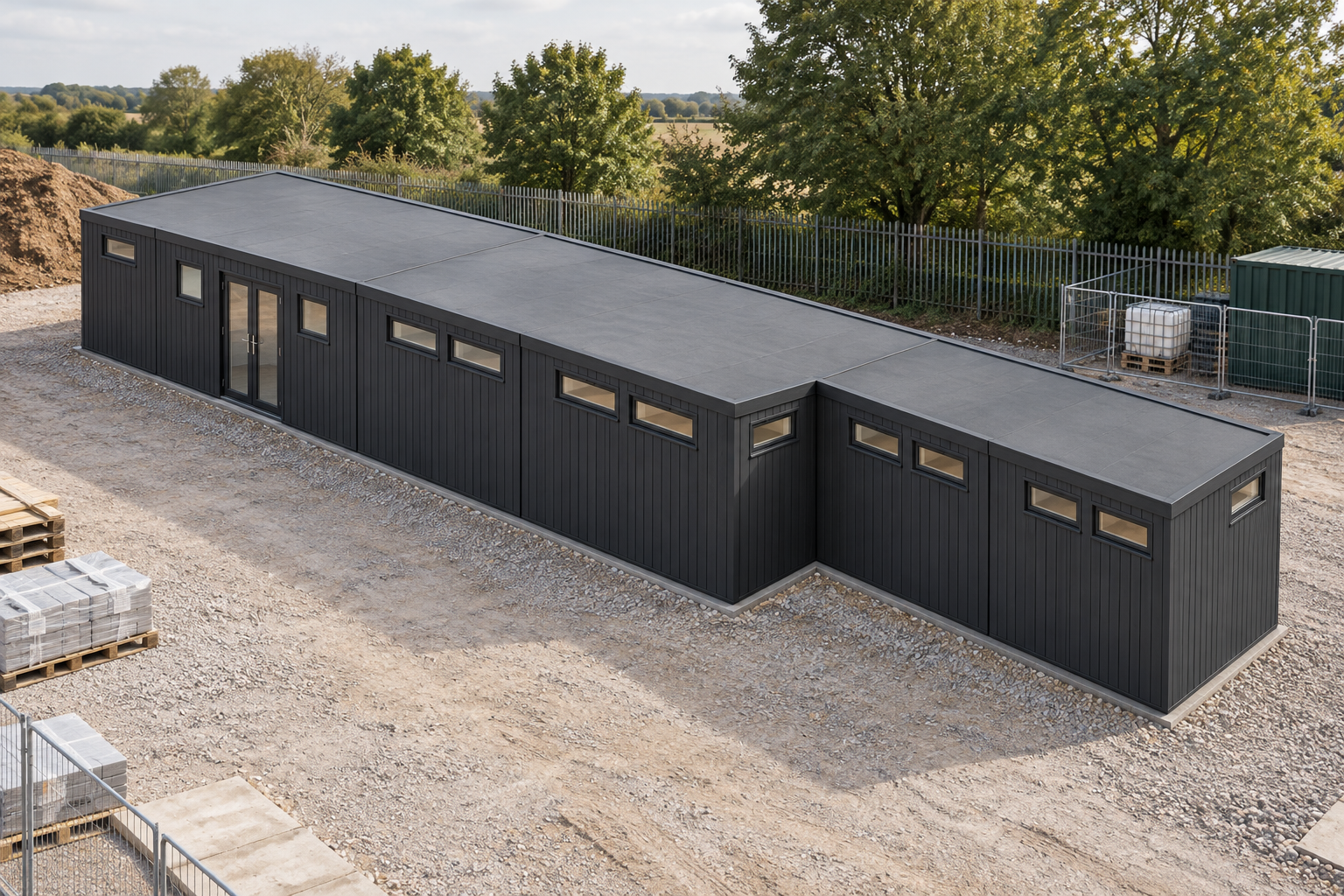

Five-module grid configuration
This stored configuration uses five linked P600 steel-framed modules arranged as a single-storey grid. The completed building has a 17.7m x 4.4m footprint and provides approximately 61 m² of usable internal floor area. Each module measures 5.9m x 2.2m and is 2.40m externally, with an internal ceiling height of 2.16m. The approximate usable interior of each module is 5.7m x 2.0m.
Designed as a toilet and shower block for the Construction sector, the configuration is also relevant to holiday parks and campsites. It provides a substantial modular footprint for a requested WC and shower fit-out, with the final room arrangement confirmed through quotation. Further information about comparable applications is available under Toilet & Shower Blocks.
Doors and windows
The stored arrangement specifies openings across the exposed north, south, east and west elevations. These are fixed to individual modules rather than presented as generic options:
- Module 1: two small windows and a glazed double door on the north wall, plus one high-level window on the west end wall.
- Module 2: two high-level windows on the north wall.
- Module 3: two high-level windows on the north wall, one on the east end wall and two on the south wall.
- Module 4: two high-level windows on the south wall and one on the west end wall.
- Module 5: one high-level window on the east end wall and two on the south wall.
Anthracite external finish
The exposed walls specified in the design receive Anthracite ARLINE AR16016 grooved-plank cladding between the frame. The boards are installed vertically across the selected full-wall elevations of all five modules. The building has a flat roof with an approximately 120mm steel-frame fascia and no additional fascia. Cladding costs form part of the quotation process and are not separately itemised in public pricing.
Requested internal fit-out
WC and shower accommodation has been requested, with the final positions and room arrangement still to be confirmed. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. Elsewhere, the included internal wall finish is formed from white, lightly ribbed insulated sandwich panels. Plasterboard, alternative hygienic-panel styles and room-by-room flooring selections are available as choices or upgrades, but are not included unless confirmed in the final quotation.
The indicative configured estimate is £67,700 excluding VAT, or £81,240 including VAT, and remains subject to quotation. The stored design can be reviewed through the building configurator, but quoted details will determine the final fixtures, finishes and fit-out.
Transport and site considerations
Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate. Final siting is subject to a site survey and assessment of access, levels and project requirements. The stated footprint, internal area and configured estimate relate specifically to this five-module, single-storey arrangement.
Full specification
5 P600 modules (single storey), grid layout, 17.7m x 4.4m footprint, approx 61 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 5 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 5 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Glazed door (double) + Small window; west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level). Module 3 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); east (2.2m end): Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level). Module 4 P600 (ground floor) exposed walls — south (5.9m side): Top-only window (high level) + Top-only window (high level); west (2.2m end): Top-only window (high level). Module 5 P600 (ground floor) exposed walls — east (2.2m end): Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level). Requested fit-out to confirm in the final layout: WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
