Site Offices
5-Module Site Office with Kitchenette and WC
This single-storey site office combines five P600 modules in a grid layout, providing approximately 57 m² of usable internal space. It is configured for main contractors and site managers who need a spacious project office with a requested kitchenette and WC.
£64,500ex VAT
£77,400 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 5
- Storeys
- 1
- Floor area
- 57 m²
- Footprint
- 17.7m x 4.4m footprint
Design highlights
- Five P600 modules in a single-storey grid layout
- 17.7m x 4.4m overall footprint
- Approximately 57 m² of usable internal floor area
- Anthracite Grey RAL 7016 smooth insulated external panels
- Single glazed entrance door with large and small windows
- Requested kitchenette and WC fit-out
- Flat roof with approximately 120mm steel-frame fascia

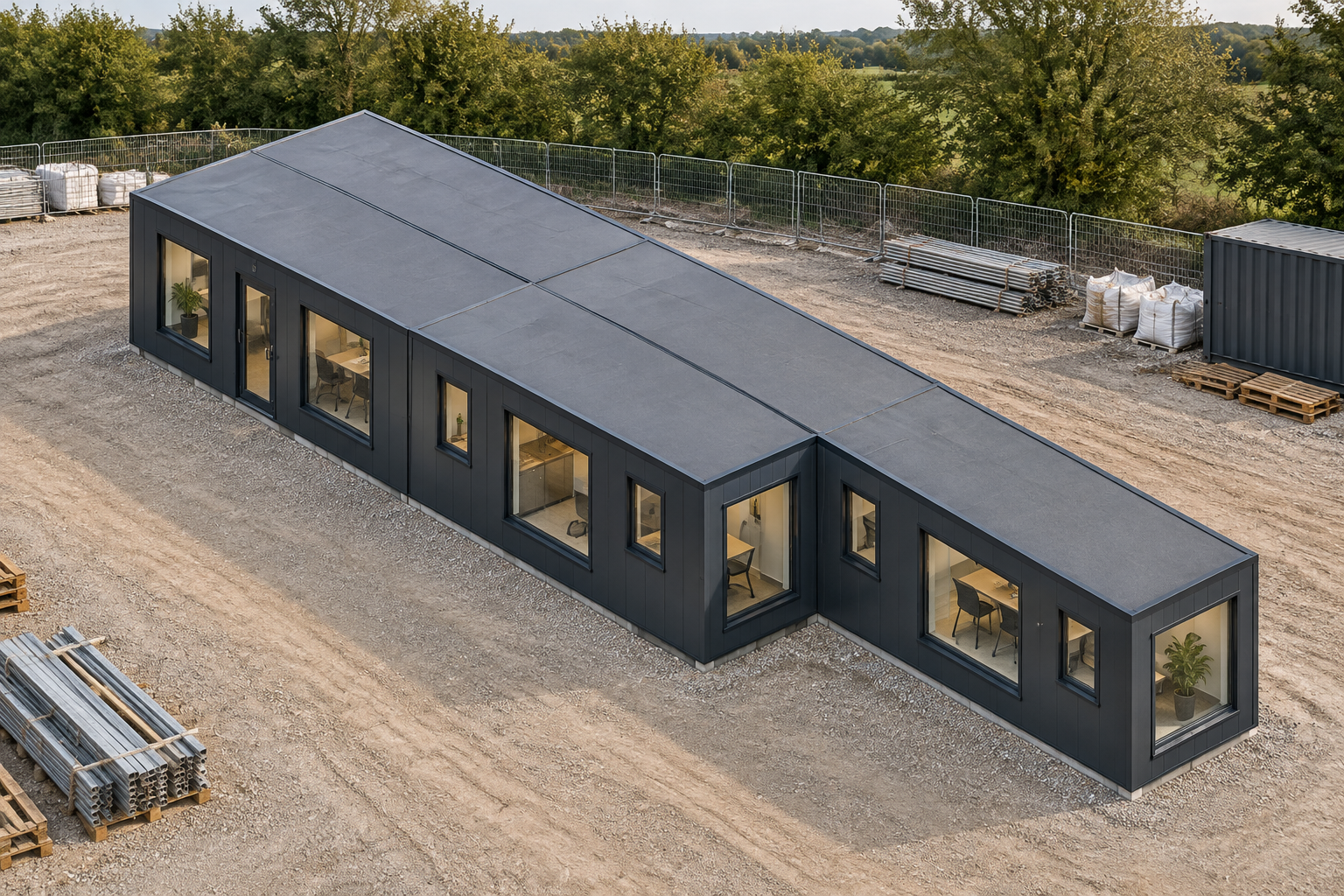

Five linked P600 modules
This configuration uses five steel-framed P600 modules linked in a single-storey grid arrangement. The overall footprint is 17.7m x 4.4m, with approximately 57 m² of usable internal floor area. Each module measures 5.9m x 2.2m externally and has an approximate usable interior of 5.7m x 2.0m.
The modules are 2.40m high externally, with a 2.16m internal ceiling height. Together, they create a substantial project base for the Construction sector, suited to main contractors, site managers and administrative teams. More examples of this type of workspace can be found in our site offices range.
Configured window and door openings
The stored design uses a combination of large and small windows to bring natural light into the exposed sides of the building. Module 1 has two large windows and one single glazed door on its north 5.9m wall, plus a large window on its west 2.2m end.
Module 2 has a small window, large window and second small window across its north wall. Module 3 repeats this arrangement on both its north and south walls, with an additional large window on its east end. Module 4 has the same small, large and small window sequence on its south wall, together with a large window on its west end. Module 5 has a large window on its east end and the three-window arrangement on its south wall.
Anthracite Grey external finish
The exposed external walls use included vertical insulated sandwich panels in Anthracite Grey, RAL 7016. The selected standard insulated panels have a smooth finish. They are applied to the north and west walls of Module 1; the north wall of Module 2; the north, east and south walls of Module 3; the south and west walls of Module 4; and the east and south walls of Module 5.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia has been selected for this configuration. Final fixture and finish details are confirmed in the project quotation.
Requested internal fit-out
A kitchenette and WC have been requested, with their final positions and specifications to be confirmed in the completed layout and quotation. The WC area requires hygienic wall panels and wet-room PVC flooring. Elsewhere, the included internal wall finish is formed from white, lightly ribbed insulated sandwich panels.
Plasterboard finishes, alternative hygienic-panel styles and room-by-room flooring selections are available as choices or upgrades rather than included elements of this stored design. These can be reviewed when refining the building through the module configurator.
Estimate and site requirements
The indicative configured estimate is £64,500 excluding VAT, or £77,400 including VAT, subject to quotation. This price reflects the stored five-module configuration and should not be treated as a final project total.
- Transport is priced according to the delivery postcode and site access.
- Offloading or cranage is priced separately.
- Groundworks and other site-specific works are separate.
- Siting remains subject to a site survey and confirmation of access and project requirements.
Full specification
5 P600 modules (single storey), grid layout, 17.7m x 4.4m footprint, approx 57 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Anthracite Grey (RAL 7016). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 1 West wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 2 North wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 3 North wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 3 East wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 3 South wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 4 South wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 4 West wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 5 East wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 5 South wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (single) + Large window; west (2.2m end): Large window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; east (2.2m end): Large window; south (5.9m side): Small window + Large window + Small window. Module 4 P600 (ground floor) exposed walls — south (5.9m side): Small window + Large window + Small window; west (2.2m end): Large window. Module 5 P600 (ground floor) exposed walls — east (2.2m end): Large window; south (5.9m side): Small window + Large window + Small window. Requested fit-out to confirm in the final layout: kitchenette, WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
