Modular Classrooms
5-Module Single-Storey Modular Classroom
This single-storey modular classroom links five P600 modules in a grid layout, providing approximately 57 m² of usable internal area before partitions. It suits primary and secondary schools seeking additional teaching capacity in the Education sector.
£67,700ex VAT
£81,240 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 5
- Storeys
- 1
- Approx. usable internal area
- 57 m² before partitions
- External dimensions
- 17.7m x 4.4m footprint
Design highlights
- Five linked P600 modules in a single-storey grid
- 17.7m x 4.4m external footprint
- Approximately 57 m² usable internal area before partitions
- One glazed single door and 16 large windows
- Anthracite ARLINE AR16016 vertical grooved cladding
- Flat roof with approximately 120mm steel-frame fascia
- Requested kitchenette and WC fit-out

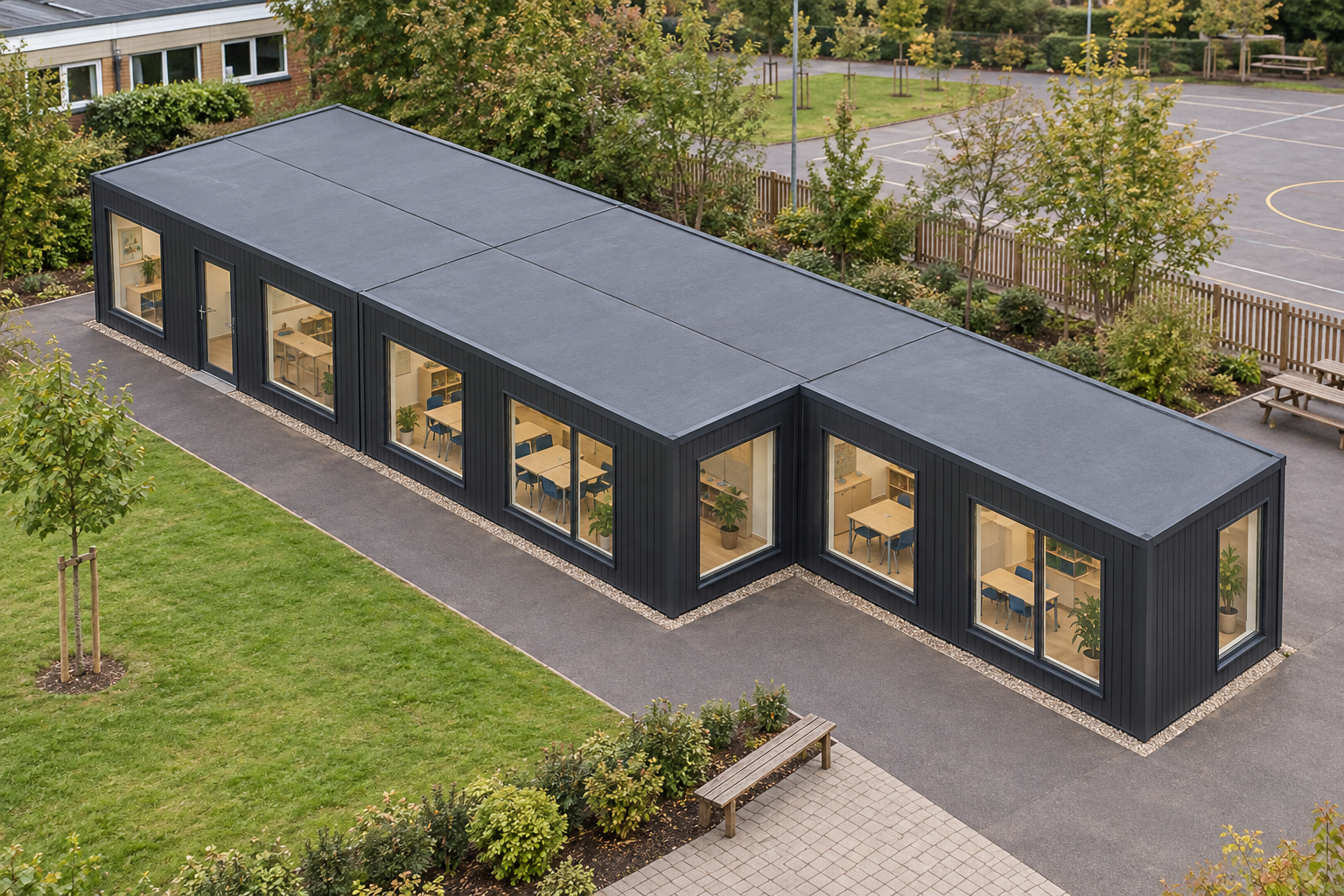

Five linked modules in a grid layout
This configuration uses five steel-framed P600 modules linked as one single-storey modular classroom. The modules occupy a five-module arrangement within a three-by-two grid, creating an external footprint of 17.7m by 4.4m. Based on a conservative allowance of approximately 5.7m by 2.0m usable interior per module, the building provides around 57 m² of usable internal area before partitions. Connected open layouts may provide more space.
Each module measures 5.9m by 2.2m externally and is 2.40m high externally, with an internal ceiling height of 2.16m. The grid can be developed into the final teaching, circulation, kitchenette and WC arrangement during layout confirmation. This makes the configuration relevant to primary and secondary schools expanding capacity through a purpose-planned modular classroom.
Windows and entrance arrangement
The stored design has one glazed single door and 16 large windows distributed across its exposed walls:
- Module 1 has two large windows and the glazed single door on its north side, plus one large window on its west end.
- Module 2 has two large windows on its north side.
- Module 3 has two large windows on its north side, one on its east end and two on its south side.
- Module 4 has two large windows on its south side and one on its west end.
- Module 5 has one large window on its east end and two on its south side.
These openings belong to this stored configuration. Their relationship to the final room divisions, kitchenette and WC will be checked when the internal plan is confirmed by quotation.
Anthracite grooved external finish
Exposed walls are finished between the frame with Anthracite ARLINE AR16016 grooved plank cladding laid as vertical boards. Full-wall cladding is selected for the north walls of Modules 1, 2 and 3; the west walls of Modules 1 and 4; the east walls of Modules 3 and 5; and the south walls of Modules 3, 4 and 5.
The building has a flat roof with an approximately 120mm steel-frame fascia and no additional fascia. The cladding selection forms part of the configured quotation and is not separately itemised in this public description.
Requested internal fit-out
A kitchenette and WC have been requested, with their positions and final specifications to be confirmed in the completed room layout. Elsewhere, insulated sandwich panels are the included internal wall finish. Other wall finishes are selected to suit the final arrangement rather than assumed from illustrations.
Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels available as an option. Plaster applies outside bathroom walls when that finish is selected. Shower rooms use wet-room PVC flooring, although a shower room is not specified in this stored configuration. Final fixtures, finishes and partition details are confirmed by quotation.
Estimate and site considerations
The indicative configured estimate is £67,700 excluding VAT, or £81,240 including VAT, subject to quotation. Transport is priced separately according to postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Siting remains subject to a site survey, including access and project-specific requirements. The final arrangement can be reviewed through the building configurator, but the issued quotation confirms the supplied specification and commercial scope.
Full specification
5 P600 modules (single storey), grid layout, 17.7m x 4.4m footprint, approx 57 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 5 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 5 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (single) + Large window; west (2.2m end): Large window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Large window; south (5.9m side): Large window + Large window. Module 4 P600 (ground floor) exposed walls — south (5.9m side): Large window + Large window; west (2.2m end): Large window. Module 5 P600 (ground floor) exposed walls — east (2.2m end): Large window; south (5.9m side): Large window + Large window. Requested fit-out to confirm in the final layout: kitchenette, WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
