Toilet & Shower Blocks
4-Module Toilet & Shower Block
This single-storey toilet and shower block combines four P600 modules in a straight run, providing approximately 46 m² of usable internal floor area. It suits large construction sites, holiday parks and campsites requiring dedicated WC and shower facilities.
£55,200ex VAT
£66,240 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Floor area
- 46 m²
- Footprint
- 23.6m x 2.2m footprint
Design highlights
- Four P600 modules in a single-storey run
- 23.6m x 2.2m overall footprint
- Approximately 46 m² usable internal area
- Requested WC and shower fit-out
- Anthracite Smooth plank external cladding
- High-level windows across the main elevations
- Glazed double-door entrance to Module 1

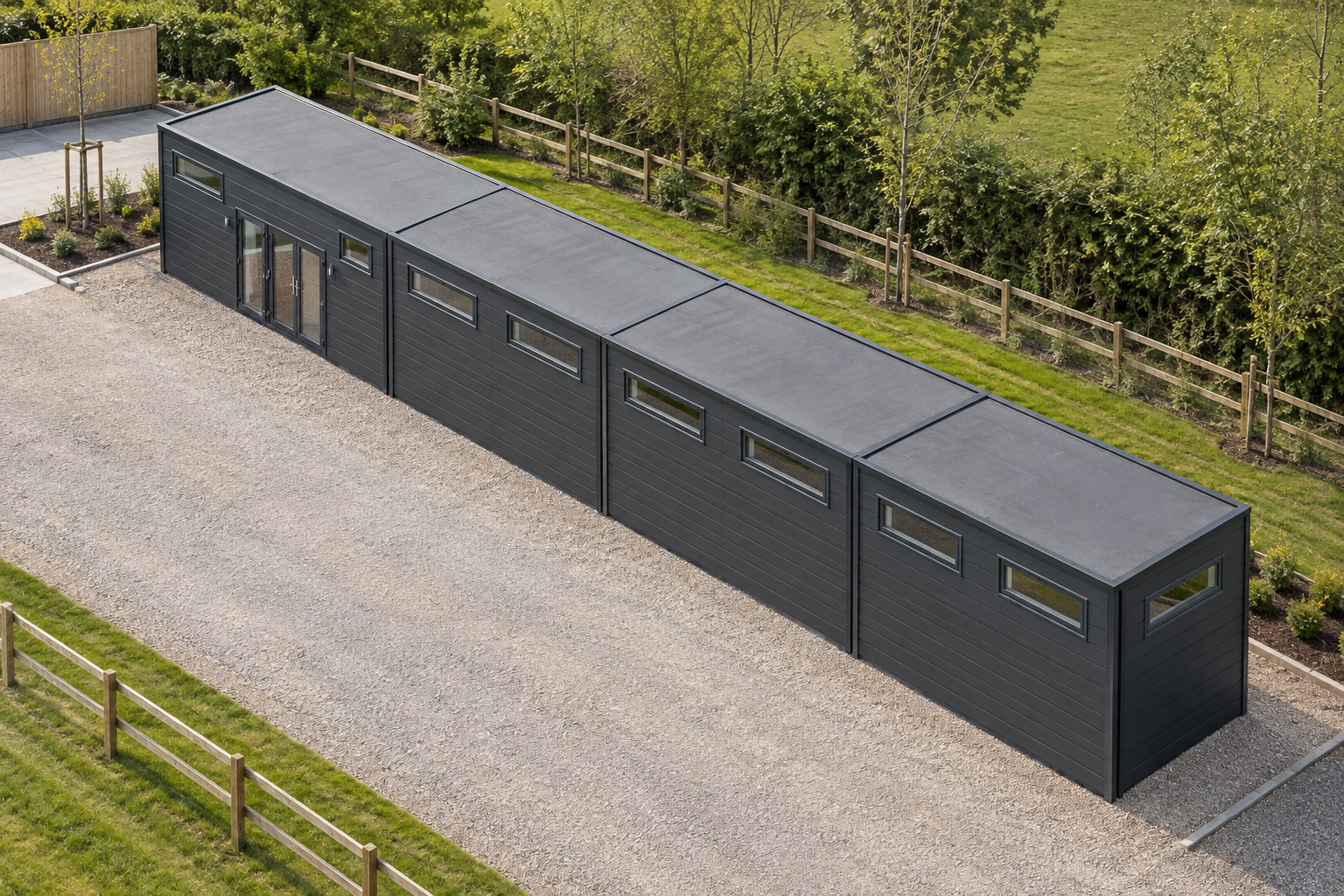

A straight four-module arrangement
This configuration uses four steel-framed P600 modules arranged as a single-storey run. Together, they form a footprint of 23.6m x 2.2m and provide approximately 46 m² of usable internal floor area. Each module measures 5.9m x 2.2m, with an external height of 2.40m, an internal ceiling height of 2.16m and an approximate usable interior of 5.7m x 2.0m.
The long, narrow layout is designed as a toilet and shower block for the Construction sector and is also suited to holiday parks and campsites. The requested WC and shower fit-out remains subject to confirmation in the final internal layout and quotation. Further information about this type of building is available under toilet and shower blocks.
Windows and entrance arrangement
Module 1 forms the western end of the run. Its north elevation has two high-level top-only windows, while the south elevation has two small windows positioned with a glazed double-door entrance. The exposed west end has one high-level top-only window.
Modules 2 and 3 each have two high-level top-only windows on both their north and south elevations. Module 4 has the same arrangement along its north and south sides, with two high-level top-only windows on each elevation. Its exposed east end also has one high-level top-only window. These are the stored openings for this configuration; the internal room arrangement must be coordinated around them when the WC and shower layout is finalised.
Anthracite external finish
All specified exposed walls are finished with Smooth plank cladding in Antrasit (Anthracite), reference AR16016, applied between the structural frame. This covers the north and south elevations across all four modules, the west end of Module 1 and the east end of Module 4. Cladding is included within the configured quotation, but its price is quote-only and is not separately itemised in public pricing.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia has been selected. Final fixture, colour and finish details are confirmed through the project quotation rather than guaranteed solely by illustrations.
Requested washroom fit-out
The stored design requests WC and shower facilities, with the final number, position and division of rooms to be confirmed in the completed layout. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling.
Plasterboard, alternative hygienic-panel styles and room-by-room flooring selections are available as choices or upgrades but are not included specifications for this configuration unless confirmed in the quotation. The design can be reviewed through the building configurator, with final details recorded in the project quote.
Pricing and site requirements
The indicative configured estimate is £55,200 excluding VAT, or £66,240 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Placement and access requirements are subject to a site survey. The survey and quotation will need to account for the 23.6m overall building length, delivery access, lifting requirements, ground conditions and any services needed for the confirmed WC and shower layout.
- Four P600 modules in one single-storey run
- 23.6m x 2.2m overall footprint
- Approximately 46 m² usable internal floor area
- Requested WC and shower facilities
- Anthracite Smooth plank external cladding
- Flat roof with approximately 120mm steel-frame fascia
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 46 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: Smooth plank (AR16016) applied to exposed walls between the frame in Antrasit (Anthracite). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 1 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 1 West wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 2 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 2 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 3 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 3 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 4 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 4 East wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 4 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016). Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); south (5.9m side): Small window + Glazed door (double) + Small window; west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level). Module 3 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level). Module 4 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); east (2.2m end): Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level). Requested fit-out to confirm in the final layout: WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
