Toilet & Shower Blocks
4-Module Toilet and Shower Block

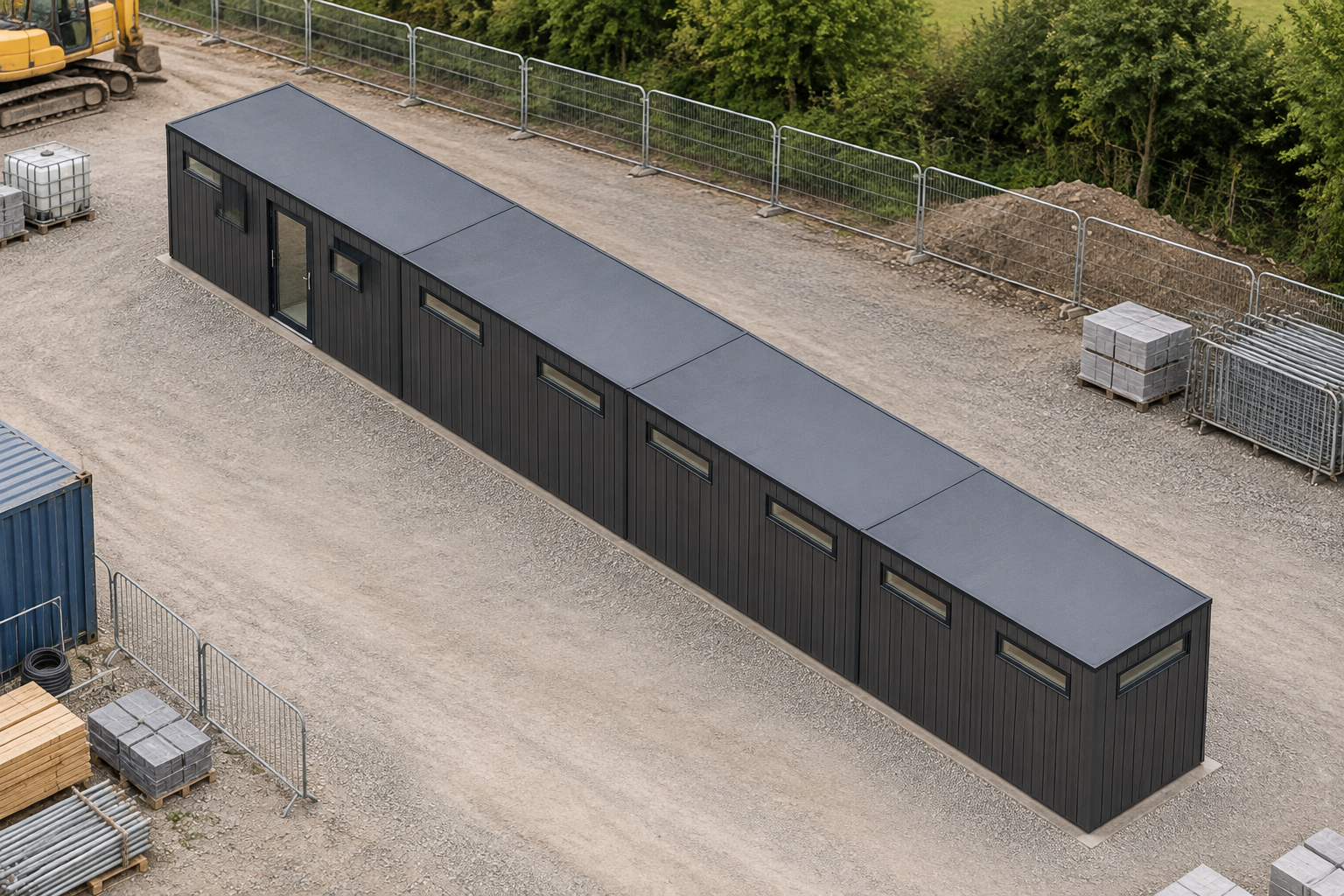

This single-storey toilet and shower block uses four linked P600 modules in a straight run. It suits large construction sites, holiday parks and campsites requiring a substantial modular amenities building.
£55,200ex VAT
£66,240 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Approx. usable internal area
- 45.6 m² before partitions
- External dimensions
- 23.6m x 2.2m footprint
Design highlights
- Four linked P600 modules in a single-storey run
- 23.6m x 2.2m external footprint
- Approximately 45.6m² usable internal area before partitions
- Anthracite ARLINE AR16016 vertical grooved plank cladding
- Single glazed door with small and high-level windows
- WC and shower fit-out requested, subject to layout confirmation
- Flat roof with approximately 120mm steel-frame fascia
Four-module run layout
This configuration links four P600 steel-framed modules in a single-storey run, creating an external footprint of 23.6m x 2.2m. The approximate usable internal area before partitions is 45.6m², based on a conservative per-module allowance. Connected open layouts may provide more space, depending on the final partition arrangement.
Each module measures 5.9m x 2.2m externally and is 2.40m high, with a 2.16m internal ceiling. Its approximate usable interior is 5.7m x 2.0m. The long, narrow format supports a linear arrangement of WC, shower and circulation spaces, with the requested fit-out to be confirmed in the final room layout.
Windows and access
Module 1 has two high-level, top-only windows on its north wall. Its south wall contains two small windows and one single glazed door, while the exposed west end has one high-level, top-only window. This is the only external door specified in the stored configuration.
Modules 2 and 3 each have two high-level, top-only windows on both their north and south walls. Module 4 also has two high-level, top-only windows on each long wall, plus one high-level, top-only window on its exposed east end. These openings are specific to this four-module arrangement.
Anthracite external finish
All exposed walls are finished between the frame with Anthracite ARLINE AR16016 grooved plank cladding. The boards are applied vertically across the north and south elevations, the west end of Module 1 and the east end of Module 4. Above, the building has a flat roof with an approximately 120mm steel-frame fascia and no additional fascia.
Requested WC and shower fit-out
The requested internal fit-out includes a WC and shower, with their positions and the final partition layout subject to confirmation. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels available as an optional selection. Shower rooms use wet-room PVC flooring.
Elsewhere, insulated sandwich panels are the included internal wall finish. Other finishes are selected to suit the confirmed room arrangement. Where chosen, plaster applies to walls outside bathroom areas. Further information on this application is available under toilet and shower blocks.
Estimate and site requirements
The indicative configured estimate is £55,200 excluding VAT, or £66,240 including VAT, and remains subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate from the configured estimate.
Final siting is subject to a site survey and confirmation of access, ground conditions and project requirements. The stored arrangement can be reviewed through the building configurator, but final dimensions, room divisions, fittings and selected finishes will be confirmed in the quotation.
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 45.6 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level). Module 3 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level). Module 4 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); east (2.2m end): Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level). Requested fit-out to confirm in the final layout: WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
