Secure Storage Units

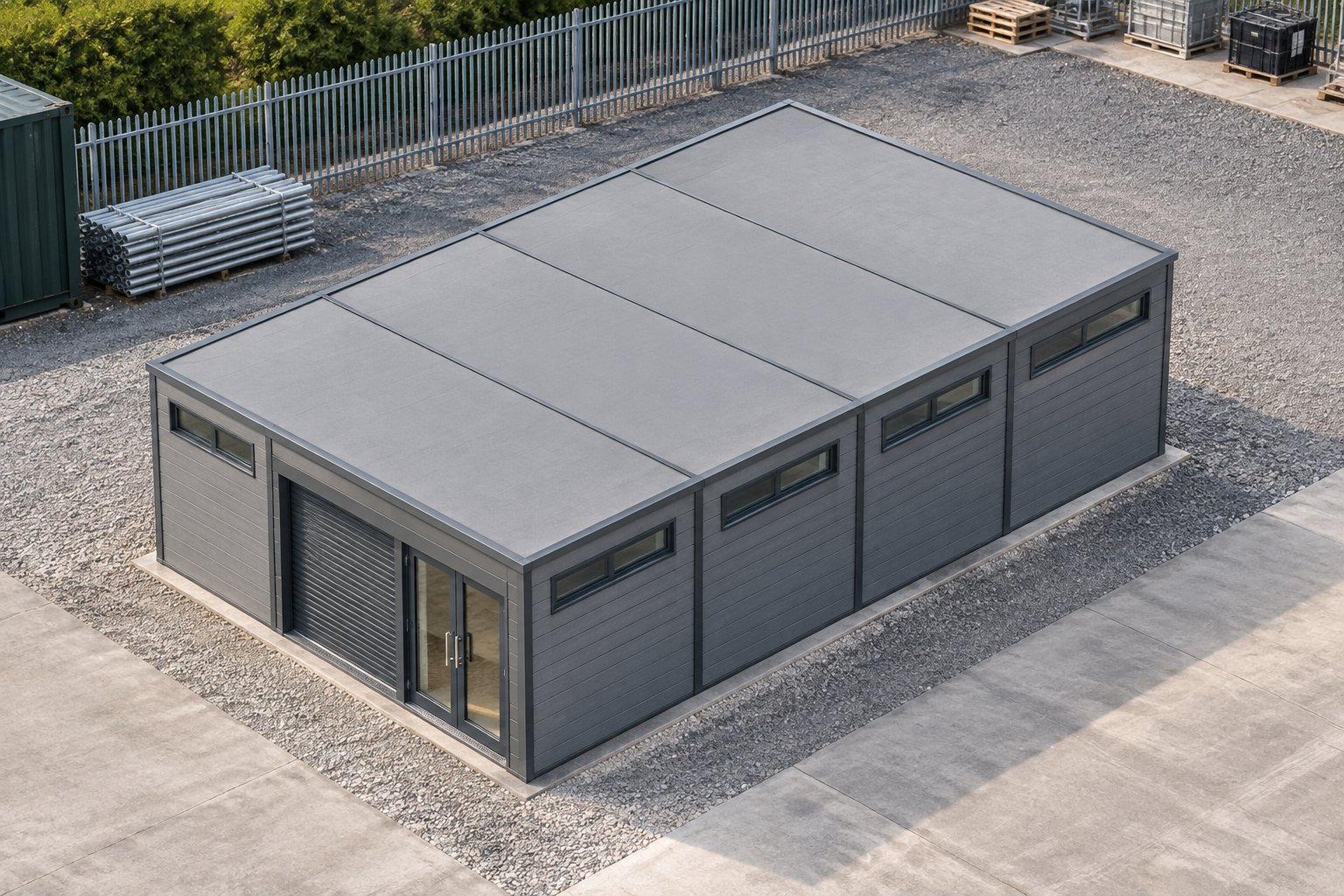

4-Module Secure Storage Unit with Roller Shutter
This single-storey secure storage unit combines four P600 modules in a wide 5.9m x 8.8m layout. It suits contractors, tradespeople and businesses requiring secure lock-up space for construction-related storage.
£54,000ex VAT
£64,800 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Floor area
- 46 m²
- Footprint
- 5.9m x 8.8m footprint
Design highlights
- Four P600 modules in a single-storey wide layout
- 5.9m x 8.8m footprint
- Approximately 46 m² internal usable floor area
- Full-size roller shutter and double-leaf glazed door
- Ten top-only high-level windows
- Grey AR16016 Smooth plank cladding on exposed walls
- Flat roof with approximately 120mm steel-frame fascia
Practical storage for construction businesses
This P600 configuration provides approximately 46 m² of internal usable floor area for equipment, materials and trade storage. Designed for the construction sector, it combines four steel-framed modules in a single-storey, wide arrangement suited to contractors, tradespeople and businesses needing dedicated lock-up space.
Four-module wide layout
The four modules are arranged side by side to create an overall footprint of 5.9m x 8.8m. Each module measures 5.9m x 2.2m externally and is 2.40m high, with an internal ceiling height of 2.16m. The approximate usable interior of each module is 5.7m x 2.0m.
- Four P600 modules
- Single-storey configuration
- 5.9m x 8.8m overall footprint
- Approximately 46 m² internal usable floor area
The final internal room layout determines the flooring selection. Further room-layout and finish decisions are recorded through the configuration process.
Access and window arrangement
Module 1 provides the principal access points on its exposed north wall: one full-size roller shutter and one double-leaf glazed door. Its east and west end walls each have one top-only high-level window.
Modules 2 and 3 each have one top-only high-level window in both their east and west end walls. Module 4 also has one high-level window at each end, together with two top-only high-level windows on its exposed south wall. This makes ten high-level windows across the complete configuration.
Grey smooth-plank exterior
The selected exposed perimeter walls are finished with Smooth plank cladding, reference AR16016, in Gri (Grey), applied between the visible frame. This finish is specified on Module 1’s north, east and west walls; the east and west walls of Modules 2 and 3; and Module 4’s east, south and west walls.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia has been selected. Final fixture, finish and colour details are confirmed by quotation.
Internal finish
No wet fit-out has been requested for this storage configuration. Included internal walls use white, lightly ribbed insulated sandwich panels. Plasterboard and hygienic wall panels are available as optional alternatives, while the precise floor finish remains subject to the confirmed room layout and quotation.
Configured estimate and siting
The indicative configured estimate is £54,000 excluding VAT, or £64,800 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Final siting is subject to a site survey and confirmation of access, ground conditions and project requirements. The quotation will confirm the final specification, finishes, transport requirements and any site-related costs applicable to this four-module building.
Full specification
4 P600 modules (single storey), wide layout, 5.9m x 8.8m footprint, approx 46 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: Smooth plank (AR16016) applied to exposed walls between the frame in Gri (Grey). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 1 East wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 1 West wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 2 East wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 2 West wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 3 East wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 3 West wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 4 East wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 4 South wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 4 West wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016). Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Roller shutter (full size) + Glazed door (double); east (2.2m end): Top-only window (high level); west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — east (2.2m end): Top-only window (high level); west (2.2m end): Top-only window (high level). Module 3 P600 (ground floor) exposed walls — east (2.2m end): Top-only window (high level); west (2.2m end): Top-only window (high level). Module 4 P600 (ground floor) exposed walls — east (2.2m end): Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level); west (2.2m end): Top-only window (high level). No wet fit-out requested. Included internal walls are white lightly ribbed insulated sandwich panels; plasterboard and hygienic panels are optional. Flooring is selected for the final room layout.
