4-Module Secure Storage Unit with Roller Shutter

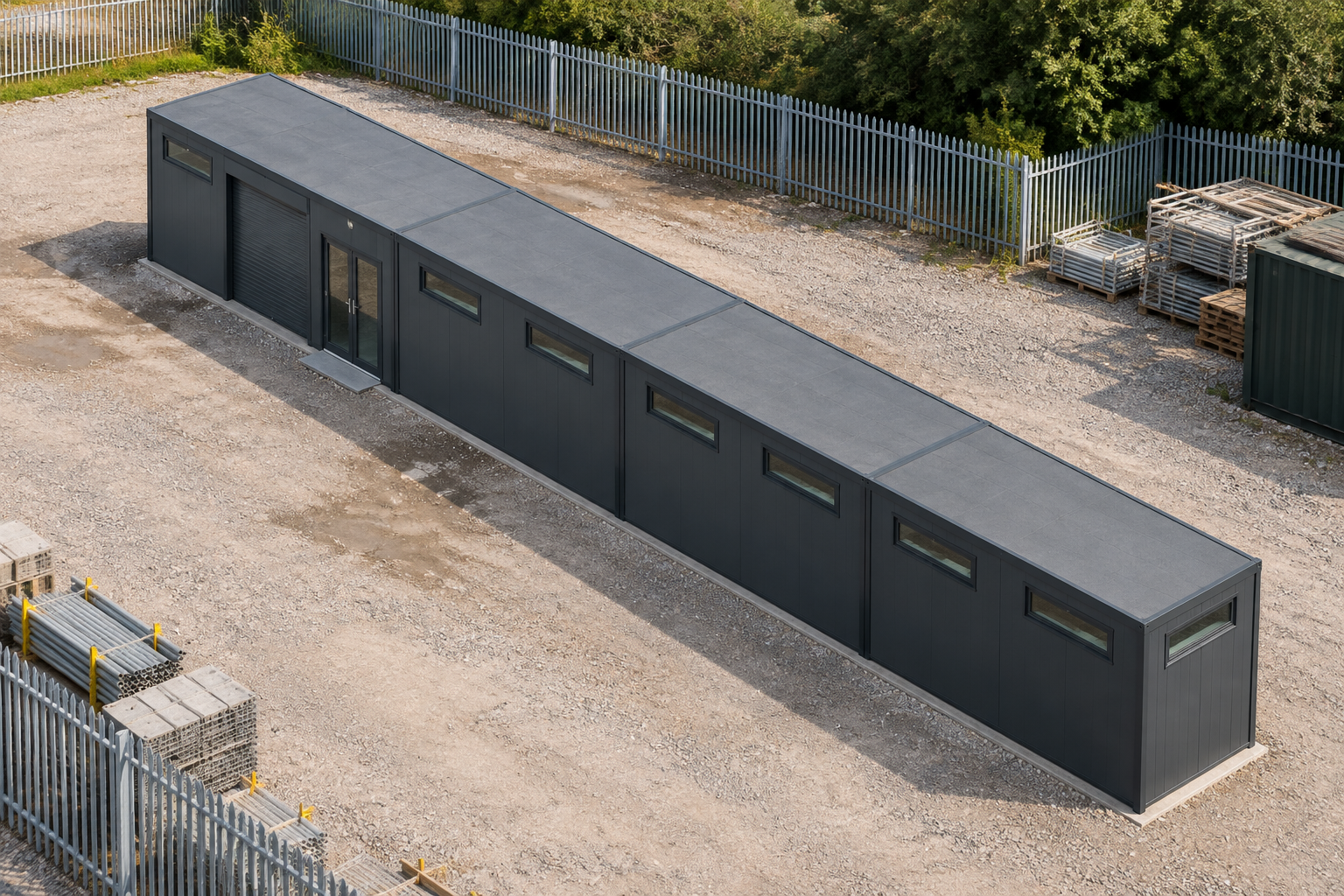

This single-storey secure storage unit links four P600 modules in a 23.6m run, providing approximately 46m² of usable internal floor area. It suits contractors, tradespeople and businesses needing lock-up space for construction-related storage.
£51,600ex VAT
£61,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Floor area
- 46 m²
- Footprint
- 23.6m x 2.2m footprint
Design highlights
- Four P600 modules in a single-storey run
- 23.6m x 2.2m overall footprint
- Approximately 46m² usable internal area
- Full-size roller shutter and glazed double door
- High-level top-only windows
- Smooth RAL 7016 insulated external panels
- White lightly ribbed insulated internal panels
Single-storey run configuration
This steel-framed secure storage unit comprises four P600 modules linked in a straight, single-storey run. The complete footprint is 23.6m x 2.2m, with approximately 46m² of internal usable floor area. Each module measures 5.9m x 2.2m externally and is 2.40m high, with an internal ceiling height of 2.16m and an approximate usable interior of 5.7m x 2.0m.
The end-to-end arrangement creates a long storage configuration for contractors, tradespeople and businesses in the construction sector. It is intended as secure lock-up space, with the final room arrangement and flooring confirmed as part of the quotation.
Doors, shutter and high-level windows
Module 1 has two high-level top-only windows on its north side. Its south side contains one full-size roller shutter and one glazed double door, while the exposed west end has a further high-level top-only window.
Modules 2 and 3 each have two high-level top-only windows on the north side and two on the south side. Module 4 follows the same north and south window arrangement, with two high-level top-only windows on each side, plus one high-level top-only window in its exposed east end.
External and internal finishes
The included exterior uses vertical insulated sandwich panels in Anthracite Grey, RAL 7016. All selected exposed north, south, west and east walls use smooth standard insulated panels in this colour. The building has a flat roof with an approximately 120mm steel-frame fascia; no additional fascia is included in this configuration.
Inside, the included internal walls are finished with white, lightly ribbed insulated sandwich panels. Plasterboard and hygienic wall panels are optional alternatives rather than included selections. No wet fit-out has been requested, so this design does not include a specified WC, shower, sink or other wet-room provision. Flooring is selected to suit the final agreed room layout and is not specified in the stored design.
Configuration summary
- Four P600 modules linked in one straight, single-storey run
- 23.6m x 2.2m overall footprint
- Approximately 46m² of usable internal floor area
- Full-size roller shutter and glazed double door to Module 1
- High-level top-only windows across the exposed elevations
- Anthracite Grey smooth insulated-panel exterior
Price and site requirements
The indicative configured estimate is £51,600 excluding VAT, or £61,920 including VAT, subject to quotation and confirmation through the building configurator. Final details, including flooring and any optional internal finishes, are confirmed by quotation rather than guaranteed from illustrations.
Transport is priced separately according to the site postcode and access conditions. Offloading or cranage, groundworks and other site-specific works are also separate. Siting remains subject to survey, including checks on access, ground conditions and the practical requirements for positioning the full 23.6m-long configuration.
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 46 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Anthracite Grey (RAL 7016). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 1 South wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 1 West wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 2 North wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 2 South wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 3 North wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 3 South wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 4 North wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 4 East wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 4 South wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); south (5.9m side): Roller shutter (full size) + Glazed door (double); west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level). Module 3 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level). Module 4 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); east (2.2m end): Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level). No wet fit-out requested. Included internal walls are white lightly ribbed insulated sandwich panels; plasterboard and hygienic panels are optional. Flooring is selected for the final room layout.
