4-Module P600 Modular Toilet Block
This single-storey modular toilet block combines four P600 modules in a straight 23.6m run with approximately 46m² of usable internal space. It suits construction sites, events and sports grounds requiring permanent WC provision.
£55,200ex VAT
£66,240 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Floor area
- 46 m²
- Footprint
- 23.6m x 2.2m footprint
Design highlights

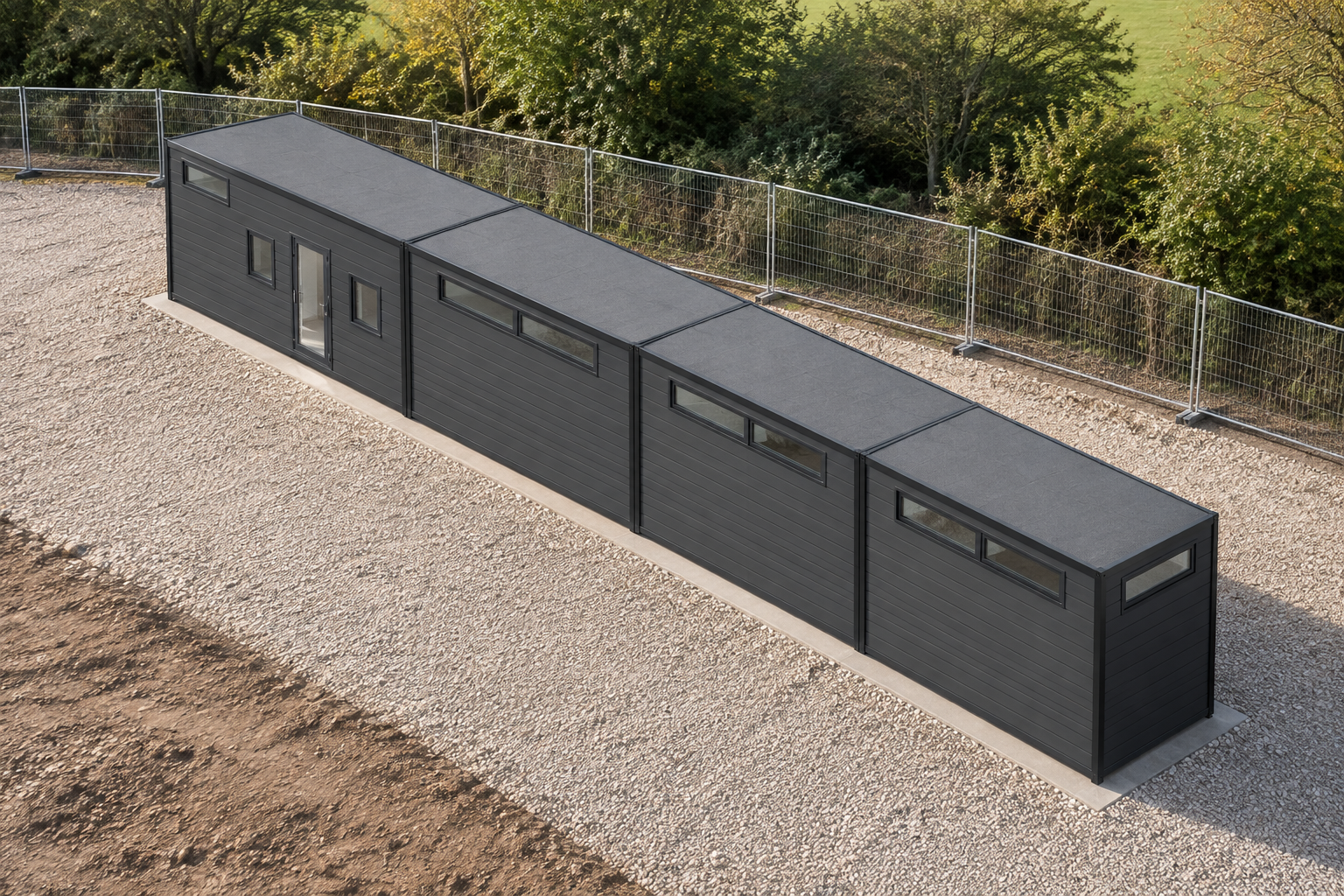

- Four P600 modules in a straight, single-storey run
- 23.6m x 2.2m overall footprint
- Approximately 46m² usable internal floor area
- Anthracite AR16016 Smooth plank cladding to exposed walls
- Single glazed entrance door with two small windows
- High-level top-only windows across the exposed elevations
- Flat roof with approximately 120mm steel-frame fascia
Four-module run configuration
This P600 scheme uses four steel-framed modules linked in a straight, single-storey run. The resulting footprint is 23.6m long by 2.2m wide, with an approximate usable internal floor area of 46m². Each individual module measures 5.9m by 2.2m externally and is 2.40m high, with an internal ceiling height of 2.16m.
Each module provides an approximate usable interior of 5.7m by 2.0m. The linked arrangement creates a long, narrow building suited to an organised WC layout, subject to confirmation of the final room plan, sanitary provision and internal circulation.
Windows and entrance
Module 1 forms the western end of the run. Its north wall has a top-only high-level window, while its south wall includes a single glazed door positioned with a small window on either side. The exposed west end wall also has a top-only high-level window.
Modules 2 and 3 each have top-only high-level windows on their exposed north and south walls. Module 4 has top-only high-level windows on its north and south walls, together with another on the exposed east end wall. These are the openings stored for this exact configuration; final details are confirmed by quotation.
Anthracite external finish
All exposed outside walls are specified with full-wall Smooth plank cladding in Antrasit (Anthracite), reference AR16016, applied between the frame. This covers the north and south walls throughout the four-module run, the west end of Module 1 and the east end of Module 4. Cladding costs are quote-only and are not itemised in this public description.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified for this configuration.
Requested WC fit-out
A WC is requested for the final layout, but its room arrangement and sanitary fit-out remain subject to confirmation. Toilet or shower rooms require hygienic wall panels and wet-room PVC flooring. The exact WC specification, partition positions, fixtures and associated details will therefore be established through the final quotation rather than assumed from illustrative material.
Outside toilet or shower rooms, the included internal wall finish is white, lightly ribbed insulated sandwich panels. Plasterboard and other hygienic-panel styles are selectable alternatives or upgrades. Room-by-room flooring choices have not been fixed in the stored design and must also be confirmed before quotation.
Application and indicative estimate
Configured as a modular toilet block for the construction sector, this building is relevant to sites, event locations and sports grounds requiring permanent WC provision. Its linear footprint may suit locations where available width is limited, subject to the proposed layout and site conditions.
The indicative configured estimate is £55,200 excluding VAT, or £66,240 including VAT, subject to quotation. This figure relates to the stored four-module configuration and should not be treated as a final project price.
Transport is priced separately according to postcode and access. Offloading or cranage, groundworks and other site-specific works are also separate. Siting remains subject to survey, including access, levels, ground conditions, service requirements and the practical constraints of the intended location. Any configuration choices are finalised through the building configurator and quotation process.
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 46 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: Smooth plank (AR16016) applied to exposed walls between the frame in Antrasit (Anthracite). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 1 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 1 West wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 2 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 2 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 3 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 3 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 4 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 4 East wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 4 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016). Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); south (5.9m side): Top-only window (high level). Module 3 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); south (5.9m side): Top-only window (high level). Module 4 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); east (2.2m end): Top-only window (high level); south (5.9m side): Top-only window (high level). Requested fit-out to confirm in the final layout: WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
