Modular Toilet Blocks

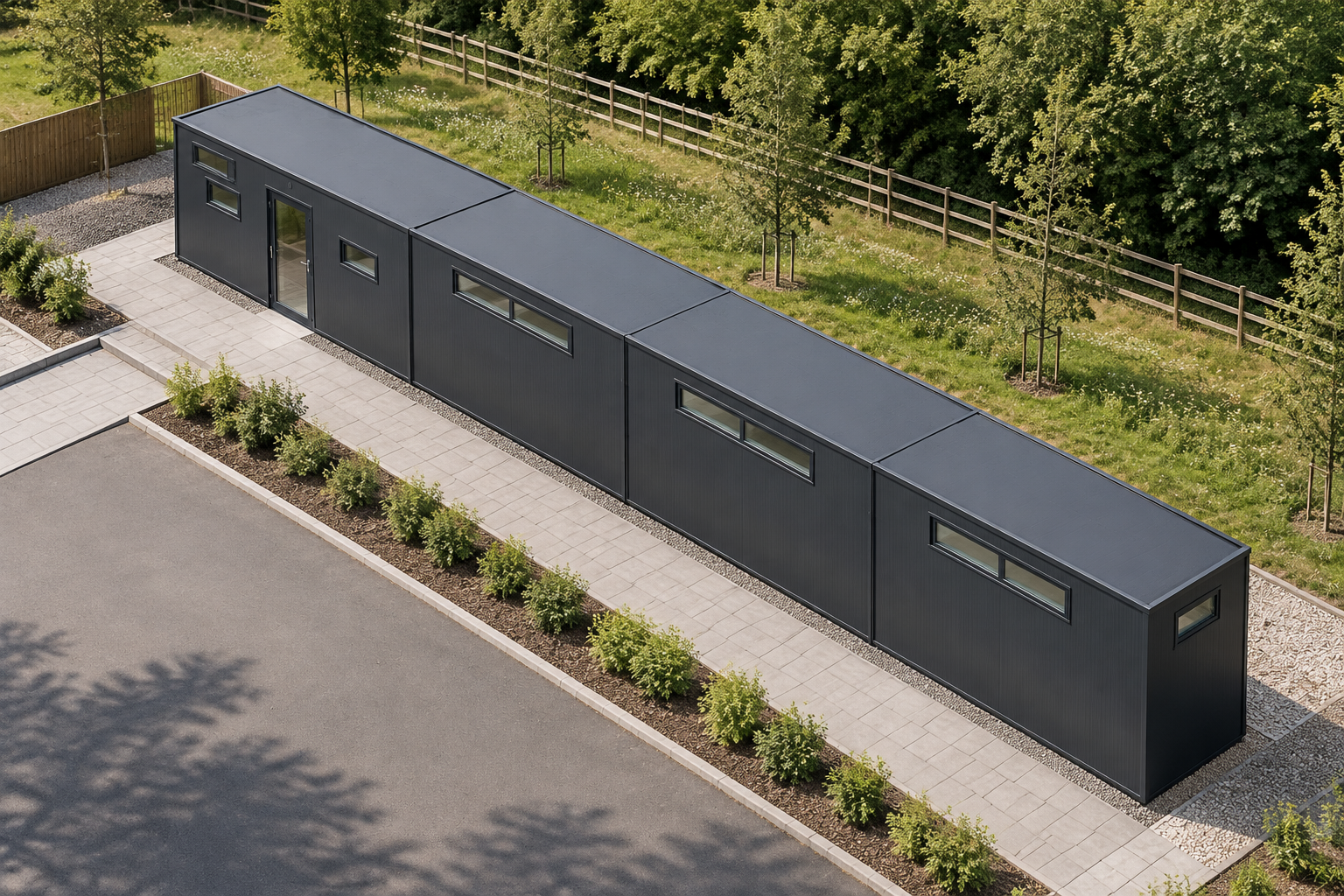

4-Module Modular Toilet Block with WC
This single-storey P600 modular toilet block combines four modules in a straight run, with a WC fit-out requested for confirmation in the final layout. It suits construction sites, events and sports grounds requiring permanent WC provision.
£51,600ex VAT
£61,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Approx. usable internal area
- 45.6 m² before partitions
- External dimensions
- 23.6m x 2.2m footprint
Design highlights
- Four P600 modules in a single-storey run
- 23.6m x 2.2m external footprint
- Approximately 45.6m² usable internal area before partitions
- Smooth Black Grey RAL 7021 insulated external panels
- Single glazed entrance door with small windows
- High-level windows distributed across the exposed walls
- WC fit-out requested for final layout confirmation
Configuration overview
This building uses four steel-framed P600 modules arranged in a single-storey run. Each module measures 5.9m x 2.2m, creating an overall external footprint of 23.6m x 2.2m. The configuration provides approximately 45.6m² of usable internal area before partitions, based on a conservative per-module allowance. A connected open layout may provide more usable space, depending on the final room arrangement.
Each module is 2.40m high externally and has a 2.16m internal ceiling. The approximate usable interior of each module is 5.7m x 2.0m. This format is configured as one of Adacon’s modular toilet blocks for permanent WC provision in the construction sector and at event or sports-ground sites.
External envelope and roof
The included external finish uses vertical insulated sandwich panels in Black Grey, RAL 7021. The selected exposed north, south, east and west walls use standard insulated panels with a smooth finish in the same colour. The building has a flat roof with an approximately 120mm steel-frame fascia; no additional fascia is included in this configuration.
Windows and entrance
The stored design distributes high-level windows along the run while placing the glazed entrance in Module 1. The specified openings are:
- Module 1 north side: one top-only high-level window.
- Module 1 south side: one small window, one single glazed door and a second small window.
- Module 1 west end: one top-only high-level window.
- Module 2 north and south sides: one top-only high-level window on each side.
- Module 3 north and south sides: one top-only high-level window on each side.
- Module 4 north and south sides: one top-only high-level window on each side.
- Module 4 east end: one top-only high-level window.
Requested internal fit-out
A WC has been requested, with the final position, partition arrangement and detailed fit-out to be confirmed in the completed layout and quotation. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, while hygienic panels are available as an optional selection. Plaster can be selected outside bathroom walls where required.
Elsewhere, insulated sandwich panels are the included wall finish. Any alternative internal wall or floor finishes depend on the final room layout and selections. Shower rooms are not specified in the stored design; if one is added during final planning, wet-room PVC flooring is used for that area. Illustrated fixtures and finishes should not be treated as confirmed unless listed in the final quotation. Layout details can be reviewed through the building configurator.
Estimate and site requirements
The indicative configured estimate is £51,600 excluding VAT, or £61,920 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Final siting is subject to a site survey and confirmation of access, ground conditions and project requirements. The quotation will confirm the completed WC layout, selected finishes and the precise scope supplied for this four-module configuration.
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 45.6 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Black Grey (RAL 7021). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 West wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 2 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 2 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 3 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 3 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 4 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 4 East wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 4 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); south (5.9m side): Top-only window (high level). Module 3 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); south (5.9m side): Top-only window (high level). Module 4 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); east (2.2m end): Top-only window (high level); south (5.9m side): Top-only window (high level). Requested fit-out to confirm in the final layout: WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
