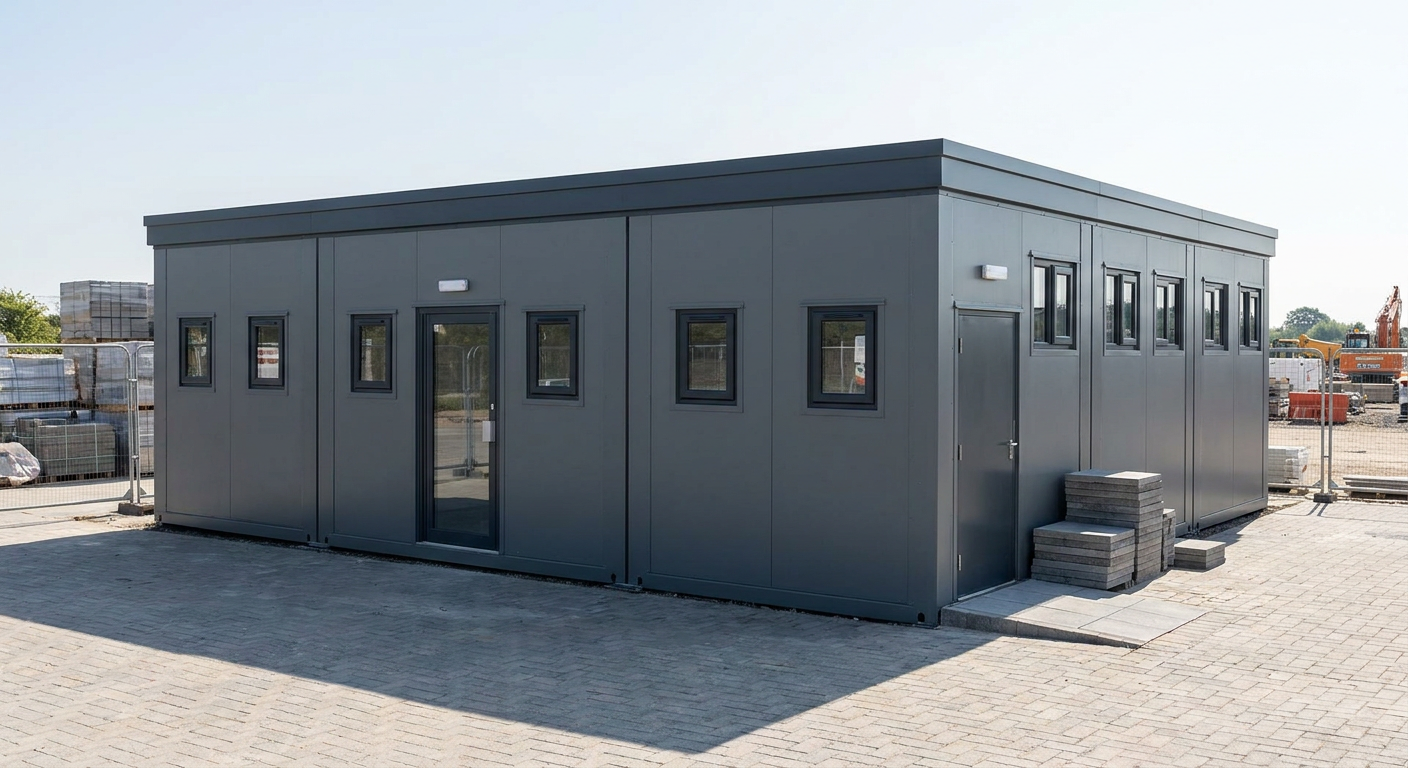

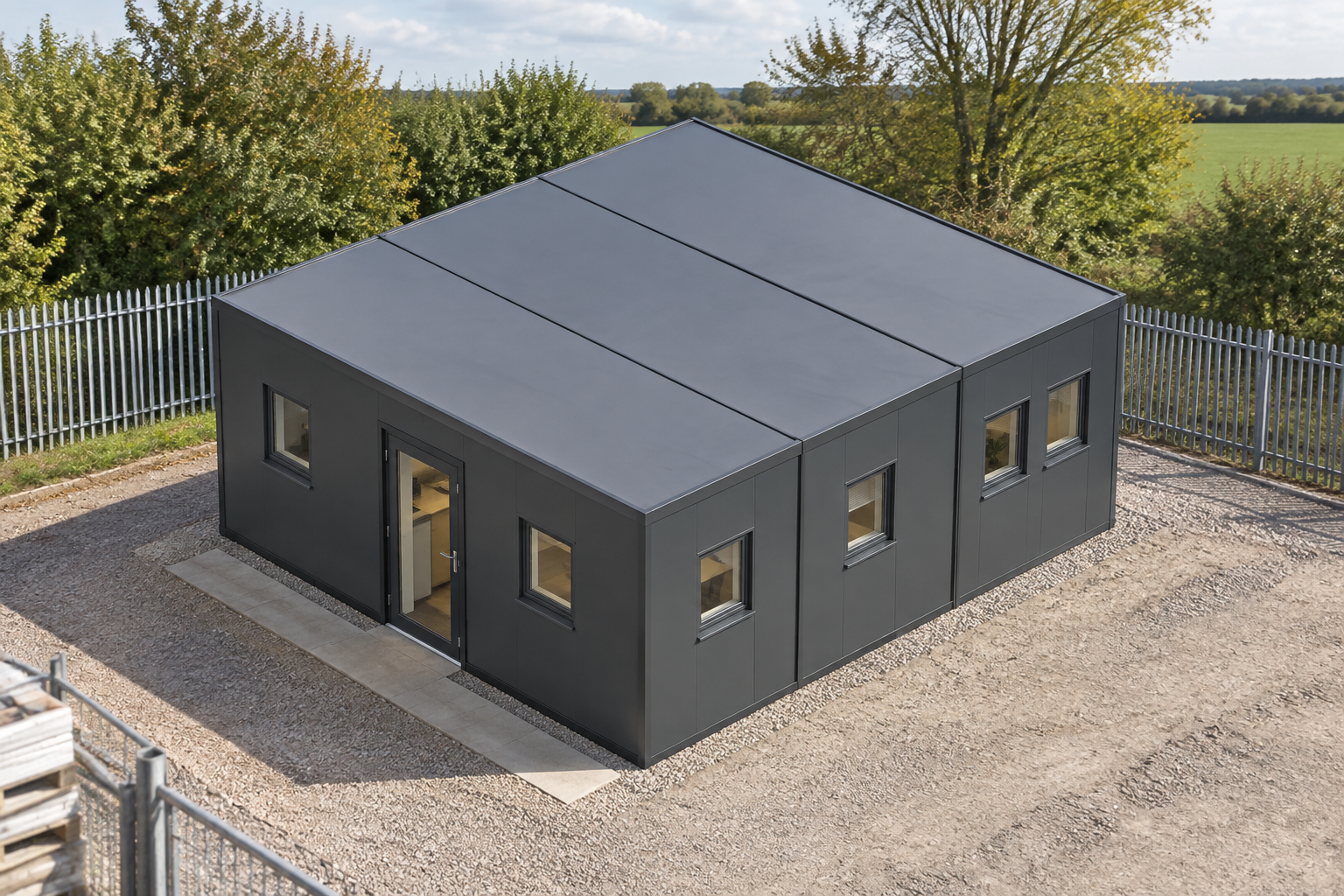

Three-module single-storey building with dark grey cladding, glazed door and small windows, Adacon P600 modular building — Three-module P600 site office for main contractors and site managers in the construction sector.

Site Offices

3-Module Site Office with Kitchenette and WC

This single-storey P600 site office combines three modules to provide approximately 37 m² of fitted internal space, including a kitchenette and WC. It is a practical option for main contractors and site managers who need a dedicated office for a construction site.

£32,250ex VAT

£38,700 inc VAT · standard fitted specification. Delivery, groundworks and site-specific works quoted separately.

Configure this design Request a quote

Modules: 3
Storeys: 1
Floor area: 37 m²
Footprint: 5.9m x 6.6m footprint

What's included

Three linked P600 modules
Single-storey 5.9m x 6.6m footprint
Approximately 37 m² internal floor area
One glazed entrance door and 17 small windows
Kitchenette and WC included
Smooth Dark grey exterior cladding
Flat roof with slim fascia

A practical office for construction sites

This configuration uses three P600 modules linked side by side to create a wide, single-storey building with a 5.9m x 6.6m footprint. The approximate internal floor area is 37 m², providing a substantial working base for site management without requiring a two-storey installation.

Designed for the construction sector, it suits main contractors and site managers who need a clearly defined place for day-to-day administration, meetings and site coordination. It forms part of Adacon’s range of modular site offices and is supplied as a fitted building rather than an empty shell.

Three-module layout

Module 1 forms the north section of the building and contains the only external entrance. Its exposed north-facing 5.9m wall has a single glazed door positioned between two small windows. Both exposed 2.2m end walls also have two small windows: two on the east end and two on the west end. This gives the entrance section useful daylight from three directions.

Module 2 occupies the centre of the layout. Its long sides connect to the adjoining modules, while the exposed east and west ends each have two small windows. These four windows bring natural light into the central part of the office without adding another external doorway.

Module 3 forms the south section. Its exposed south-facing 5.9m wall contains three small windows. The east and west 2.2m end walls each contain a further two small windows. Across the complete building, the specified arrangement provides one glazed entrance door and 17 small windows.

The kitchenette and WC are incorporated within the internal fit-out. Their final arrangement supports the building’s intended use as a self-contained site office while retaining working space across the three connected modules. The precise fitted scope and internal plan are confirmed as part of the project quotation.

Exterior finish and roof

The exterior is finished in smooth Dark grey cladding, giving the office a clean, restrained appearance suitable for an active construction site. A flat roof with a slim fascia keeps the overall profile simple and compact. The building is single storey throughout, so no staircase or upper-level access is required.

Price and programme

The indicative price is £32,250 ex VAT, or £38,700 including VAT, for the standard fitted specification described here. This covers the configured three-module P600 building with its specified Dark grey exterior, glazed door, windows, kitchenette and WC. Delivery, groundworks and any site-specific works are quoted separately.

Typical lead time is 8–12 weeks. The final programme depends on specification confirmation, site conditions, delivery planning and the installation schedule. Buyers who need to review another arrangement can use the P600 configurator to compare module layouts and fitted options.

Siting requirements

The site must have a suitable prepared base for the 5.9m x 6.6m footprint, together with sufficient access for delivery and installation. Ground conditions, levels, access restrictions and required service connections should be assessed before the installation date. Groundworks and other site-specific requirements are not included in the indicative building price and are costed separately.

Allow for the complete building footprint and installation working area.
Provide suitable delivery access to the intended position.
Confirm ground preparation and service requirements before installation.

Full specification

3 P600 modules (single storey), wide layout, 5.9m x 6.6m footprint, approx 37 m2 internal floor area.
Exterior: smooth cladding in Dark grey. Roof: flat roof with slim fascia.
Module 1 (ground floor) exposed walls — north (5.9m side): Small window + Glazed door (single) + Small window; east (2.2m end): Small window + Small window; west (2.2m end): Small window + Small window.
Module 2 (ground floor) exposed walls — east (2.2m end): Small window + Small window; west (2.2m end): Small window + Small window.
Module 3 (ground floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Small window + Small window + Small window; west (2.2m end): Small window + Small window.
Internal fit-out includes: kitchenette, WC.
