Site Offices
3-Module P600 Site Office with Kitchenette and WC
This single-storey P600 site office combines three modules in a straight run, with a requested kitchenette and WC. It is configured for main contractors and site managers who need a practical office base for a construction site.
£38,700ex VAT
£46,440 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 3
- Storeys
- 1
- Approx. usable internal area
- 34.2 m² before partitions
- External dimensions
- 17.7m x 2.2m footprint
Design highlights
- Three P600 modules in a single-storey run
- 17.7m x 2.2m external footprint
- Approximately 34.2m² usable internal area before partitions
- Black Grey RAL 7021 smooth insulated-panel exterior
- Single glazed entrance with multiple window openings
- Kitchenette and WC requested for the final layout
- Flat roof with approximately 120mm steel-frame fascia

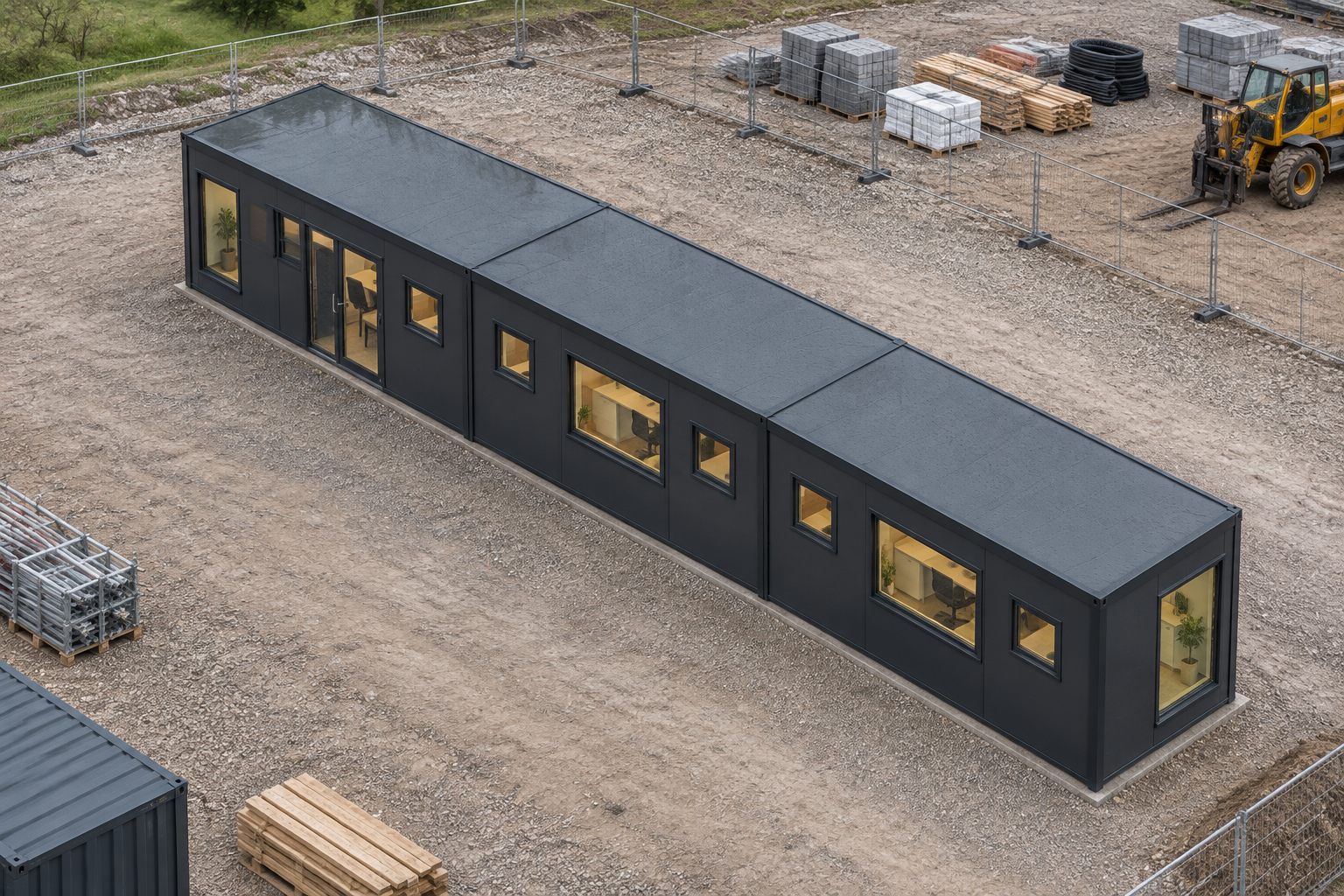

Three modules in a straight run
This P600 configuration uses three steel-framed modules linked side by side in a single-storey run. The resulting external footprint is 17.7m x 2.2m. Each module measures 5.9m x 2.2m externally, with an external height of 2.40m and an internal ceiling height of 2.16m.
Using a conservative allowance of approximately 5.7m x 2.0m per module, the building provides approximately 34.2m² of usable internal area before partitions. A connected open layout may provide more usable space, depending on the final internal arrangement. This long, narrow format is suited to site-office functions such as desks, meetings, document storage and day-to-day project administration.
Configured doors and windows
Module 1 forms one end of the run. Its exposed north wall has a small window, a large window and a second small window. The south wall has a small window, a single glazed door and another small window, while the exposed west end has a large window.
Module 2 sits centrally. Both its exposed north and south walls are configured with a small window, a large window and a second small window. Module 3 completes the opposite end of the run, with the same small, large and small window arrangement on both long elevations. Its exposed east end also has a large window.
Together, these openings are intended to bring daylight into the linked office accommodation while providing a glazed entrance on the south elevation of Module 1. Final opening details and the complete internal plan are confirmed by quotation.
Black Grey insulated-panel exterior
The included exterior uses vertical insulated sandwich panels in Black Grey, RAL 7021. The selected exposed north, south, west and east walls use standard insulated panels with a smooth finish, according to their position within the three-module run.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is selected for this configuration, maintaining the restrained profile of the standard roof edge.
Requested internal fit-out
A kitchenette and WC have been requested for the final layout. Their positions, dimensions, services and associated partitions remain subject to confirmation. Elsewhere, insulated sandwich panels are the included internal wall finish, with other finishes selected to suit the final room arrangement.
Where bathroom walls are required, the standard specification uses 40mm waterproof insulated sandwich panels, with hygienic panels available as an option. Plaster can be applied outside bathroom walls when selected. Wet-room PVC flooring applies to shower rooms; a shower room is not included in this stored configuration. All illustrated or discussed fixtures and finishes remain subject to the final quotation.
Construction-site use and siting
Designed as a site office for the construction sector, this configuration is relevant to main contractors and site managers seeking a dedicated project workspace. The stored arrangement can be reviewed through the P600 configurator, but the quoted design governs the final scope.
The indicative configured estimate is £38,700 excluding VAT, or £46,440 including VAT, subject to quotation. Transport is priced according to postcode and site access. Offloading or cranage, groundworks and other site-specific works are separate. Positioning and site requirements are subject to survey, with final details confirmed as part of the quotation.
Full specification
3 P600 modules (single storey), run layout, 17.7m x 2.2m footprint, approx 34.2 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Black Grey (RAL 7021). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 West wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 2 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 2 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 3 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 3 East wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 3 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Large window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; south (5.9m side): Small window + Large window + Small window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; east (2.2m end): Large window; south (5.9m side): Small window + Large window + Small window. Requested fit-out to confirm in the final layout: kitchenette, WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
