3-Module Modular Shop with WC

Configuration overview

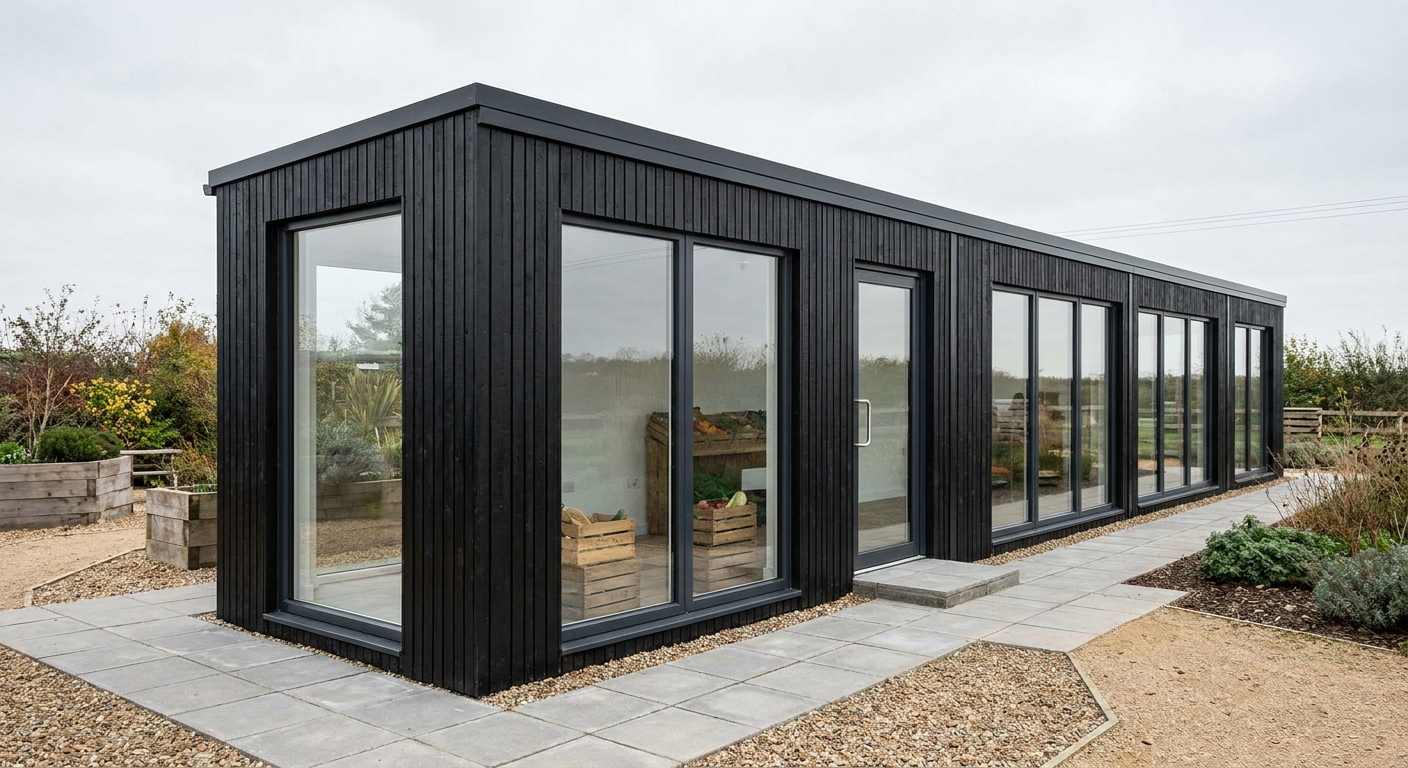

This P600 configuration uses three 5.9m x 2.2m steel-framed modules arranged in a straight run. The completed single-storey building has a footprint of 17.7m x 2.2m and provides approx. 34.20 m² usable internal area before partitions. It is designed as a practical modular shop for the Retail & Hospitality sector.

• Three linked P600 modules
• Single-storey run layout
• Approximately 37 m² internally
• WC included in the internal fit-out

Module-by-module layout

Module 1 forms the western end of the building. Its exposed north wall has two large windows. The south wall has a large window, a single glazed door and a second large window, providing the specified external entrance and a well-glazed customer-facing elevation. A full-size window fills the exposed west end.

Module 2 sits in the centre of the run. Both exposed long walls are arranged with two large windows: two facing north and two facing south. This central bay continues the consistent glazing pattern through the middle of the shop.

Module 3 forms the eastern end. Its north wall has two large windows, while its south wall also has two large windows. The exposed east end is finished with a full-size window, balancing the full-size west-end window in Module 1.

Customer access and natural light

The single glazed door is positioned on the south side of Module 1. Across the full configuration, twelve large windows and two full-size end windows give the shop extensive glazing on every exposed elevation. This provides clear outward views and useful daylight throughout the long, narrow floor plan.

External finish

The exterior is finished in black timber cladding, giving the building a clear, contemporary appearance suited to independent retail, farm-shop and pop-up settings. A flat roof with a slim fascia keeps the roofline restrained and consistent across all three connected modules.

Internal fit-out

The building is supplied to a full fit-out standard, with a WC included in this configuration. The three connected modules provide a straightforward retail footprint that can accommodate sales, display and customer circulation areas. Any site-specific service connections or additional fit-out requirements should be established before the order is finalised.

Indicative price

The indicative price is £38,700 excluding VAT, or £46,440 including VAT, for the standard fitted specification described here. Delivery covers the UK mainland and Northern Ireland, with transport quoted separately based on destination and access; offloading or cranage where required is separate. Requirements outside the stated configuration may also affect the final quotation. The same three-module arrangement can be reviewed through the P600 configurator.

Typical lead time

A typical lead time is 8–12 weeks. The confirmed programme depends on the final specification, order schedule and site readiness. Delivery and installation dates are agreed as part of the project planning process rather than assumed from the indicative lead time alone.

Siting requirements

The site must be prepared for the 17.7m x 2.2m footprint before delivery. Ground conditions, the required base or foundations, delivery access and the route to the final position all need to be assessed for the individual location. The WC also requires suitable site services and connections. Groundworks, service connections and other site-specific works are assessed and priced separately from the standard fitted building.
