Toilet & Shower Blocks
2-Module Toilet and Shower Block
This single-storey toilet and shower block combines two P600 modules in an 11.8m straight-run layout. It is configured for holiday parks, campsites and large construction sites requiring approximately 23m² of usable internal space.
£27,800ex VAT
£33,360 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 2
- Storeys
- 1
- Floor area
- 23 m²
- Footprint
- 11.8m x 2.2m footprint
Design highlights
- Two P600 modules in a single-storey straight run
- 11.8m x 2.2m overall footprint
- Approximately 23m² usable internal floor area
- Grey ARLINE AR16016 vertical grooved plank cladding
- Glazed double-door access with small side windows
- High-level, top-only windows across exposed elevations
- WC and shower fit-out requested for final layout confirmation

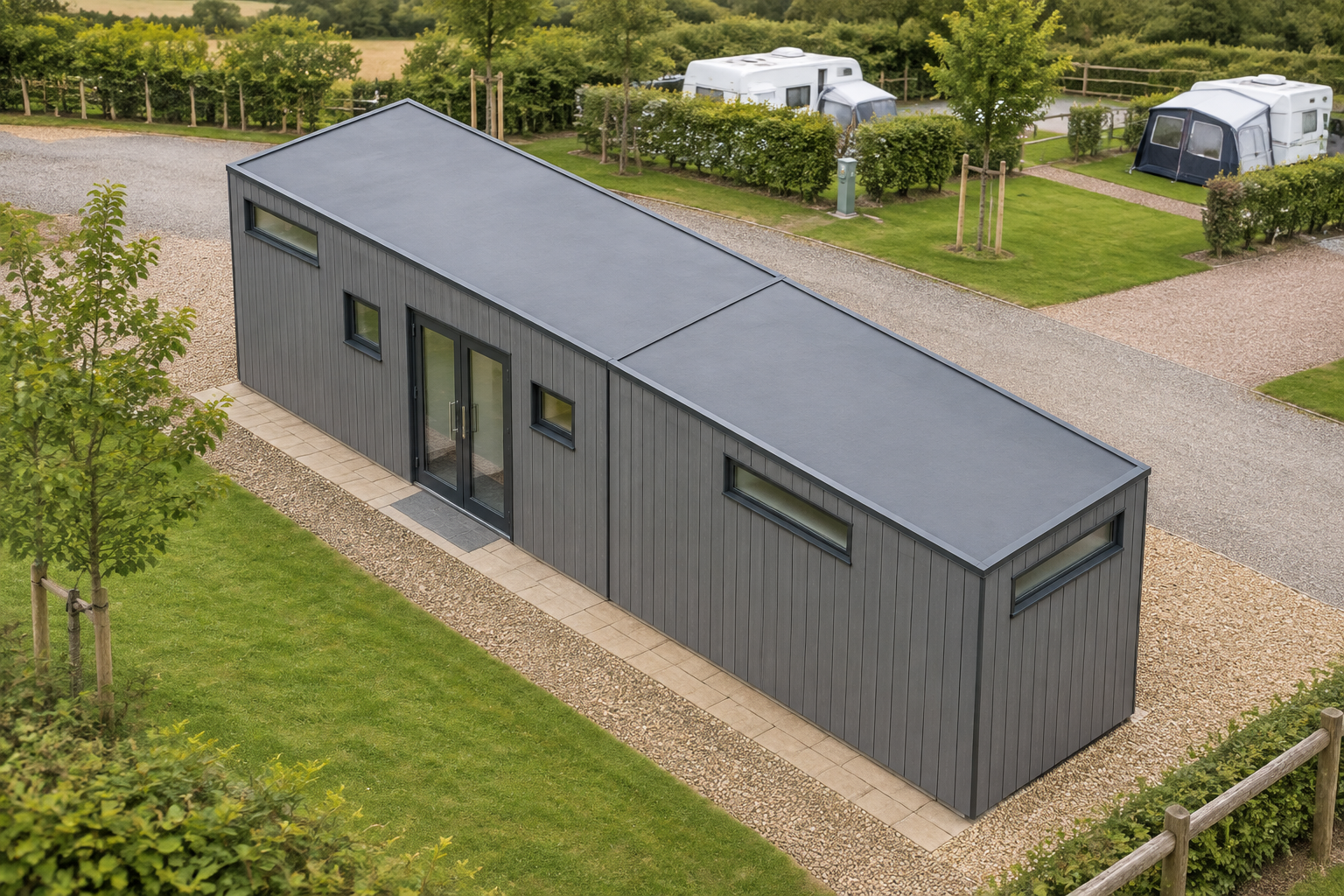

Two-module straight-run layout
This configuration uses two P600 steel-framed modules arranged as a single-storey run. Together, they create an overall footprint of 11.8m x 2.2m and provide approximately 23m² of internal usable floor area. Each module measures 5.9m x 2.2m, with an external height of 2.40m, an internal ceiling height of 2.16m and an approximate usable interior of 5.7m x 2.0m.
The building is configured as a toilet and shower block for the Construction sector, with potential applications at large construction sites, campsites and holiday parks. Its narrow linear footprint can suit sites where facilities need to be positioned alongside access routes, pitches or working areas, subject to the proposed location, access and site conditions. Further examples of this use can be found under toilet and shower blocks.
Openings and access
Module 1 has a high-level, top-only window on its north wall and another on the exposed west end. Its south wall contains a small window, glazed double doors and a second small window. Module 2 has high-level, top-only windows on the north wall, exposed east end and south wall. These are the stored openings for this configuration; their relationship with the WC and shower rooms will be confirmed through the final internal layout.
Grey grooved external finish
The exposed walls are finished between the frame with Grey ARLINE AR16016 grooved plank cladding. The boards are set vertically across the north and south walls of both modules, together with the exposed west end of Module 1 and east end of Module 2. The roof is flat and uses the approximately 120mm steel-frame fascia, without an additional fascia. Cladding is subject to quotation and is not separately itemised in public pricing.
Requested washroom fit-out
A WC and shower have been requested for this design, with their precise rooms, positions and servicing requirements to be confirmed in the final layout and quotation. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Final fixture and finish details are confirmed by quotation rather than assumed from illustrations.
Plasterboard, alternative hygienic-panel styles and room-by-room flooring selections are available as choices or upgrades; they are not included specifications for this stored design unless added to the quotation. The layout can be reviewed through the building configurator, with any selected changes assessed against the module arrangement, openings and intended washroom use.
Pricing, transport and siting
The indicative configured estimate is £27,800 excluding VAT, or £33,360 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate. Siting remains subject to survey, including checks on access, ground conditions, positioning and any project-specific requirements.
Full specification
2 P600 modules (single storey), run layout, 11.8m x 2.2m footprint, approx 23 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Grey. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 1 South wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 East wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 South wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); south (5.9m side): Small window + Glazed door (double) + Small window; west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); east (2.2m end): Top-only window (high level); south (5.9m side): Top-only window (high level). Requested fit-out to confirm in the final layout: WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
