2-Module P600 Modular Shop with Requested WC

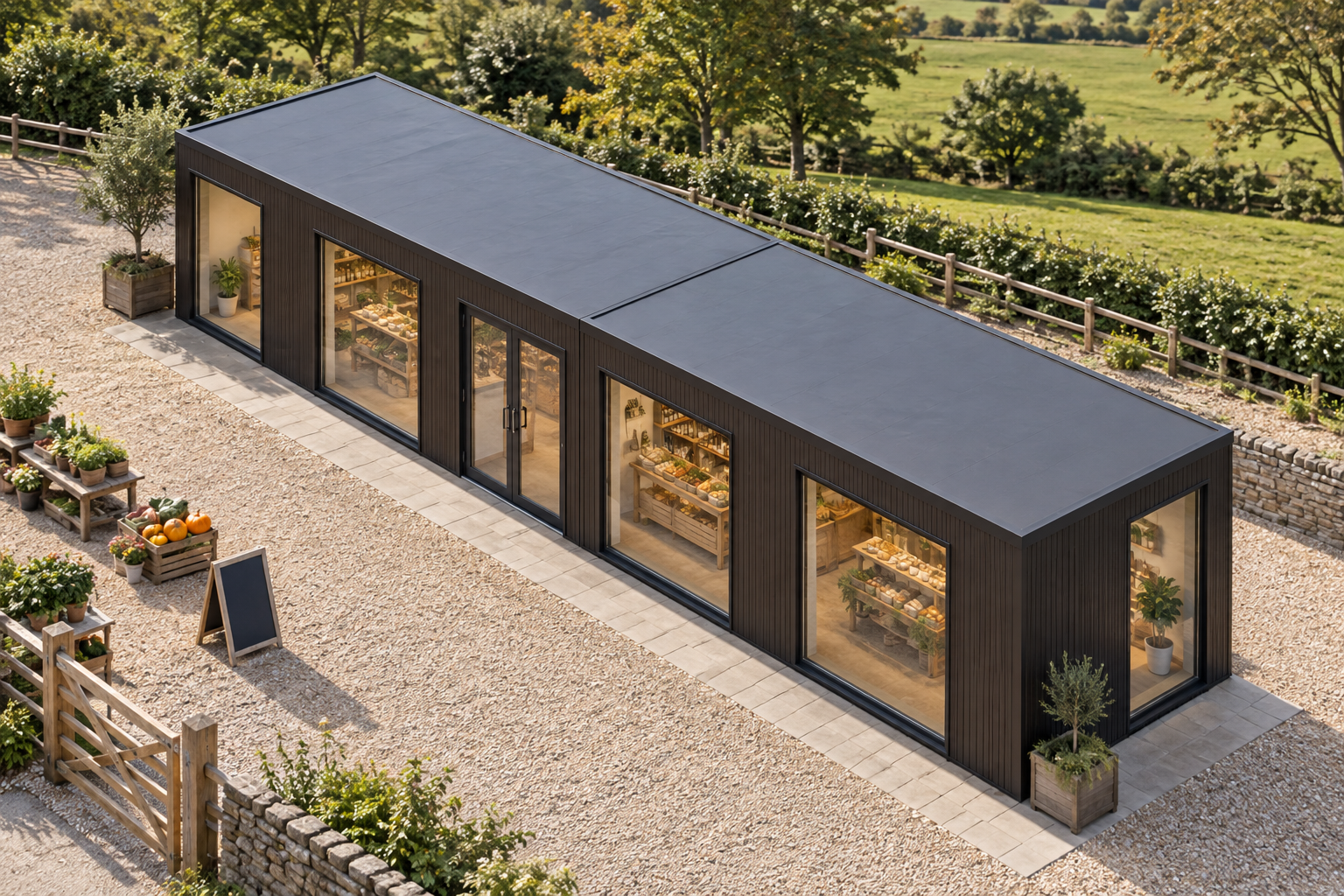

This single-storey modular shop combines two P600 modules in an 11.8m linear run with extensive glazing and Venge fine-ribbed cladding. It suits independent retailers, farm shops and pop-up operators seeking a compact, clearly defined retail space.
£27,800ex VAT
£33,360 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 2
- Storeys
- 1
- Approx. usable internal area
- 22.8 m² before partitions
- External dimensions
- 11.8m x 2.2m footprint
Design highlights
- Two P600 modules in a single-storey linear run
- 11.8m x 2.2m external footprint
- Approximately 22.8m2 usable internal area before partitions
- Venge ARLINE AR14514 vertical fine-ribbed cladding
- Multiple large and full-size windows with a double-door glazed entrance
- Requested WC subject to final layout confirmation
- Flat roof with approximately 120mm steel-frame fascia
A linear two-module retail layout
This configuration places two P600 steel-framed modules in a single-storey run, creating an external footprint of 11.8m x 2.2m. The approximate usable internal area is 22.8m2 before partitions, based on a conservative per-module allowance. Connected open layouts may provide more space, depending on the final connection and room plan.
Each module measures 5.9m x 2.2m externally and has an external height of 2.40m. The approximate usable interior of each module is 5.7m x 2.0m, with a 2.16m internal ceiling. The adjoining module ends form the linear arrangement, while the precise internal connection and any WC partitions are confirmed in the final layout.
Windows and entrance arrangement
Module 1 has two large windows on its north wall. Its south wall contains a large window, a double-door glazed entrance and a second large window, while the exposed west end has a full-size window.
Module 2 also has two large windows on its north wall. Its south wall contains two further large windows, and the exposed east end has a full-size window. This is the stored opening arrangement for this particular modular shop configuration.
Selected external finish
The exposed walls are finished between the frame in Venge ARLINE AR14514 fine-ribbed cladding, with the boards installed vertically. The selected treatment covers the north, south and west exposed walls of Module 1 and the north, east and south exposed walls of Module 2, fitted around the specified openings.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia has been selected. Cladding forms part of the configured quotation and is not separately itemised in public pricing.
Requested WC and internal finishes
A WC has been requested, with its position and complete fit-out to be confirmed as part of the final room layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, while hygienic panels are an optional alternative. Where plaster is selected, it applies outside the bathroom walls.
Elsewhere, insulated sandwich panels are the included internal wall finish. Any alternative finishes are selected to suit the confirmed room arrangement. Wet-room PVC flooring applies to shower rooms; no shower room is specified in this stored configuration, so this finish should not be assumed for the requested WC.
Configured estimate and site requirements
The indicative configured estimate is £27,800 excluding VAT, or £33,360 including VAT, subject to quotation and confirmation through the configuration process. Final details, fixtures and finishes are established in the quotation rather than guaranteed by illustrations.
Transport is priced separately according to the site postcode and access conditions. Offloading or cranage, groundworks and other site-specific works are also separate. Siting remains subject to a site survey, including assessment of access, levels, foundations or other ground requirements, and the practical positioning of the 11.8m x 2.2m building.
Full specification
2 P600 modules (single storey), run layout, 11.8m x 2.2m footprint, approx 22.8 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR14514 fine-ribbed applied to exposed walls between the frame in Venge. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 South wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 West wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 North wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 East wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 South wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; south (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Full-size window; south (5.9m side): Large window + Large window. Requested fit-out to confirm in the final layout: WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
